Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Catalytic Converter To Intermediate Muffler Nuts

Courtesy of GENERAL MOTORS CORP.

Install the catalytic converter gasket onto the catalytic converter.
Reposition the muffler assembly rearward until the catalytic converter can be installed.
Install the catalytic converter.

CAUTION: Refer to Fastener Caution .

Install the catalytic converter to intermediate muffler nuts (1) and tighten to 60 N.m (44 lb ft).
Remove the support from the exhaust system.

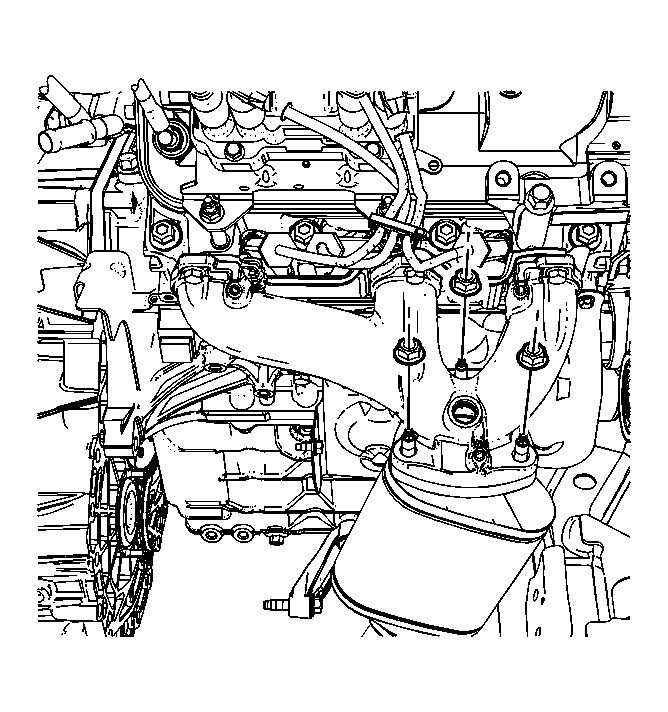

Fig 2: Right Side Catalytic Converter To Exhaust Manifold Nuts

Courtesy of GENERAL MOTORS CORP.

Install the right side catalytic converter to exhaust manifold nuts and tighten to 35 N.m (26 lb ft).

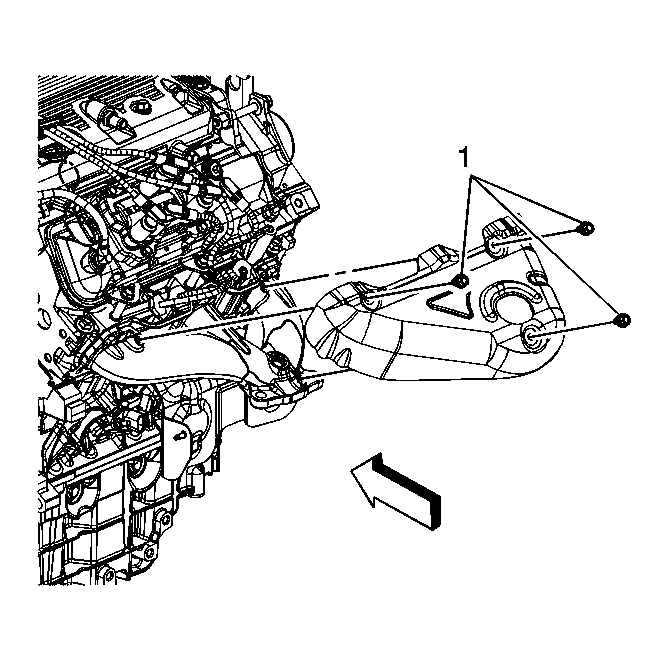

Fig 3: Right Side Exhaust Manifold Heat Shield Bolts

Courtesy of GENERAL MOTORS CORP.

Install the right side exhaust manifold heat shield.
Install the right side exhaust manifold heat shield bolts (1) and tighten to 10 N.m (89 lb in).

Fig 4: Exhaust Manifold Heat Shield Bolts

Courtesy of GENERAL MOTORS CORP.

Install the exhaust manifold heat shield.
Install the right side exhaust manifold heat shield bolts (1) and tighten to 10 N.m (89 lb in).

Fig 5: HO2S Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the engine wiring harness electrical connector to the HO2S electrical connector (1)
Install the HO2S sensor. Refer to Heated Oxygen Sensor Replacement - Bank 1 Sensor 2 .
