Shift Cable (Console Shift): Removal

WARNING: This page is about a different car, the 2003 Cadillac Seville and 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Set the park brake and chock the wheels. Fully lift the retainer from the shift cable mechanism. See Fig 1 .
Disconnect the shift cable terminal from the transaxle manual shift lever pin. See Fig 2 . Press the locking tabs inward in order to release the shift cable from the bracket.
Remove the left console trim panel. See appropriate SHIFT INTERLOCK SYSTEMS article. Remove the console trim plate. Remove the shift cable from the shift lever pin. Pull the lock release and remove the shift cable (1) from the console. See Fig 3 .
Unplug the shift cable grommet at the cowl panel and remove the shift cable from the vehicle. See Fig 4 .

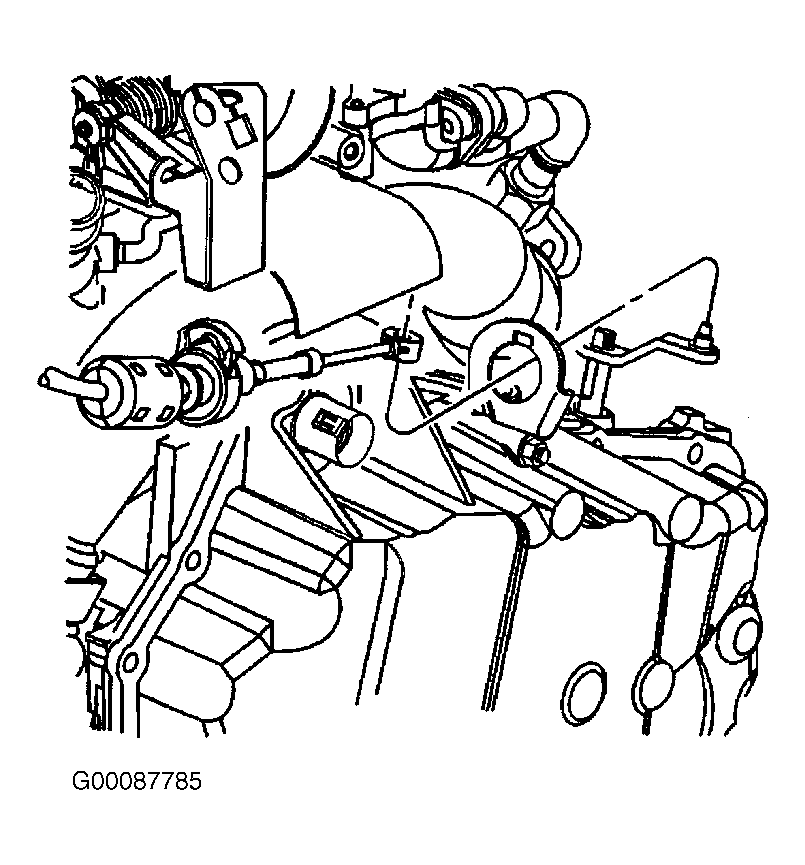

Fig 1: Removing & Installing Shift Cable Retainer At Transaxle

Courtesy of GENERAL MOTORS CORP.

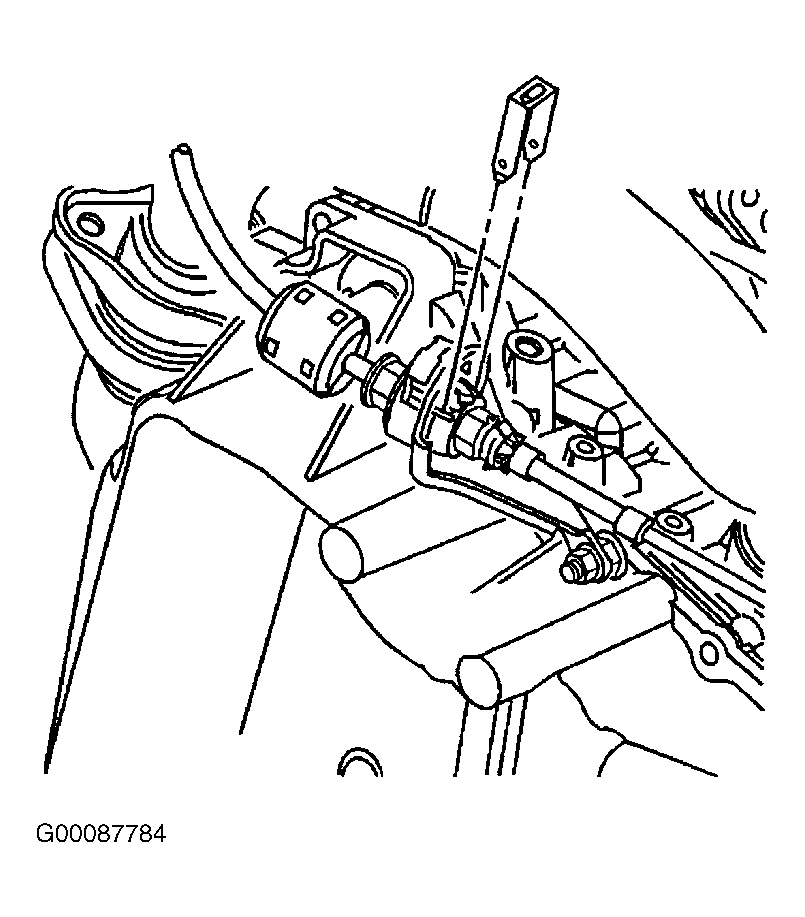

Fig 2: Removing & Installing Shift Cable At Transaxle

Courtesy of GENERAL MOTORS CORP.

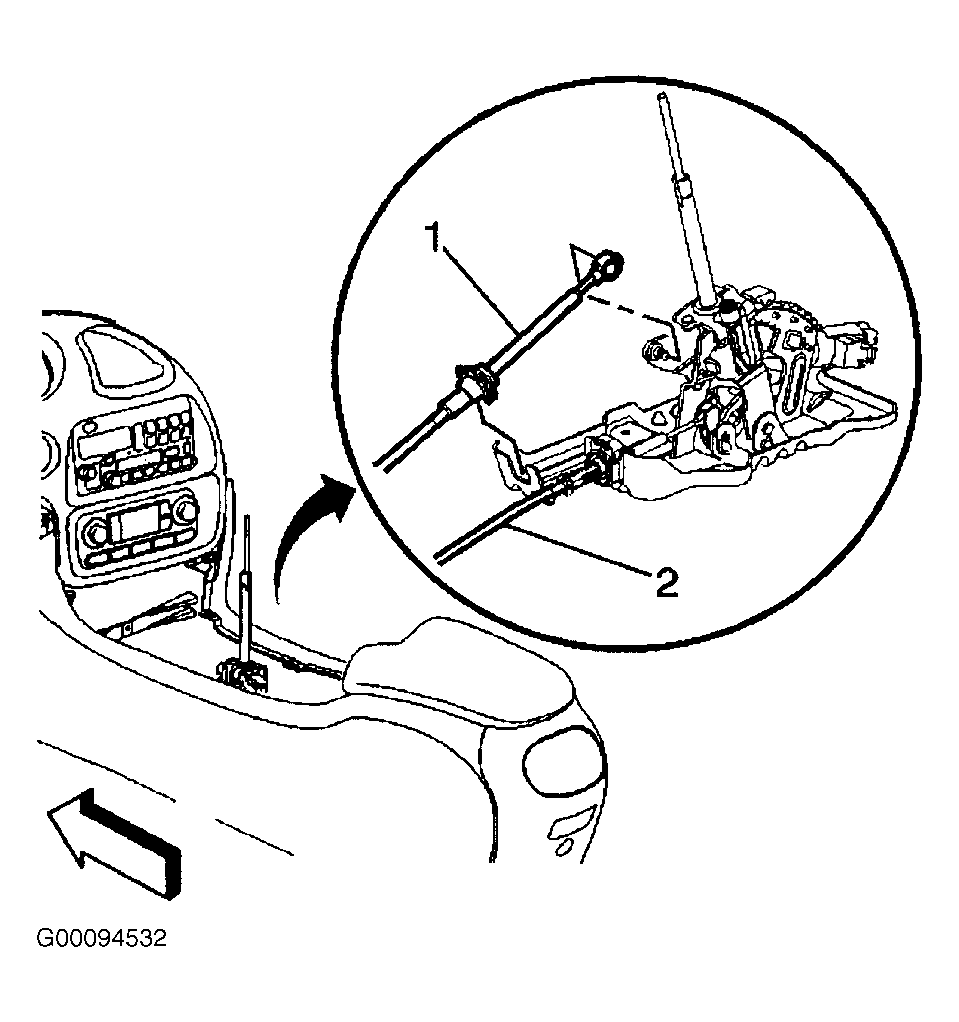

Fig 3: Removing & Installing Shift Cable At Shift Lever

Courtesy of GENERAL MOTORS CORP.

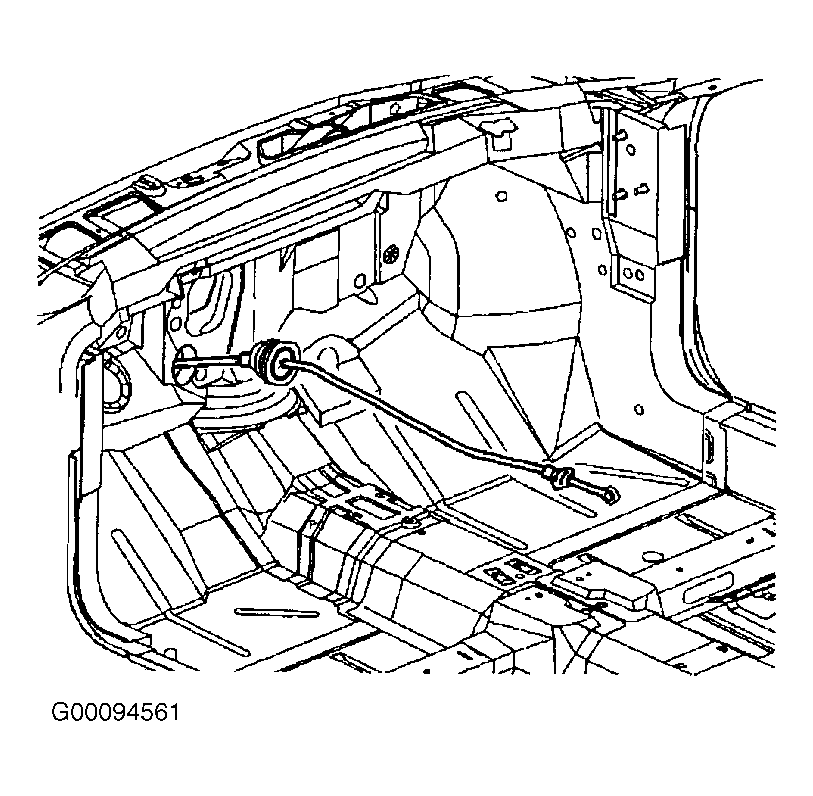

Fig 4: Removing & Installing Shift Cable

Courtesy of GENERAL MOTORS CORP.
