Shift Cable (Column Shift): Removal

WARNING: This page is about a different car, the 2003 Cadillac Seville and 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the park brake and chock the wheels. Fully lift the retainer from the shift cable mechanism. See Figure .
  2. Disconnect the shift cable terminal from the manual shift lever pin. See Figure . Press the locking tabs inward in order to release the shift cable from the bracket.
  3. Remove the left closeout/insulator panel. Disconnect the shift cable terminal from the shift control lever pin. See Fig 1 .
  4. Remove the retainer from the shift cable mechanism. Press the locking tabs (1) inward in order to release the shift cable (2) from the bracket. See Fig 2 .
  5. Unplug the shift cable grommet at the cowl panel and remove the shift cable from the vehicle. See Figure .

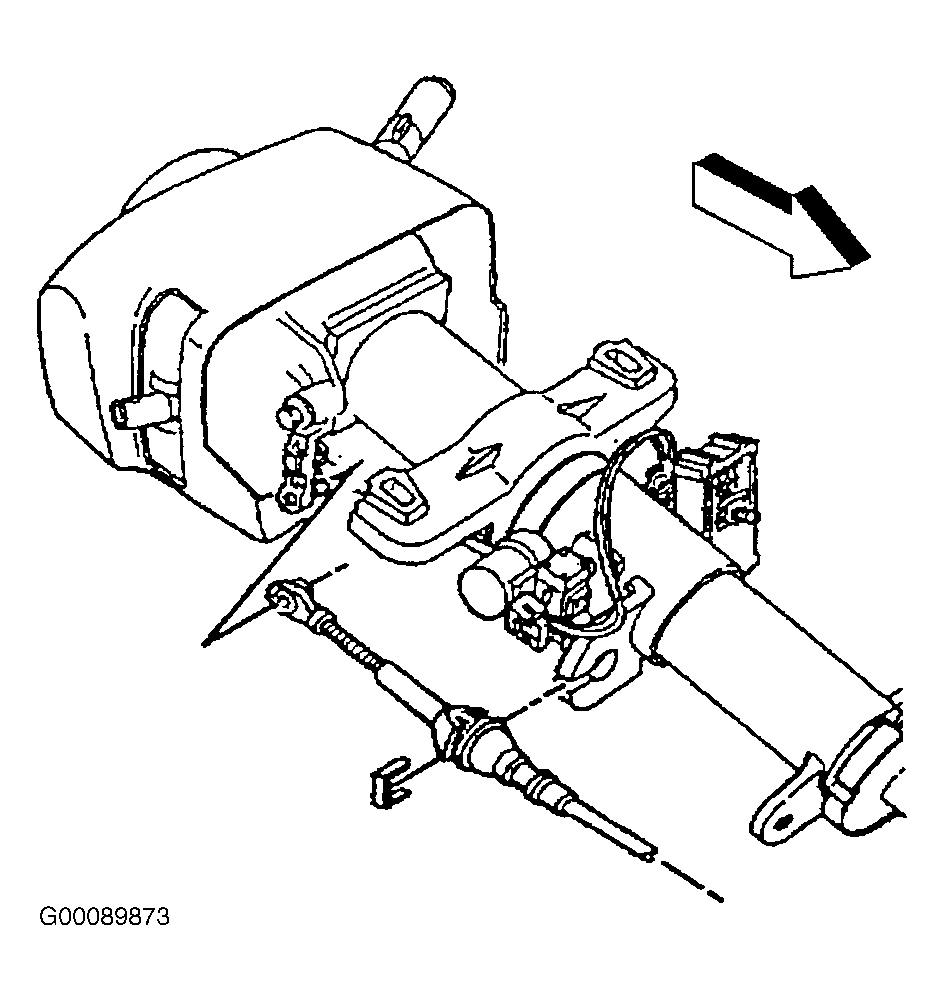

Fig 1: Removing & Installing Shift Cable At Steering Column
G00089873Courtesy of GENERAL MOTORS CORP.

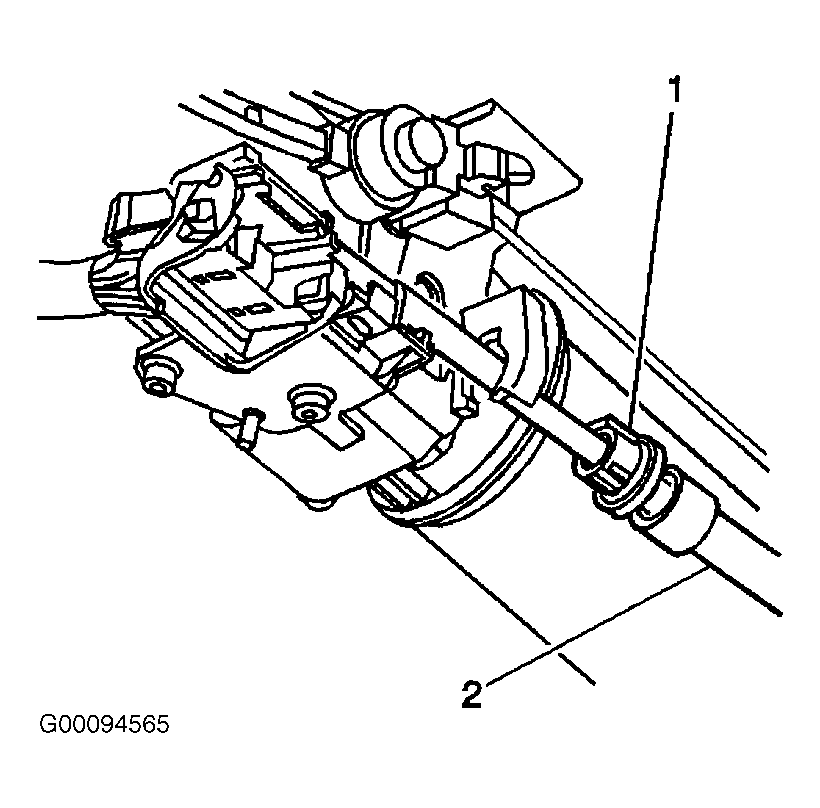

Fig 2: Identifying Shift Cable Locking Tabs
G00094565Courtesy of GENERAL MOTORS CORP.
