Parking Gear: Removal
WARNING: This page is about a different car, the 2003 Cadillac Seville and 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

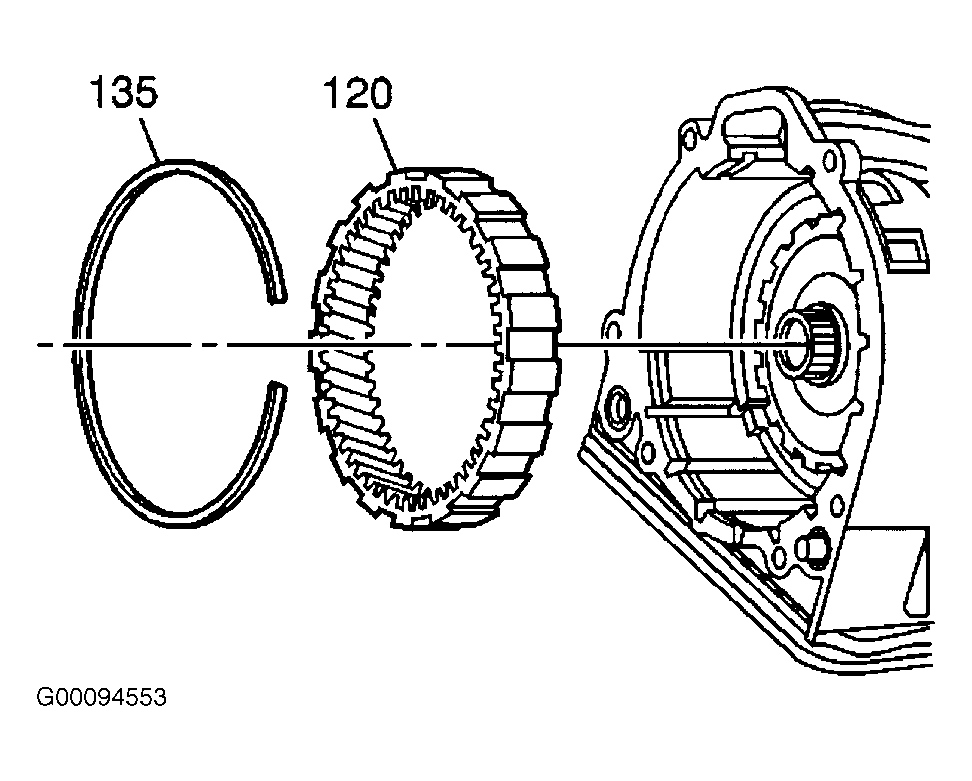

Remove the final drive assembly. See FINAL DRIVE ASSEMBLY . Remove the final drive internal gear snap ring (135). See Fig 1 . Remove the final drive internal gear (120). Remove snap ring from park gear. Remove park gear from housing.
