Differential Carrier: Removal
WARNING: This page is about a different car, the 2003 Cadillac Seville and 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

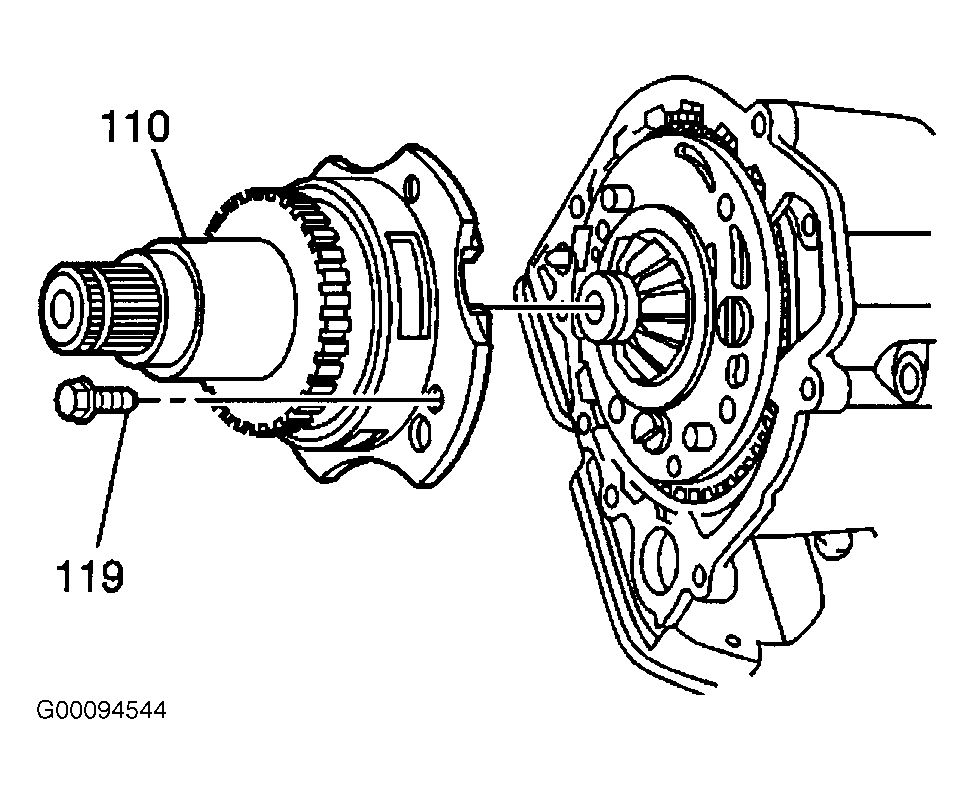

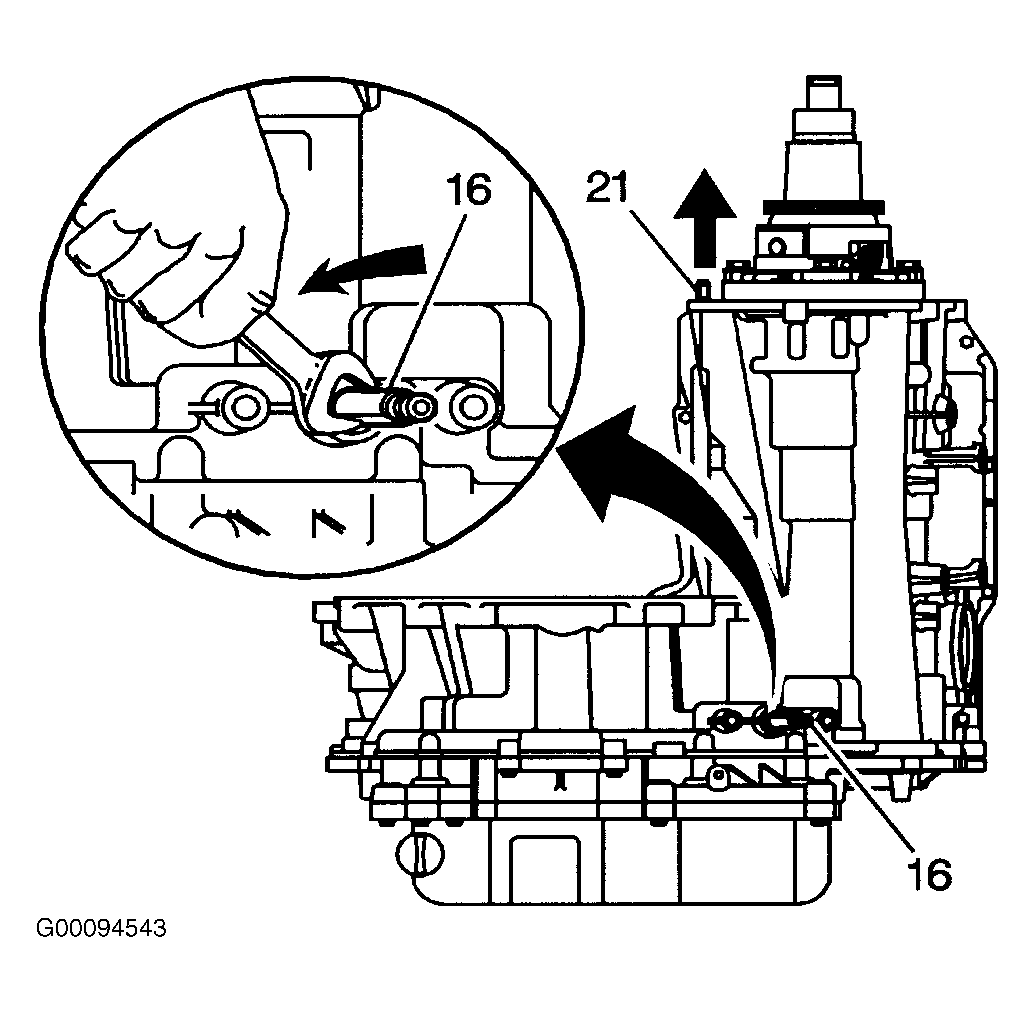

Remove the case extension. See CASE EXTENSION HOUSING . Rotate the manual shaft (16) counterclockwise in order to place the transaxle in Park and prevent the differential from rotating. See Fig 1 . Remove the four, 15-mm differential bolts (119). See Fig 2 . Remove the differential carrier (110).
