Detent Lever & Roller Assembly: Installation

WARNING: This page is about a different car, the 2003 Cadillac Seville and 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

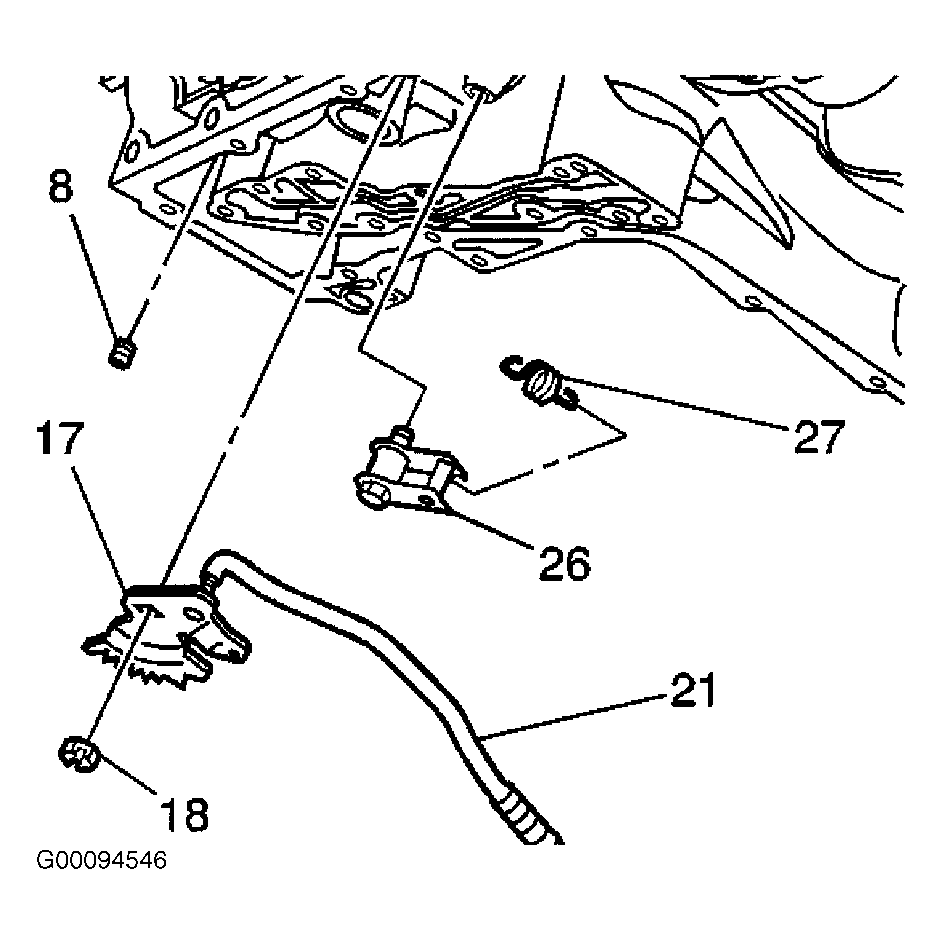

  1. Install the detent lever (17) and the actuator rod (21). See Figure . You must hold the detent lever (17) in place when installing the manual shaft nut (18) in order to prevent damage to the actuator rod (21).
  2. Install the 15-mm manual shaft nut (18). Tighten the manual shaft-to-detent lever nut to specification. See TORQUE SPECIFICATIONS  .
  3. Install the 13-mm detent roller bolt pivot arm, the sleeve, and the washer (26). Tighten the detent lever and roller assembly bolt to specification. See TORQUE SPECIFICATIONS  .
  4. Using a pair of pliers, grasp the detent roller end of the detent spring (27). Install the detent spring (27). Install the lower controls and valve assembly. See LOWER CONTROL VALVE BODY ASSEMBLY  . Install the scavenge screens. See DRAINING & REFILLING  under LUBRICATION.
