Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Left Secondary Camshaft Drive Chain Shoe
    GM1306380Courtesy of GENERAL MOTORS CORP.
  1. Ensure that the left secondary camshaft drive chain shoe (2) is being installed.

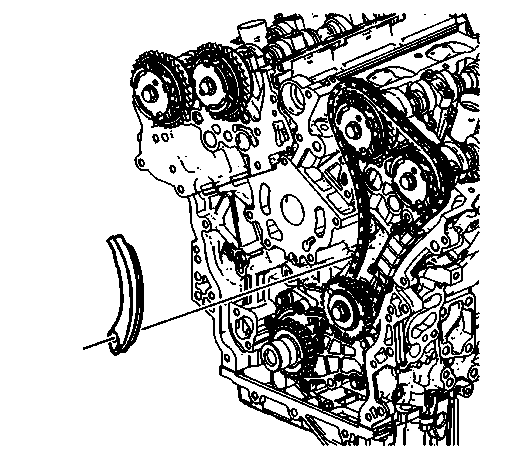

    2. Fig 2: View Of Left Secondary Camshaft Drive Chain Shoe
    GM1579014Courtesy of GENERAL MOTORS CORP.
  2. Position the left secondary camshaft drive chain shoe.

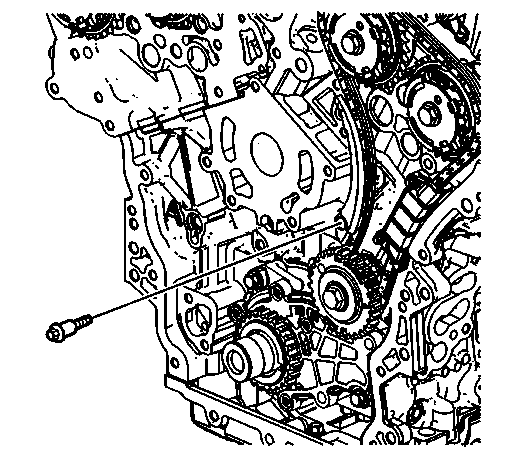

    3. Fig 3: Identifying Secondary Camshaft Drive Chain Shoe Bolt
    GM1579013Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the secondary camshaft drive chain shoe bolt to 23 N.m (17 lb ft).
  4. Install the left bank secondary camshaft drive chain tensioner. Refer to Secondary Timing Chain Tensioner Installation - Left Side .
  5. Install the engine front cover. Refer to Engine Front Cover Replacement .
  6. Install the spark plugs. Refer to Spark Plug Replacement .
