Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

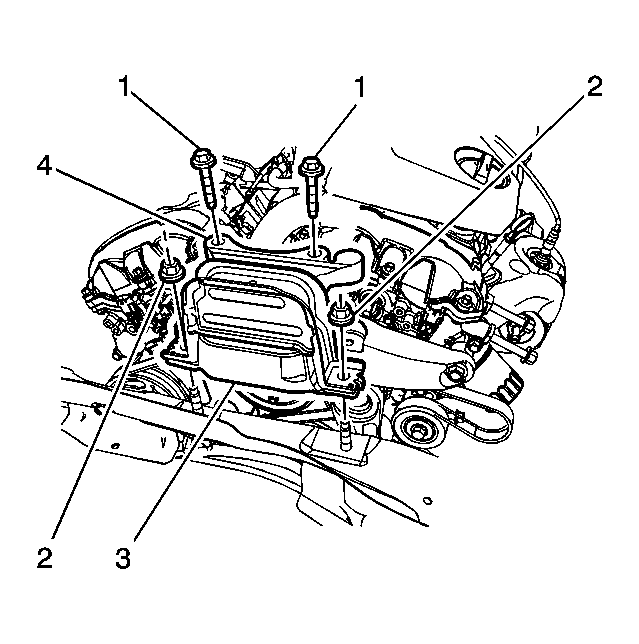

    Fig 1: Engine Mount
    GM2029143Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount (3) and engine mount adapter (4).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the engine mount nuts (2) and tighten to 85 N.m (63 lb ft).
  3. Install the engine mount adapter bolts (1) and tighten to 50 N.m (38 lb ft).
  4. Lower the engine.
  5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
