Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Drive Belt Idler Pulley
    GM1826824Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt idler pulley.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the drive belt idler pulley bolt and tighten to 58 N.m (43 lb ft).
  3. Position generator in place then install the generator bolts.

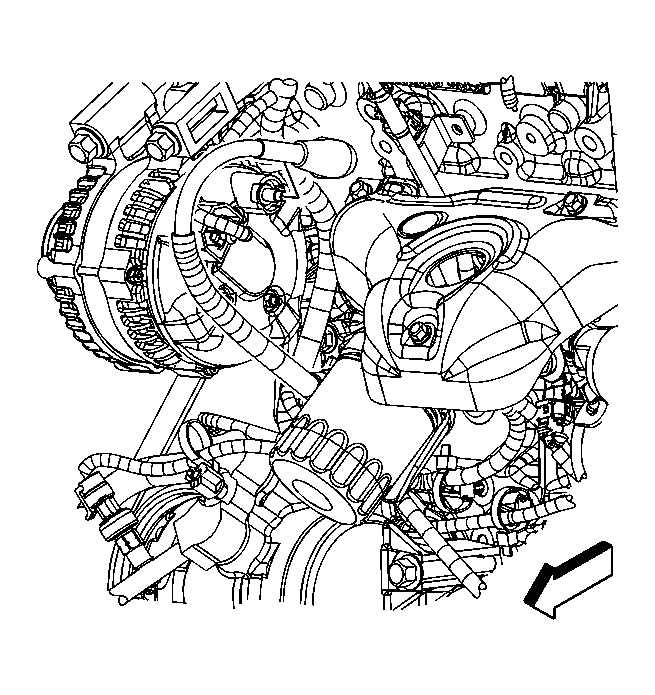

    4. Fig 2: Battery Cable
    GM1897271Courtesy of GENERAL MOTORS CORP.
  4. Install the battery cable.
  5. Install the battery cable boot.

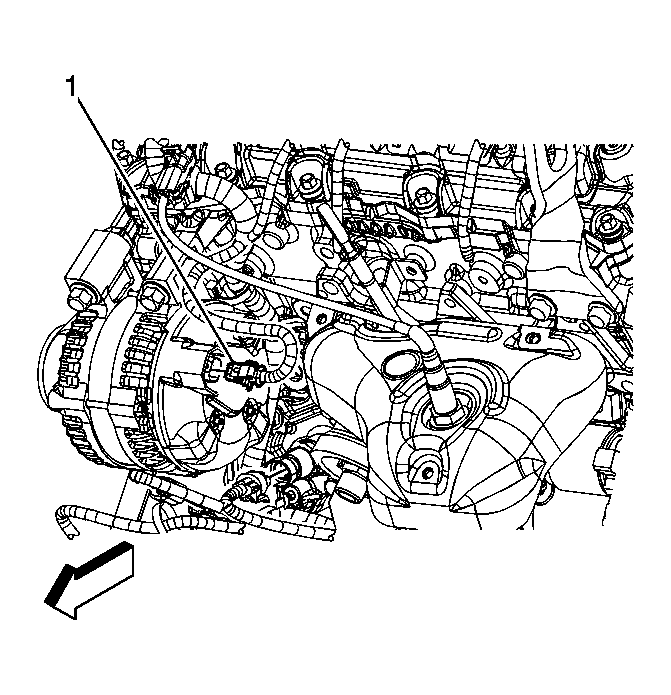

    6. Fig 3: Generator Electrical Connector
    GM1897257Courtesy of GENERAL MOTORS CORP.
  6. Connect the generator electrical connector.
  7. Install the drive belt. Refer to Drive Belt Replacement (LY7)
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
