Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

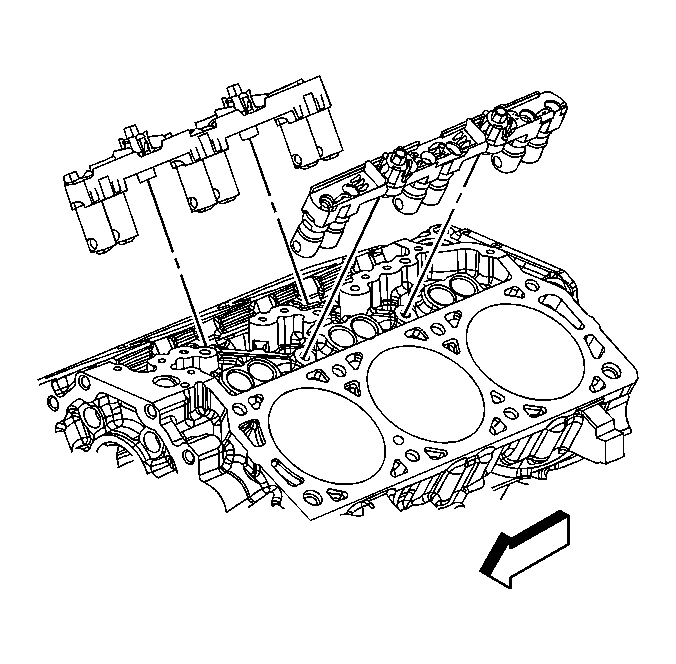

    Fig 1: Identifying Valve Lifter Guides
    GM1583141Courtesy of GENERAL MOTORS CORP.
  1. Remove the lower intake manifold. Refer to Lower Intake Manifold Replacement .
  2. Remove the valve rocker arms and pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .
    3. NOTE: The valve lifter guide bolts are not removable.
  3. Loosen the valve lifter guide bolts.
  4. Remove the valve lifter guides.
    5. Fig 2: Identifying Valve Lifters
    GM1583142Courtesy of GENERAL MOTORS CORP.
  5. Remove the valve lifters from the valve lifter guides.
  6. Clean all gasket surfaces with degreaser.
