Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

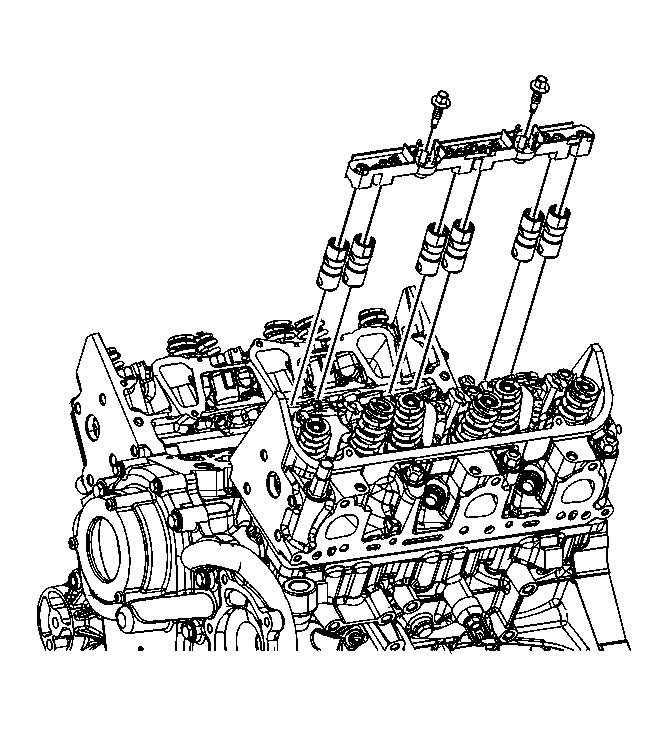

    Fig 1: View Of Valve Lifter Guides
    GM1557686Courtesy of GENERAL MOTORS CORP.
  1. Coat the valve lifters using prelube. Refer to Adhesives, Fluids, Lubricants, and Sealers .
  2. Install the valve lifters to the cylinder bores.
  3. Apply threadlock to the valve lifter guide bolt threads. Refer to Adhesives, Fluids, Lubricants, and Sealers .
  4. Install the valve lifter guides.
    5. CAUTION: Refer to Fastener Caution .
  5. Tighten the valve lifter guide bolts to 10 N.m (89 lb in).
  6. Install the valve rocker arms and pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .
  7. Install the lower intake manifold. Refer to Lower Intake Manifold Replacement .
