Installation Procedure
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
- Install the oil pump drive seal. Coat the seal or bore in the engine block with clean engine oil.
- Apply prelube to the oil pump drive gear. Refer to Adhesives, Fluids, Lubricants, and Sealers .

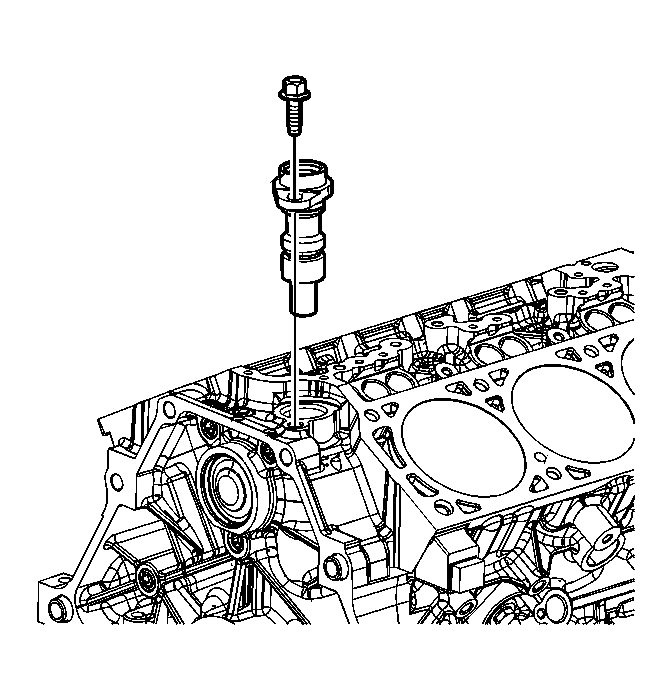

- Install the oil pump drive.
- Install the oil pump drive bolt and tighten to 50 N.m (37 lb ft).
- Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
CAUTION:
Refer to Fastener Caution
.
