Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

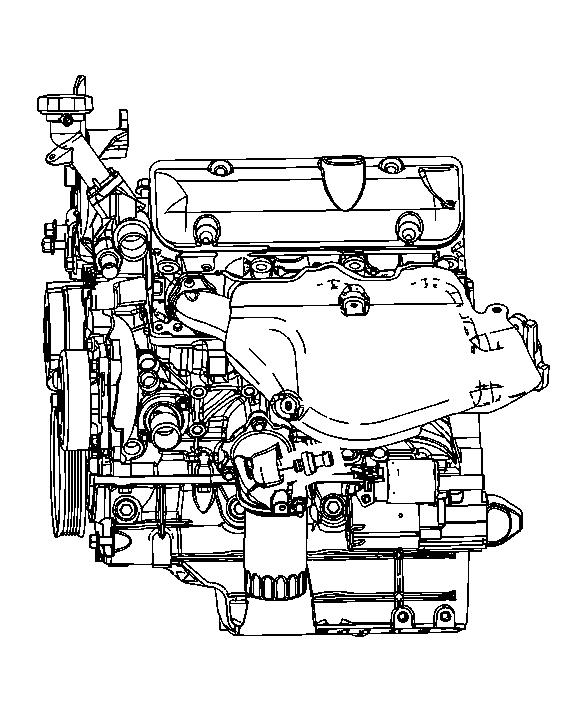

    Fig 1: Locating Engine Oil Pressure Sensor
    GM1609660Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Component Fastener Tightening Caution .
  1. Install the engine oil pressure sensor/switch and tighten to 16 N.m (12 lb ft).

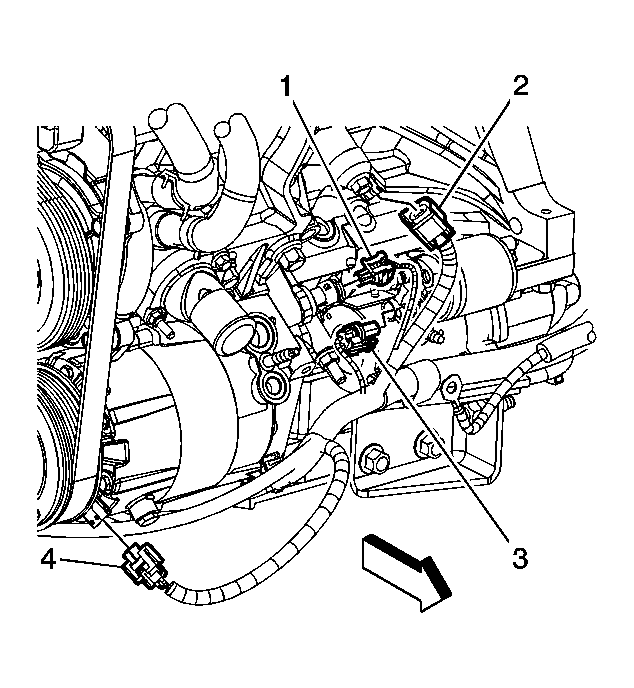

    2. Fig 2: Identifying Electrical Connector
    GM1608498Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine oil pressure sensor/switch electrical connector (1).
