Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install engine support fixture. Refer to Engine Support Fixture
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .

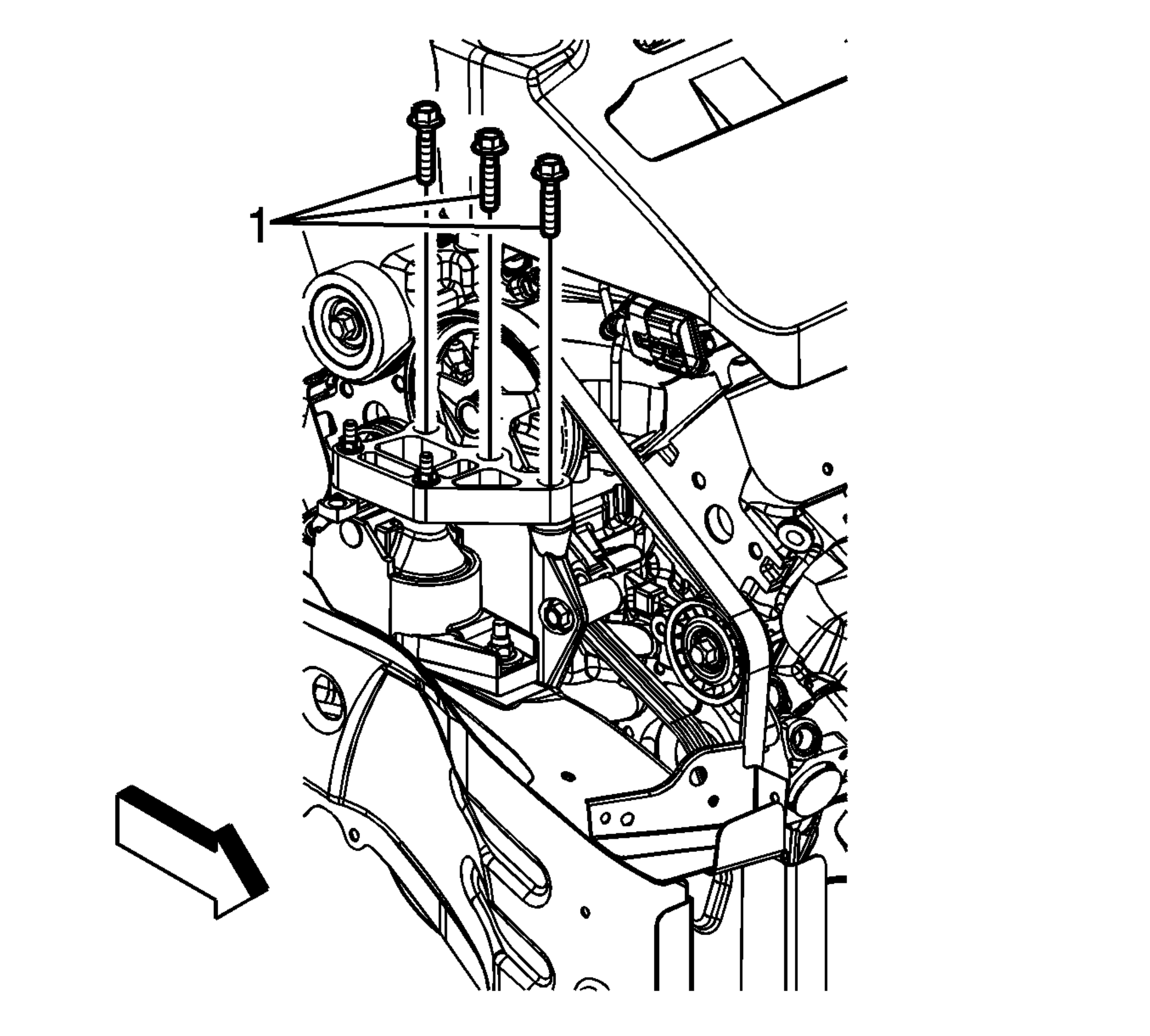

    3. Fig 1: Engine Mount Bolts
    GM1875367Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount bolts (1).

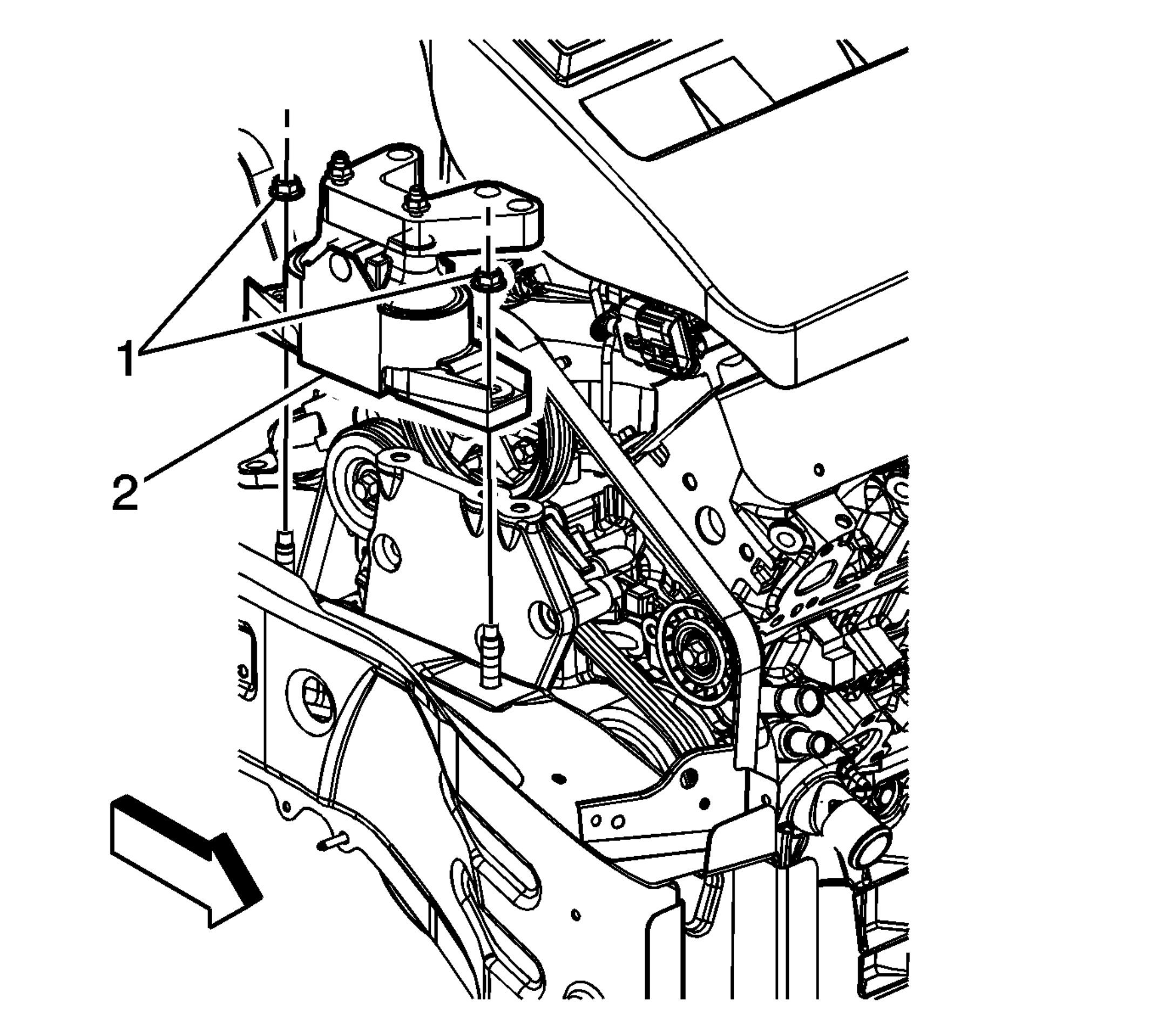

    4. Fig 2: Engine Mount Nuts
    GM1875368Courtesy of GENERAL MOTORS CORP.
  4. Remove the engine mount nuts (1).
  5. Remove the engine mount (2).
