Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

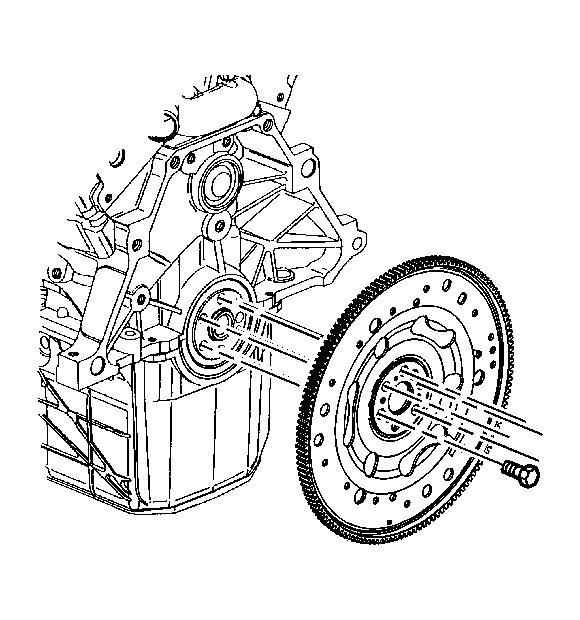

    Fig 1: View Of Flywheel
    GM1526753Courtesy of GENERAL MOTORS CORP.
  1. Position the flywheel to the crankshaft.
  2. Install the flywheel bolts finger tight.
  3. Use the J 37096  to secure the flywheel in order to prevent the crankshaft from rotating. See Special Tools .
    4. CAUTION: Refer to Fastener Caution .
  4. Tighten the engine flywheel bolts to 70 N.m (52 lb ft).
  5. Install the automatic transaxle, if equipped. Refer to Transmission Replacement (3.5L LZ4) .
