Water Pump Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

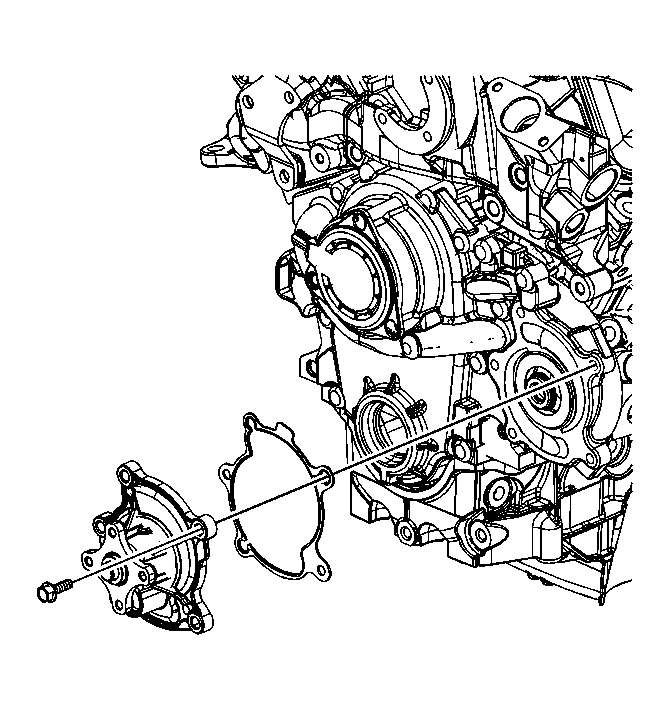

    Fig 1: View Of Water Pump, Bolts & Gasket
    GM1557689Courtesy of GENERAL MOTORS CORP.
  1. Install the water pump gasket.
  2. Install the water pump.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the water pump bolts and tighten to 25 N.m (18 lb ft).

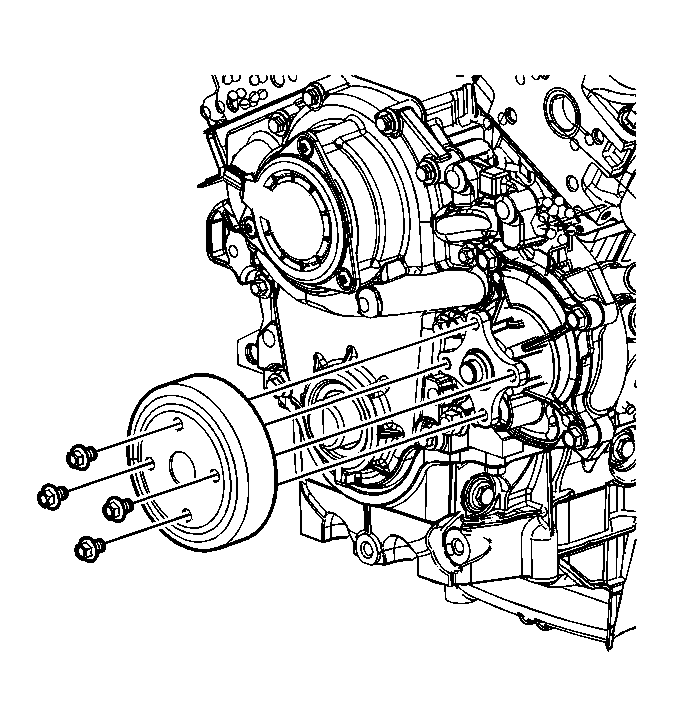

    4. Fig 2: View Of Water Pump Pulley & Bolts
    GM1557687Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts and tighten to 25 N.m (18 lb ft).
