Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

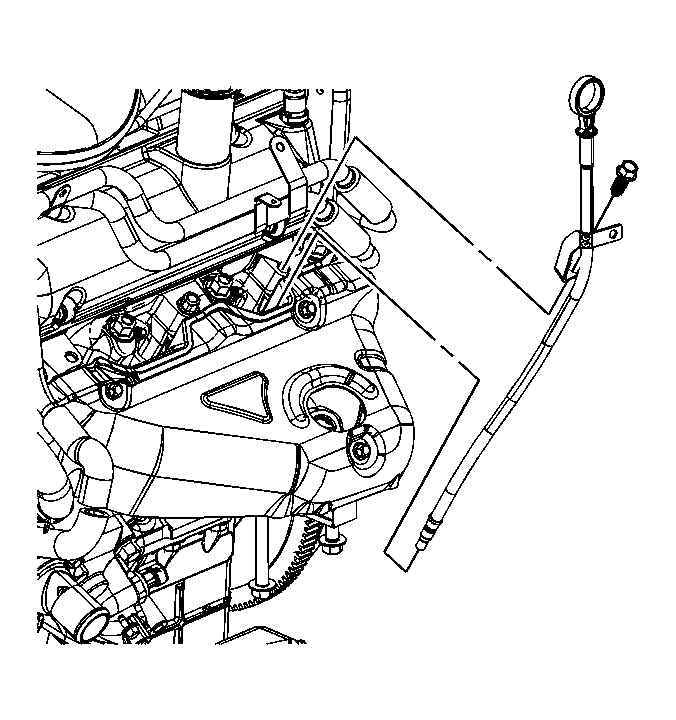

    Fig 1: View Of Oil Level Indicator & Tube
    GM1556799Courtesy of GENERAL MOTORS CORP.
  1. Install the oil level indicator tube and oil level indicator.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the oil level indicator tube bolt and tighten to 25 N.m (18 lb ft).
