Engine Block Heater Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

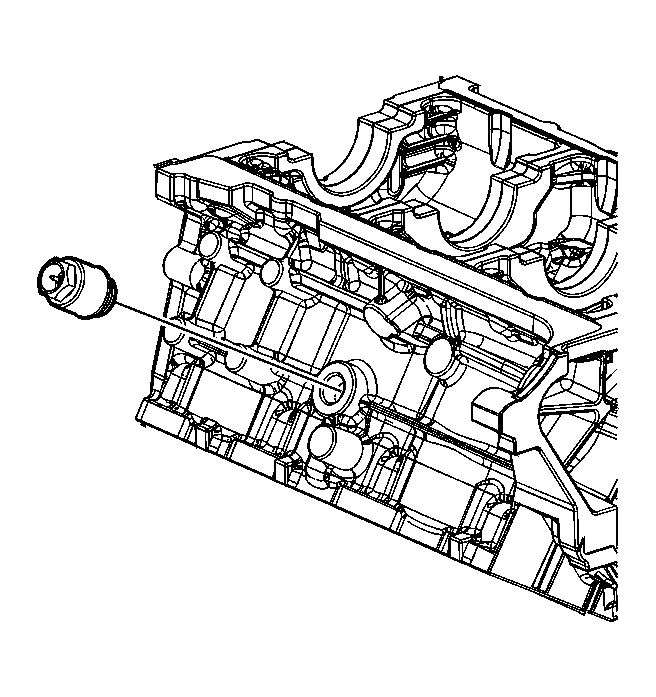

    Fig 1: View Of Engine Block Heater
    GM1578563Courtesy of GENERAL MOTORS CORP.
  1. Apply sealer GM P/N 12346004 (Canadian P/N 1095380), or equivalent to the engine block heater.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the engine block heater into the engine block and tighten to 50 N.m (37 lb ft).
