Crankshaft Front Oil Seal Installation: Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

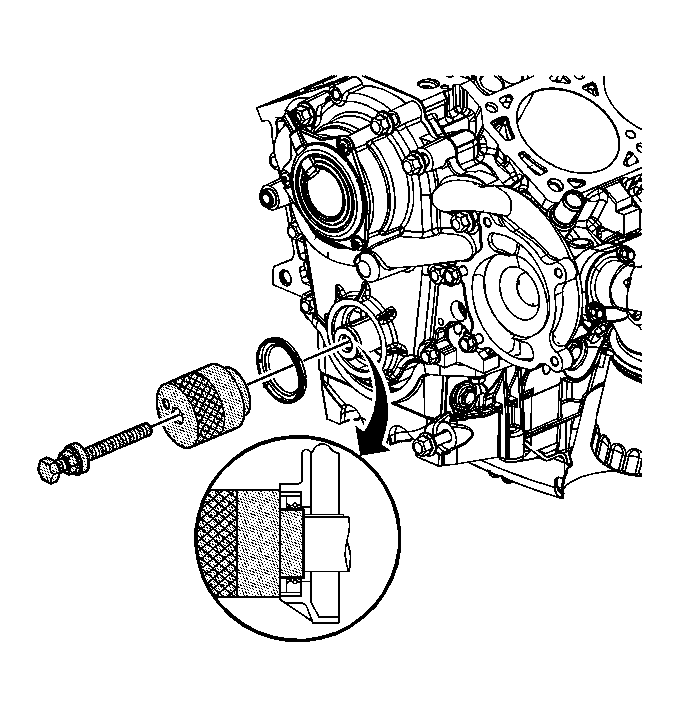

- Place the crankshaft front oil seal on the EN-48869 with lip facing inward, aligning crankshaft keyway to the groove in the installer. See Special Tools .
- Thread the forcing bolt with bearing, washer and nut as shown.
- Tighten the nut until seal bottoms, then remove the EN-48869 . See Special Tools .
