Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place drain pans under the vehicle as needed.
  2. Remove as much fluid from the remote power steering fluid reservoir as possible.

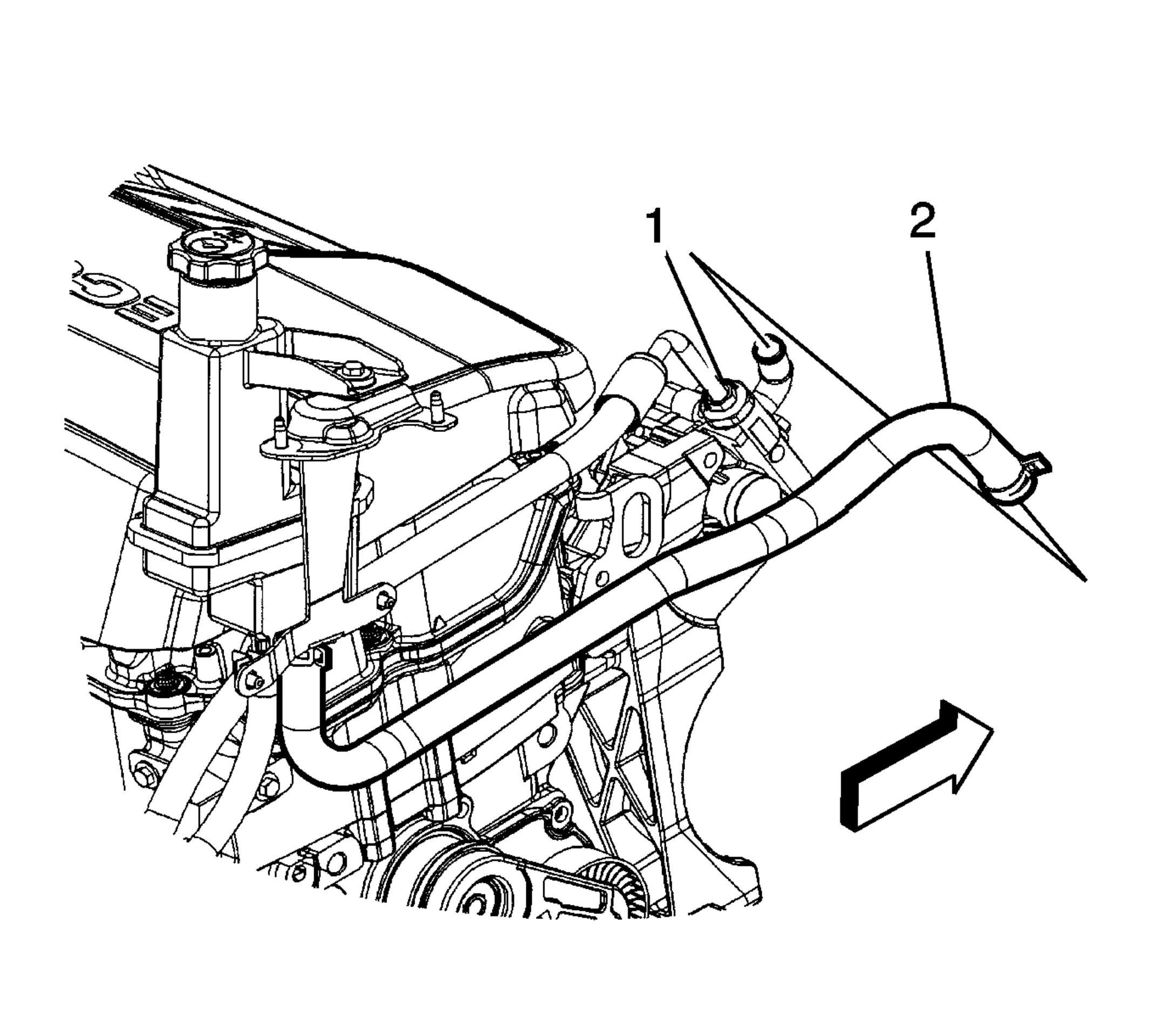

    3. Fig 1: Power Steering Reservoir Outlet Hose & Power Steering Gear Inlet Hose Fitting
    GM2054365Courtesy of GENERAL MOTORS CORP.
  3. Compress the power steering reservoir outlet hose clamp and disconnect the power steering reservoir outlet hose (2) from the power steering pump.
  4. Disconnect the power steering gear inlet hose fitting (1) from the power steering pump.

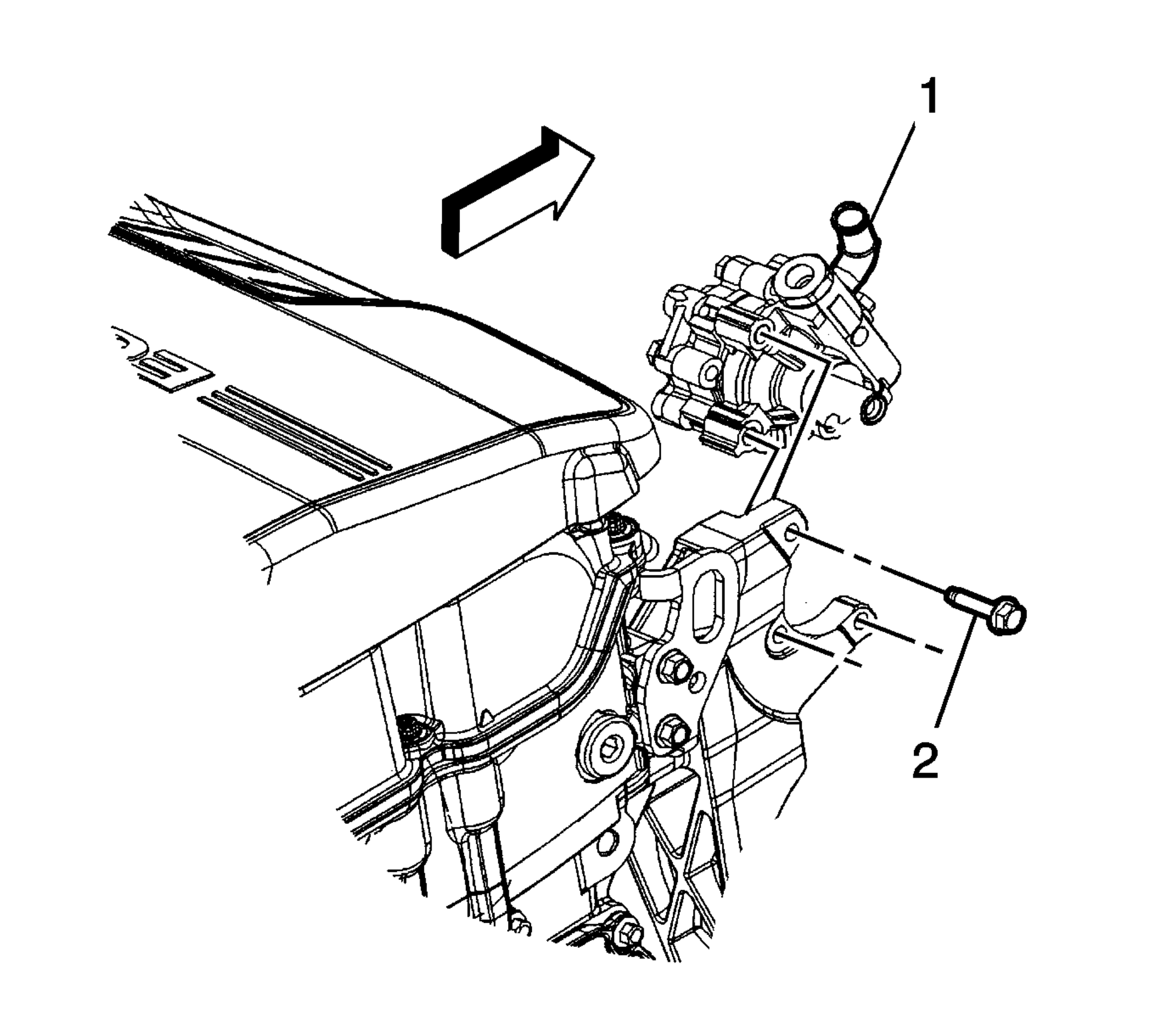

    5. Fig 2: Power Steering Pump & Bolts
    GM2054366Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering pump bolts (2).
  6. Remove the power steering pump (1) from the vehicle.
  7. Remove the power steering pump pulley using puller J 25034-C  .
