Power Steering Fluid Reservoir Replacement (LE5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

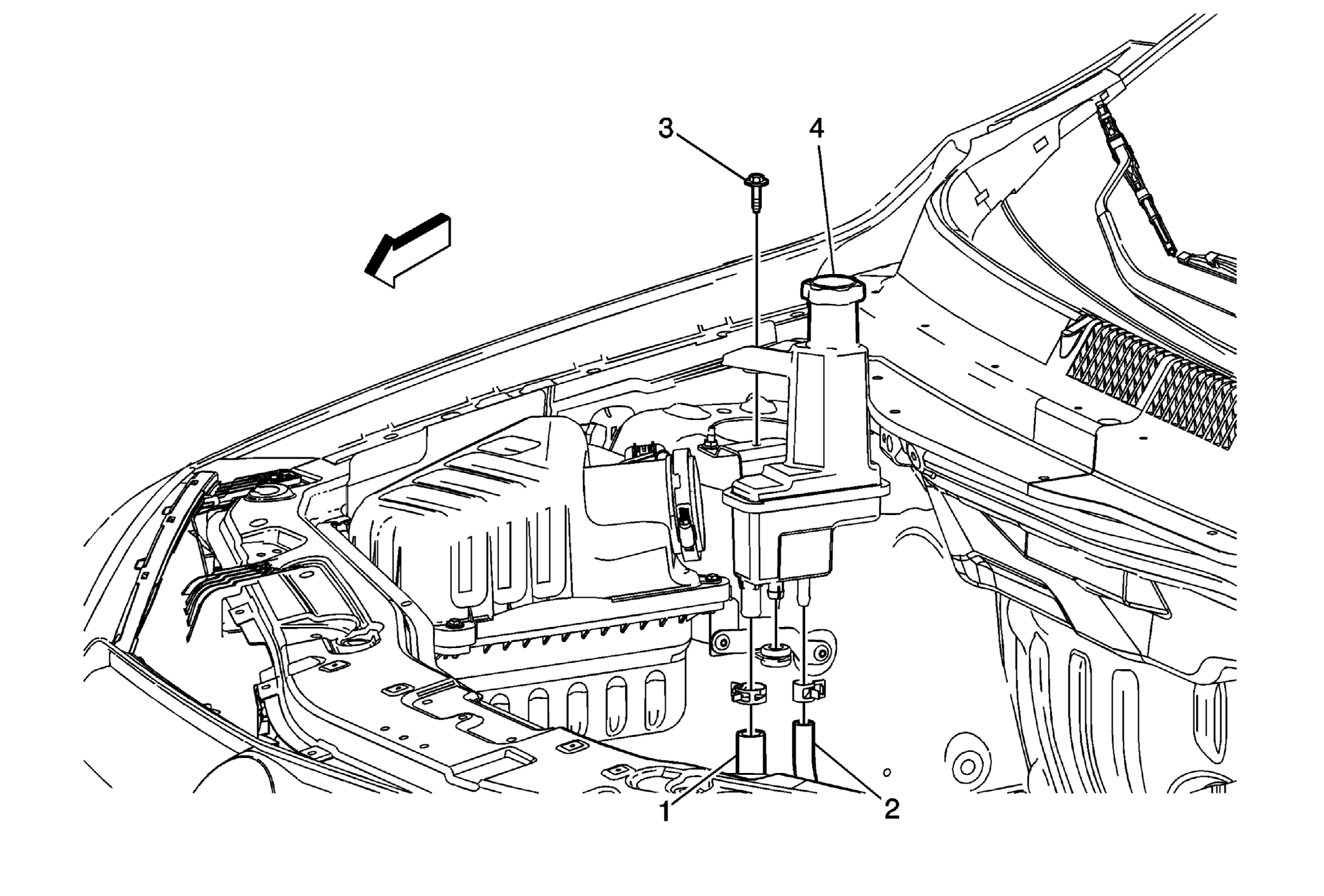

Fig 1: Power Steering Fluid Reservoir Replacement (LE5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Power Steering Fluid Reservoir Outlet Hose Procedure: Compress the power steering reservoir outlet hose clamp and disconnect the power steering reservoir outlet hose. Tip: Remove as much power steering fluid from the remote power steering fluid reservoir as possible. Place drain pans under the vehicle as needed.
2	Power Steering Cooler Pipe Procedure: Compress the power steering cooler pipe clamp and disconnect the power steering cooler pipe.
3	Power Steering Fluid Reservoir Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
4	Remote Power Steering Fluid Reservoir Procedure: After repairs, fill and bleed the power steering fluid system. Refer to Power Steering System Bleeding . Tip: Clean any excess power steering fluid from the vehicle.
