Installation Procedure
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
- Position the power steering reservoir outlet hose to the vehicle.
- Compress the power steering reservoir outlet hose clamp (1) and connect the power steering reservoir outlet hose (2) to the power steering pump.
- Compress the power steering reservoir outlet hose clamp (1) and connect the power steering reservoir outlet hose (2) to the remote power steering fluid reservoir.
- Clean any excess fluid from the vehicle and remove the drain pans.
- Install the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
- Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
- Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .

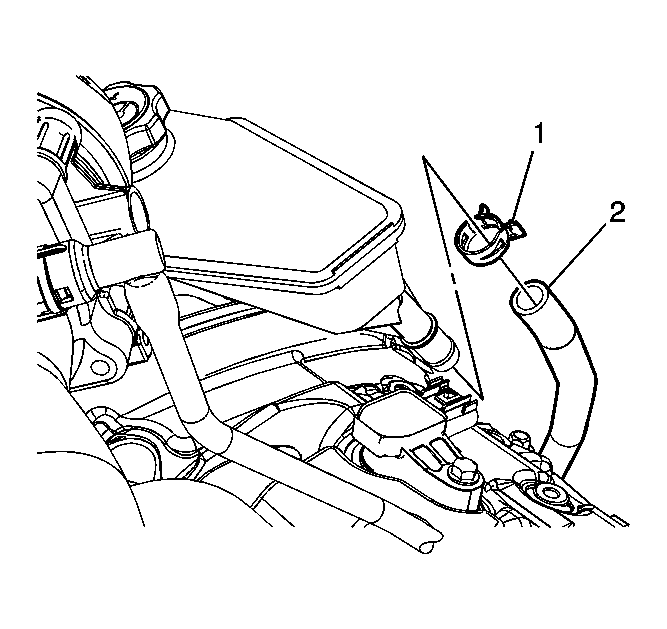

Fig 2: Identifying Power Steering Reservoir Outlet Hose & Clamp (Remote Power Steering Fluid Reservoir)
