Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the power steering fluid reservoir outlet hose to the vehicle.

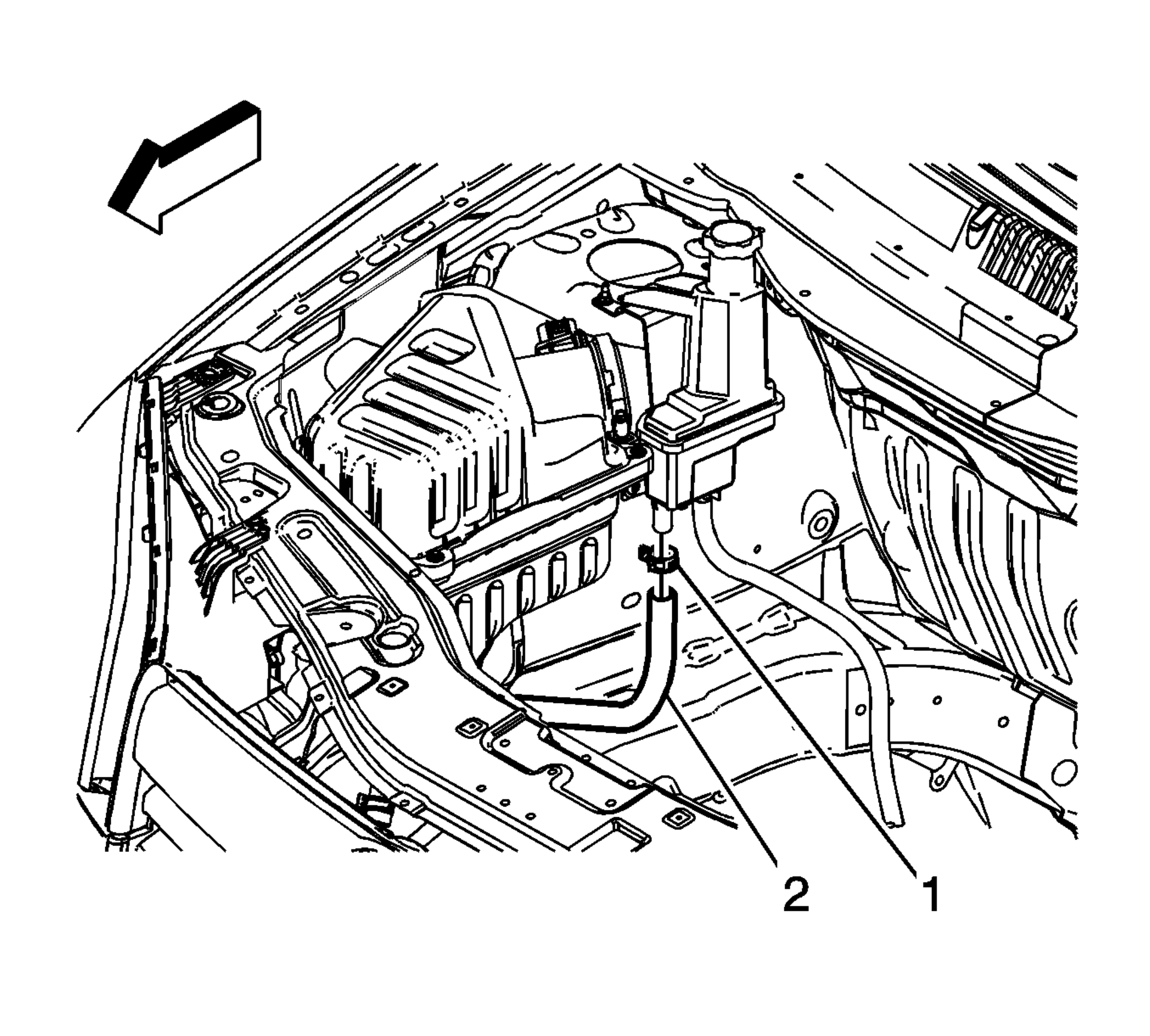

    2. Fig 1: Power Steering Reservoir Outlet Hose & Clamp
    GM2056780Courtesy of GENERAL MOTORS CORP.
  2. Compress the power steering reservoir outlet hose clamp (1) and connect the power steering reservoir outlet hose (2) to the remote power steering fluid reservoir (2).

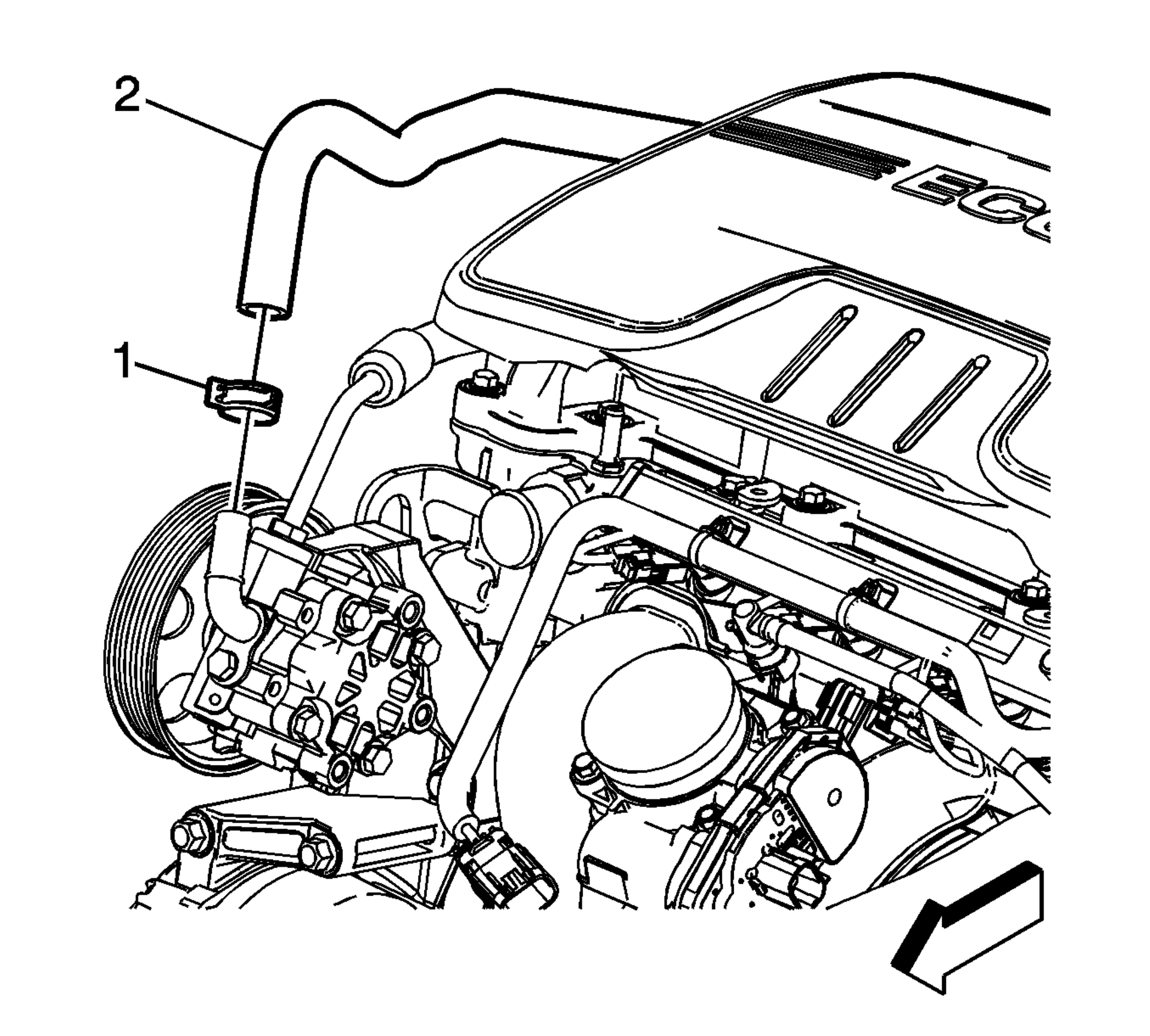

    3. Fig 2: Power Steering Reservoir Outlet Hose & Clamp
    GM2056556Courtesy of GENERAL MOTORS CORP.
  3. Compress the power steering reservoir outlet hose clamp (1) and connect the power steering reservoir outlet hose (2) to the power steering pump.
  4. Clean any excess fluid from the vehicle and remove the drain pans.
  5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  6. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
