Power Steering Assist Motor Replacement (Non-Two Mode Hybrid)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

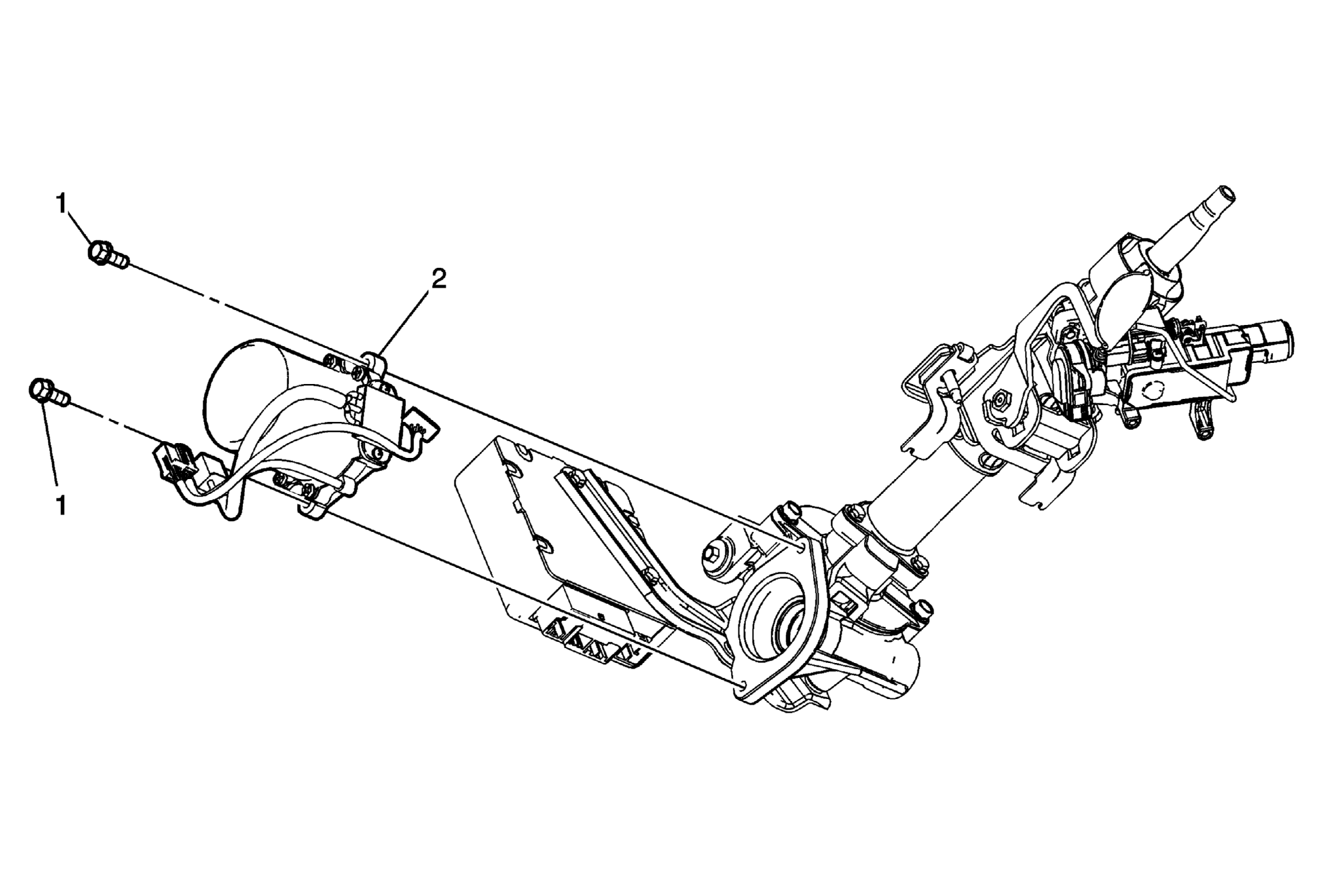

Fig 1: View Of Power Steering Assist Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the left instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement . Remove the driver knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement .
1	Power Steering Assist Motor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 18 N.m (13 lb ft)
2	Power Steering Assist Motor Procedure: Disconnect any electrical connectors as needed.

Callout

Component Name

Preliminary Procedures

Remove the left instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement .
Remove the driver knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement .

Power Steering Assist Motor Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 18 N.m (13 lb ft)

Power Steering Assist Motor
Procedure:
Disconnect any electrical connectors as needed.
