Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Front Brake Rotor
    GM931367Courtesy of GENERAL MOTORS CORP.
  1. Remove the front brake rotor. Refer to Front Brake Rotor Replacement .
    2. Fig 2: View Of Front Wheel Speed Sensor
    GM926677Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the wheel speed sensor electrical connector, if equipped.
    3. Fig 3: View Of Wheel Speed Sensor Electrical Connector & Connector Bracket
    GM931451Courtesy of GENERAL MOTORS CORP.
  3. Remove the wheel speed sensor electrical connector from the connector bracket.
    4. Fig 4: View Of Front Wheel Drive Shaft Spindle Nut
    GM1844090Courtesy of GENERAL MOTORS CORP.
  4. Remove the front wheel drive shaft spindle nut.
  5. Remove the speed sensor. Refer to Front Wheel Speed Sensor Replacement .

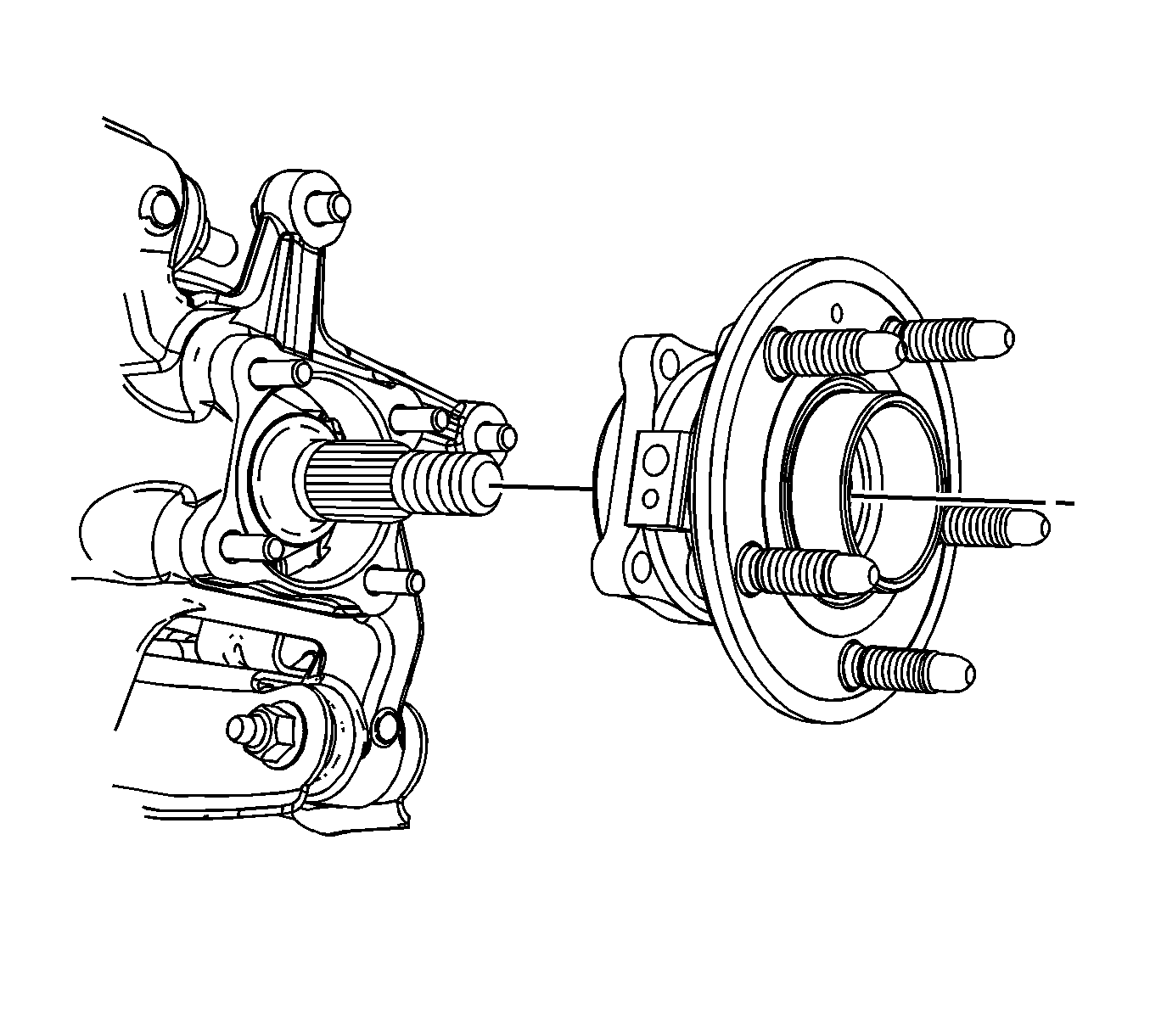

    6. Fig 5: Identifying Wheel Bearing/Hub
    GM1843952Courtesy of GENERAL MOTORS CORP.
  6. Support the wheel drive shaft with heavy mechanic's wire or equivalent.
  7. Remove and discard the wheel bearing/hub mounting bolts.
  8. Remove the wheel bearing/hub assembly from the steering knuckle.
