Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

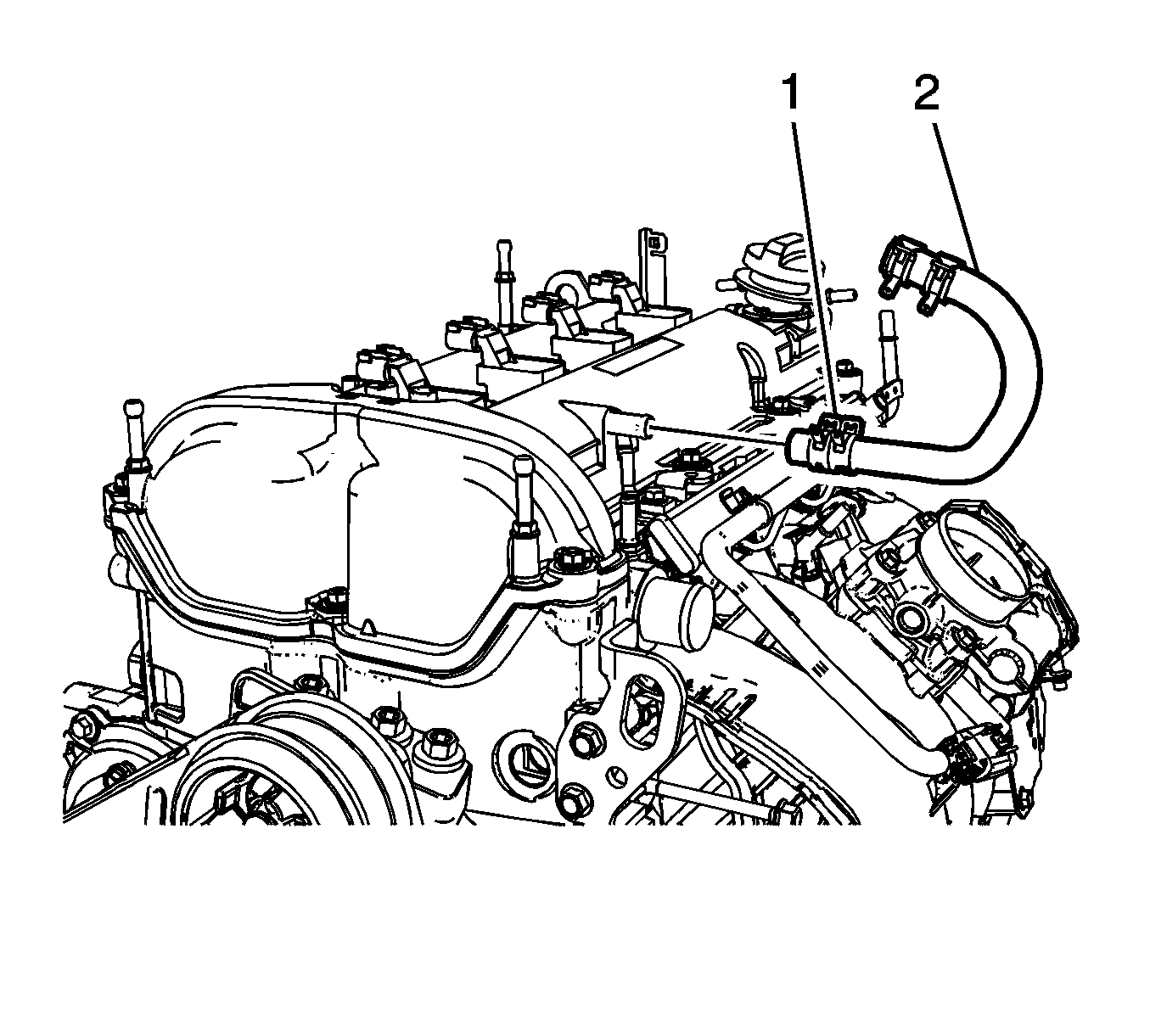

    Fig 1: PCV Hose
    GM1902183Courtesy of GENERAL MOTORS CORP.
  1. Install the PCV hose (2) to the camshaft cover.
  2. Position the PCV hose clamp (1) at the camshaft cover.
  3. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
