Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

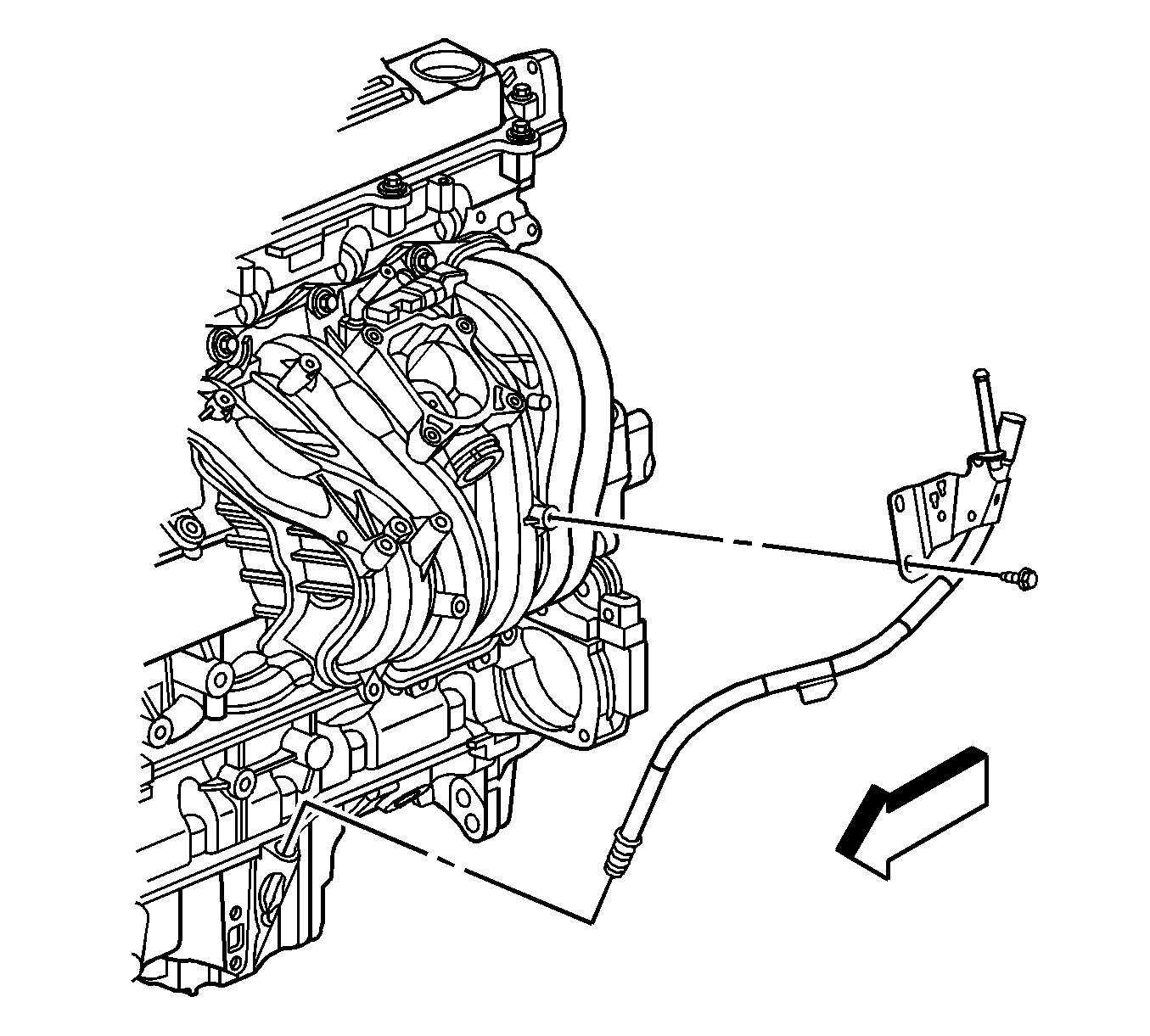

    Fig 1: Identifying Oil Level Indicator Tube
    GM1647397Courtesy of GENERAL MOTORS CORP.
  1. Install NEW oil level indicator tube O-ring seals, if necessary.
  2. Install the oil level indicator tube.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the oil level indicator tube bolt and tighten to 10 N.m (89 lb in).

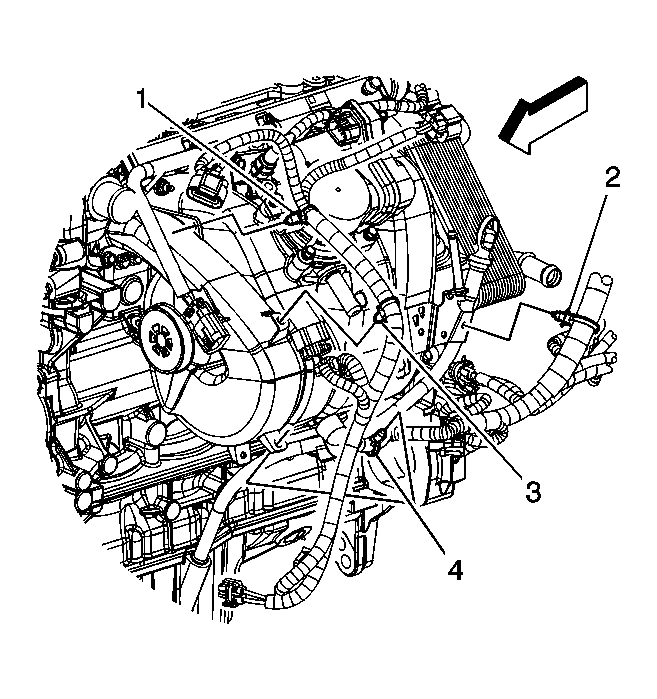

    4. Fig 2: Identifying Engine Harness Clip
    GM1647405Courtesy of GENERAL MOTORS CORP.
  4. Install the engine harness clip (1) to the oil level indicator tube bracket.

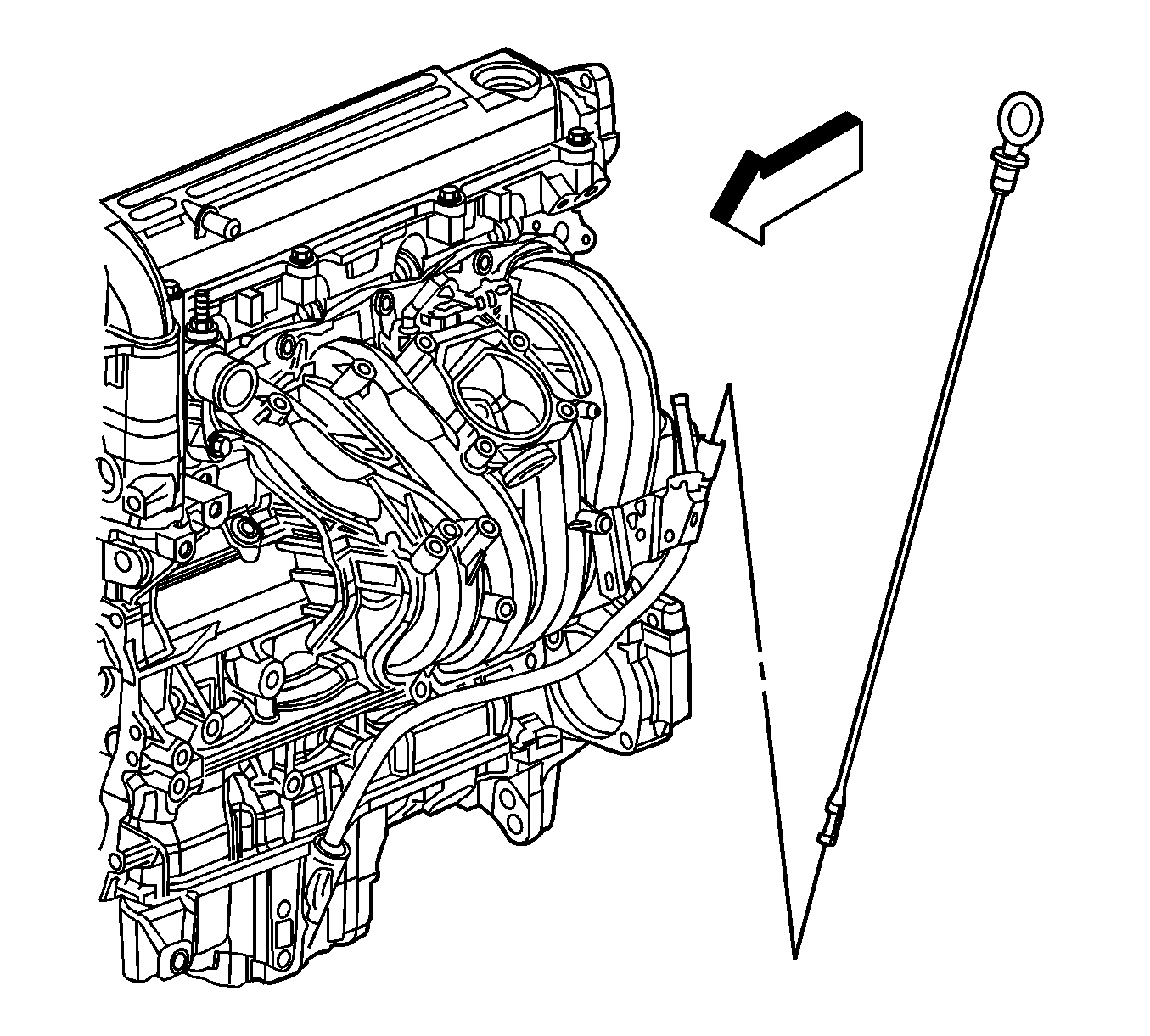

    5. Fig 3: Oil Level Indicator
    GM1571745Courtesy of GENERAL MOTORS CORP.
  5. Install the oil level indicator.
  6. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
