Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

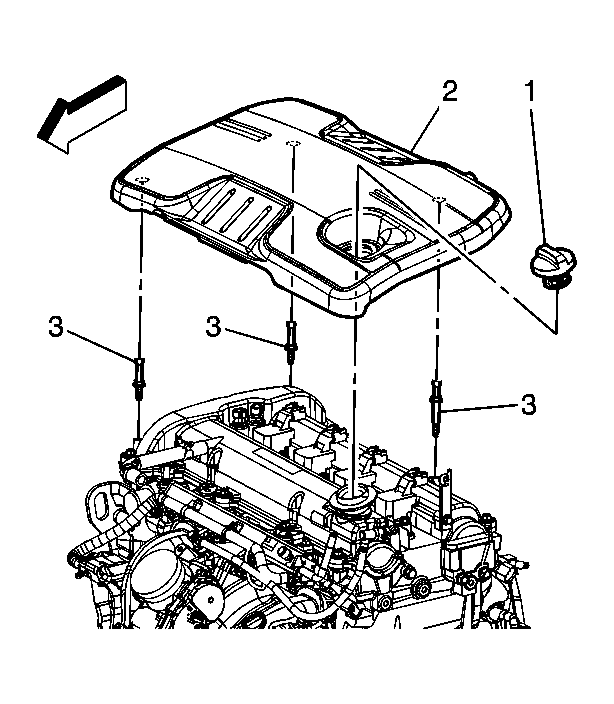

    Fig 1: View Of Intake Manifold Cover
    GM1902500Courtesy of GENERAL MOTORS CORP.
  1. Align the cover (2) to the studs (3) on the engine, push down on the cover above the studs in order to engage the cover to the studs.
  2. Install the engine oil fill cap (1).
