Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

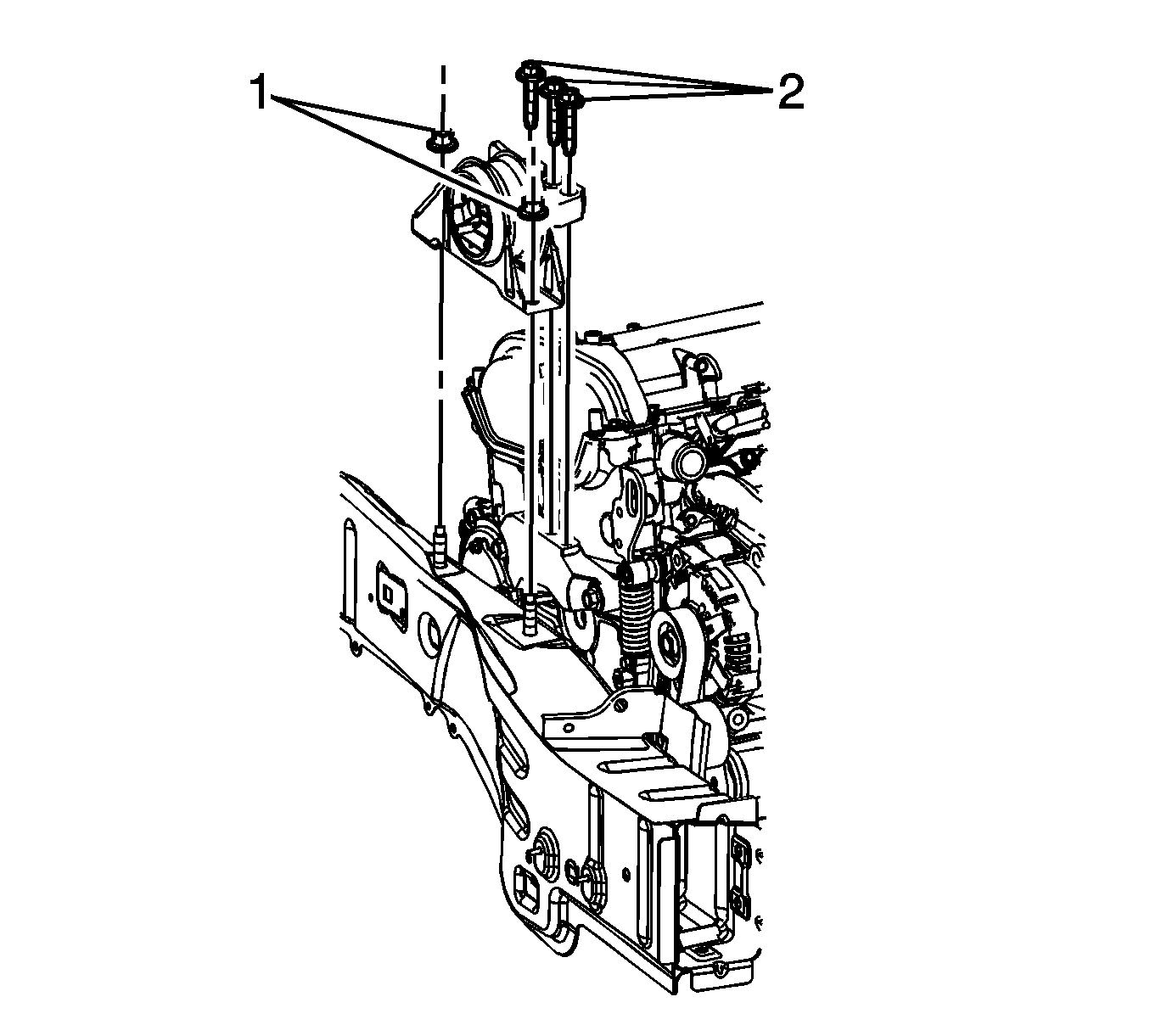

    Fig 1: Engine Mount To Bracket Bolts
    GM1810250Courtesy of GENERAL MOTORS CORP.
  1. Place the engine mount onto the side rail studs.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the engine mount to side rail nuts (1) and tighten to 85 N.m (63 lb ft).
    3. NOTE: The engine mount to bracket bolts must be hand started. Do not pry the engine mount to align the holes.
  3. Install the engine mount to bracket bolts (2).
  4. Tighten the engine mount to bracket bolts in the following sequence:
    • Middle
    • Rear
    • Front

      Tighten the bolts to 50 N.m (37 lb ft).

  5. Remove the hydraulic floor jack from under the oil pan.
  6. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
