Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

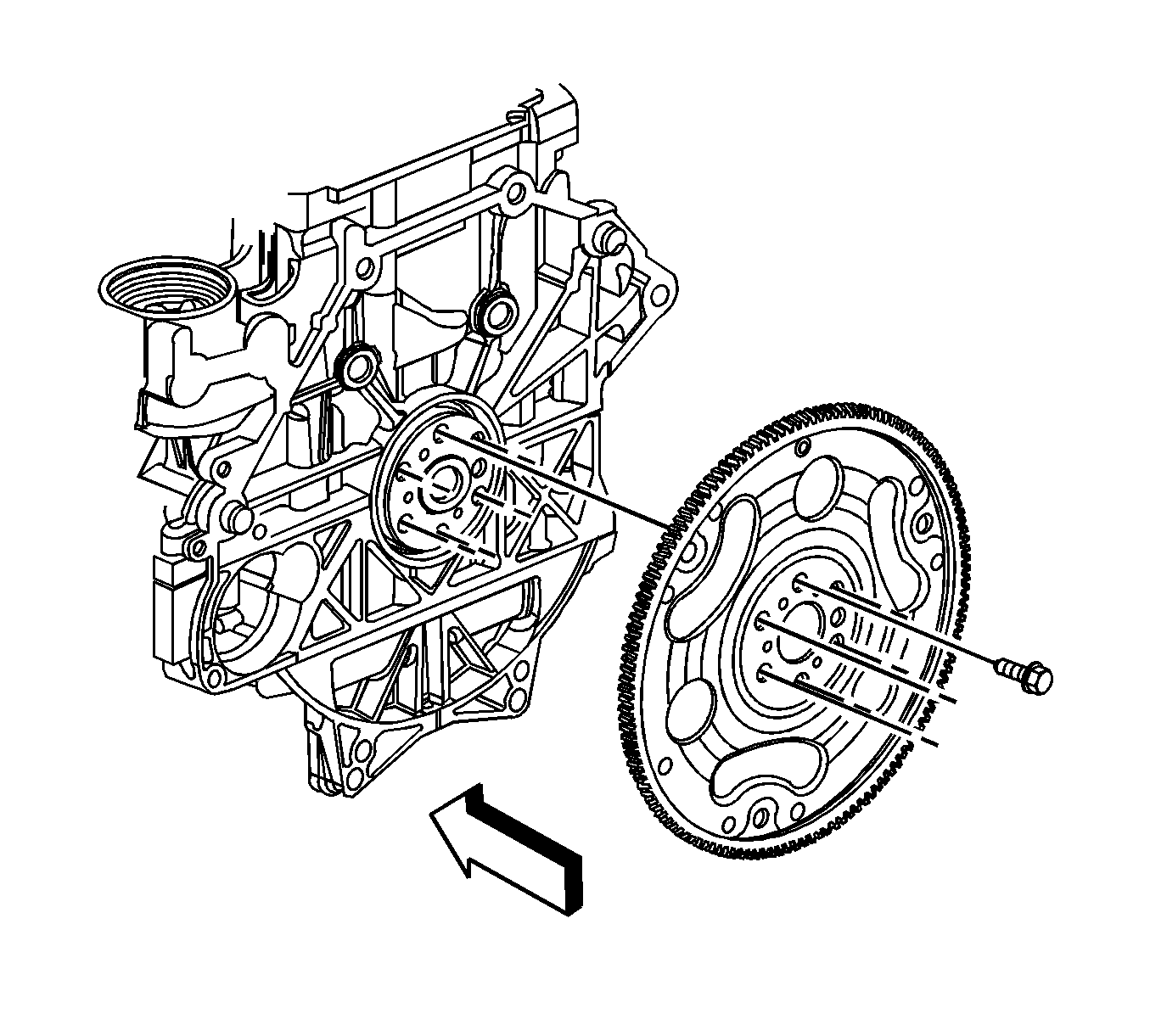

    Fig 1: View Of Flywheel (Automatic Transaxle)
    GM1578311Courtesy of GENERAL MOTORS CORP.
  1. Install the automatic transaxle flywheel, if equipped.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the NEW automatic transaxle flywheel bolts, if equipped and tighten to 53 N.m (39 lb ft) plus an additional 25 degrees using the J 45059  . See Special Tools .
  3. Remove the J 38122-A  . See Special Tools .
  4. Install the transaxle. Refer to Transmission Replacement .
