Intake Manifold Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

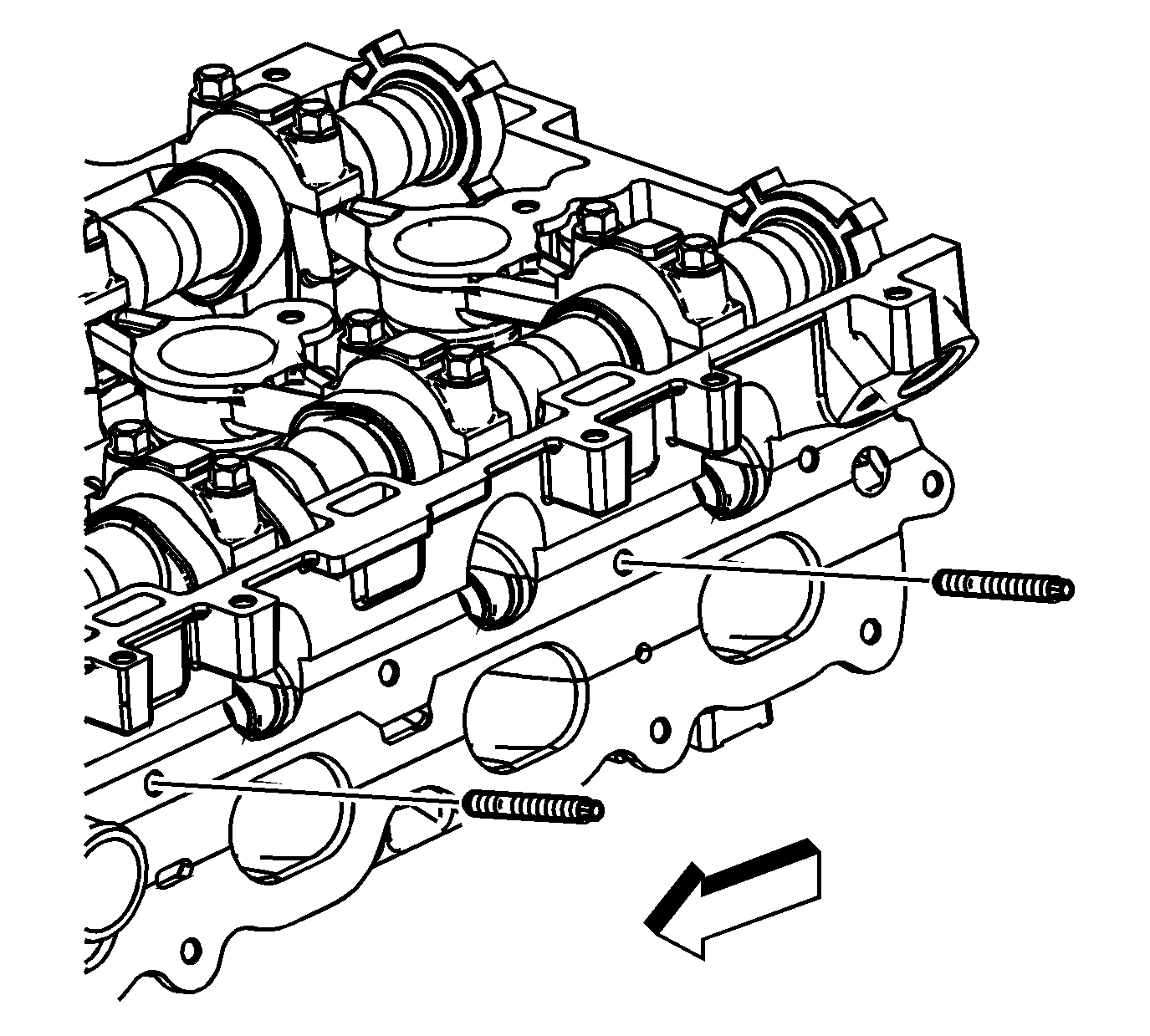

Fig 1: Intake Manifold Studs

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the intake manifold studs in the manifold face and tighten to 6 N.m (53 lb in).

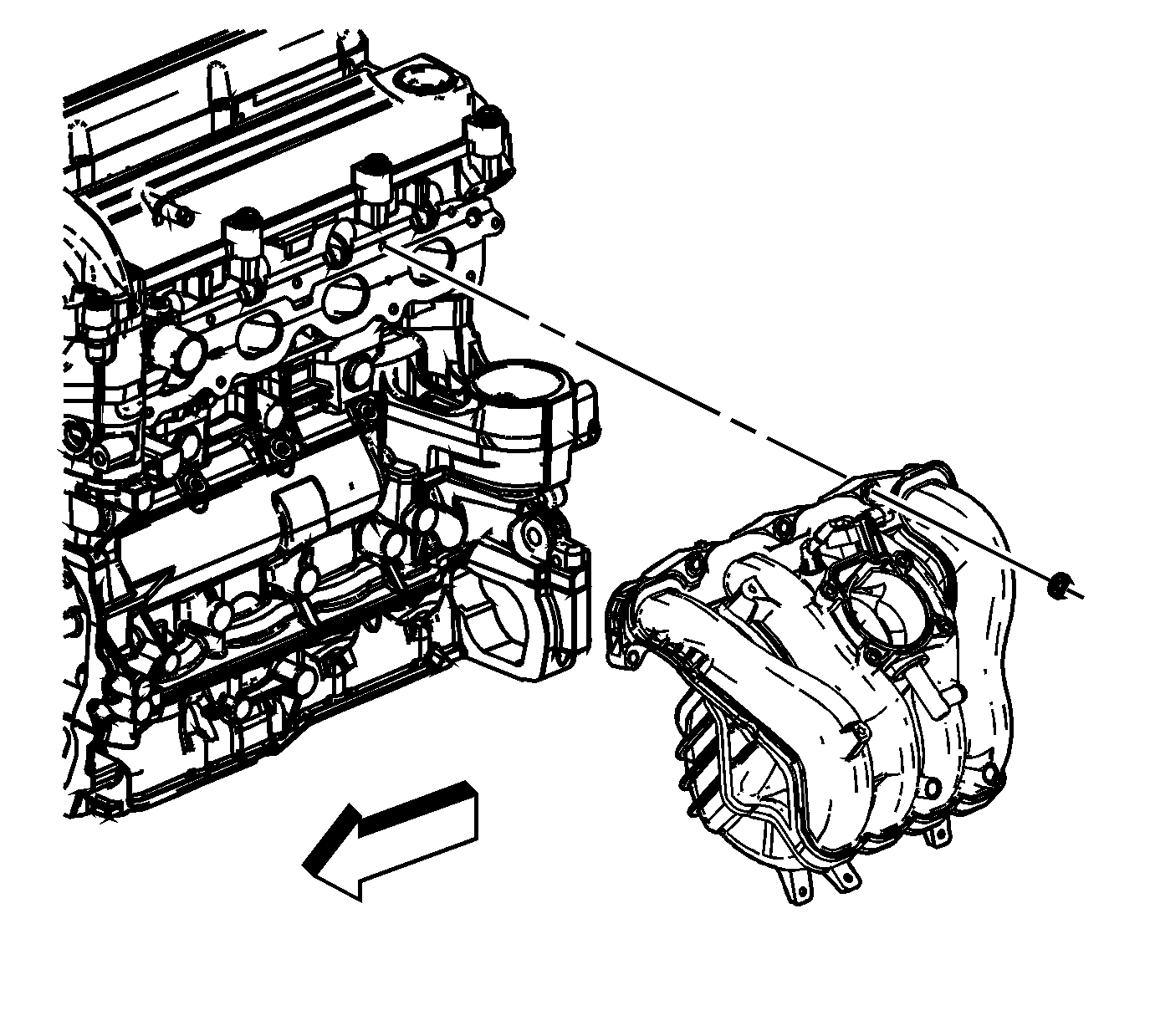

Fig 2: View Of Intake Manifold

Courtesy of GENERAL MOTORS CORP.

Install a new intake manifold gasket on the intake manifold.
Install the intake manifold.
Install the intake manifold bolts and nuts finger tight.

Fig 3: Identifying Intake Manifold Bolt & Nut Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

Tighten the intake manifold bolts and nuts in sequence to 10 N.m (89 lb in).

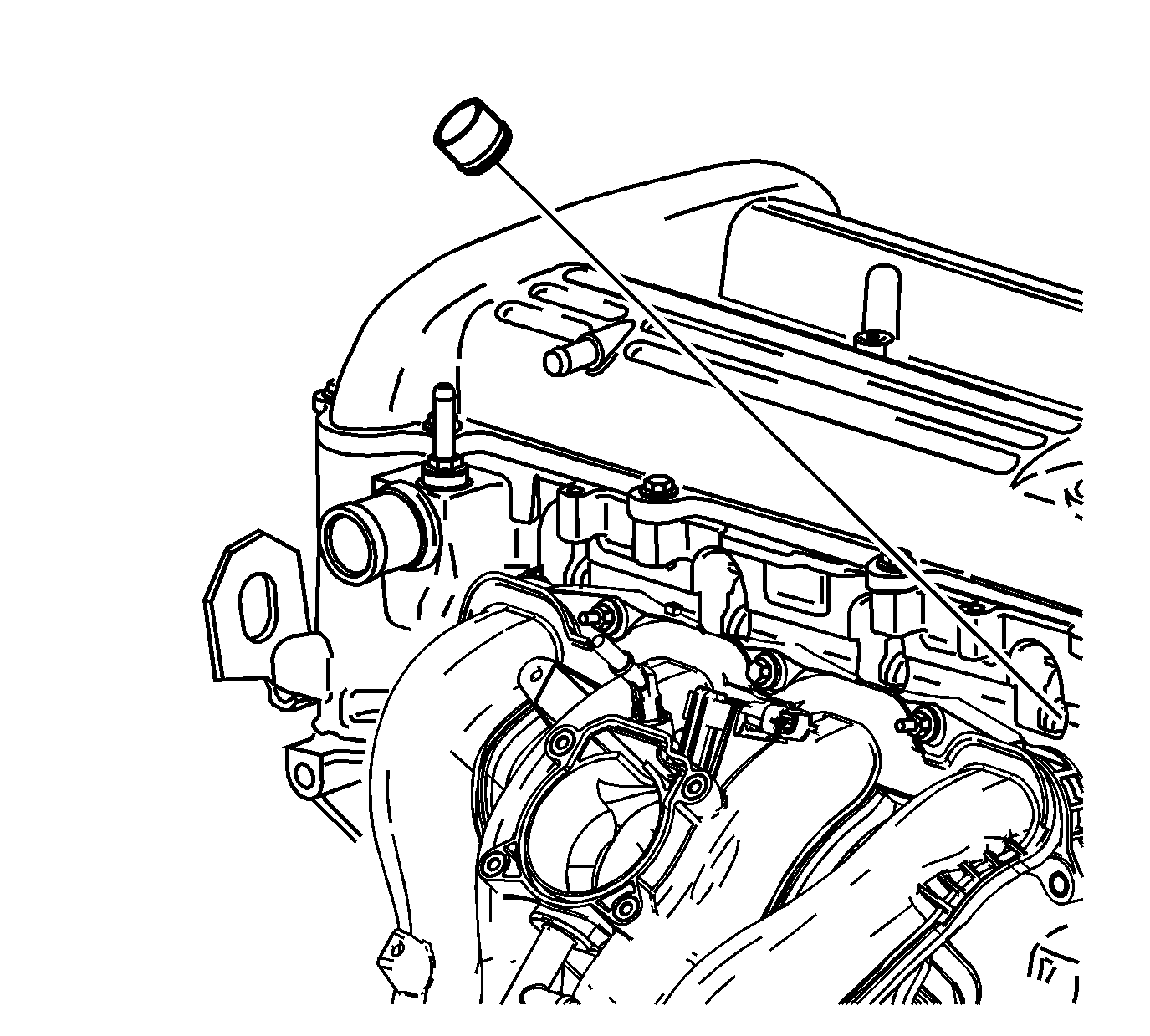

Fig 4: View Of Fuel Injector Tip Insulators

Courtesy of GENERAL MOTORS CORP.

Lubricate NEW fuel injector tip insulators with engine oil.
Install NEW fuel injector tip insulators.

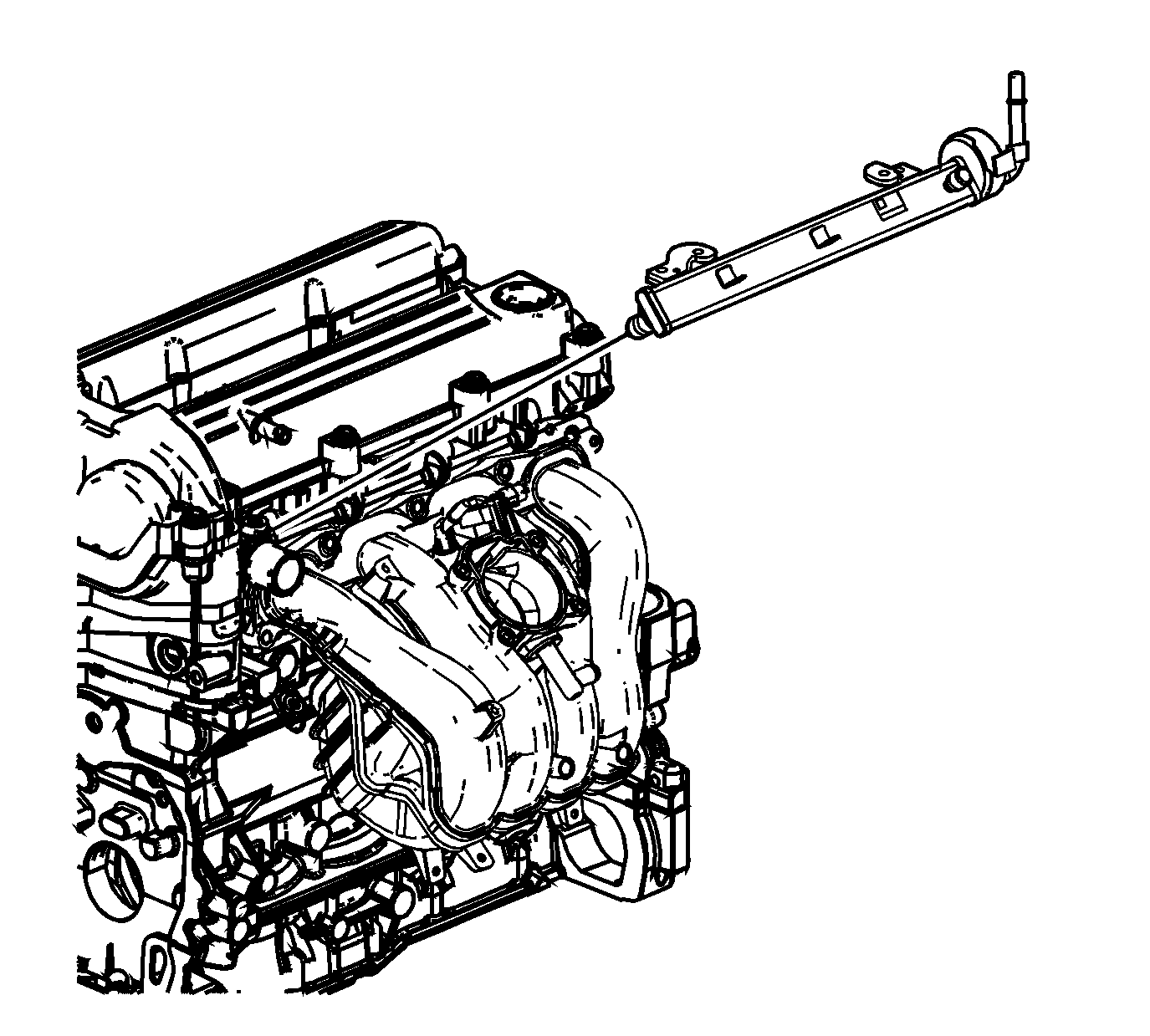

Fig 5: View Of Fuel Rail Assembly

Courtesy of GENERAL MOTORS CORP.

Lubricate the fuel injector oil rings with engine oil.
Install the fuel rail assembly.
Install the fuel rail fastener and tighten to 10 N.m (89 lb in).

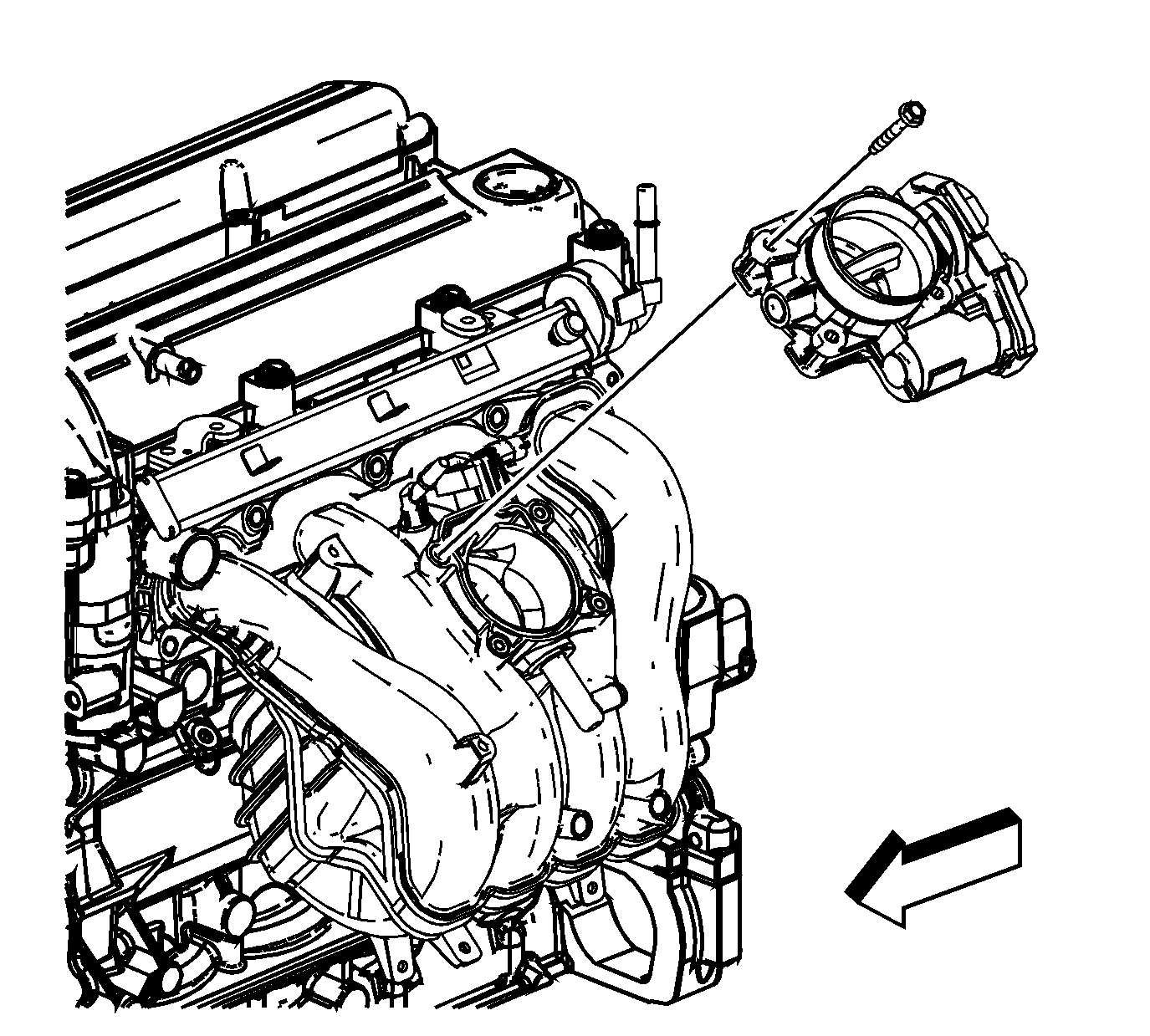

Fig 6: View Of Throttle Body

Courtesy of GENERAL MOTORS CORP.

Install a new throttle body gasket.
Install the throttle body.
Install the throttle body bolts and tighten to 10 N.m (89 lb in).

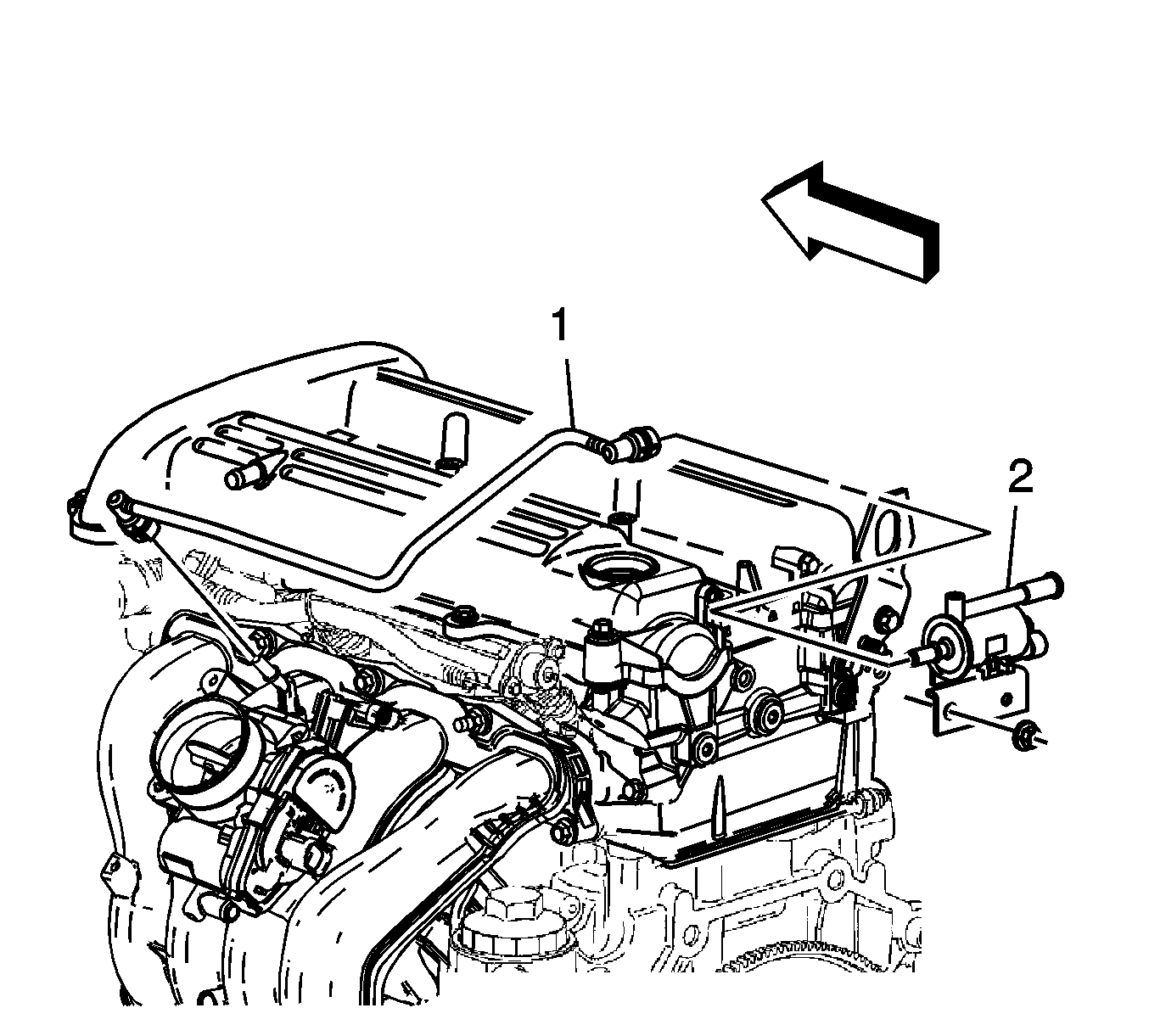

Fig 7: View of Intake Manifold

Courtesy of GENERAL MOTORS CORP.

Install the EVAP canister valve (2) and tighten to 25 N.m (18 lb ft).
Install the EVAP canister valve tube (1).
