Engine Block Assemble

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Oil Passage Plug, Oil Flow Check Valve & Water Jacket Drain Plug
    GM412447Courtesy of GENERAL MOTORS CORP.
  1. Install the drain plug in the water pump.
  2. Apply GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the plug before installation.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the coolant jacket plugs and tighten to 35 N.m (26 lb ft).
  4. Apply GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the plugs before installation.
  5. Install the rear oil passage plugs and tighten to 60 N.m (44 lb ft).
  6. Apply GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the plug before installation.
  7. Install the other oil passage plugs and tighten to 35 N.m (26 lb ft).
    8. Fig 2: View Of Crankshaft Position Sensor
    GM630345Courtesy of GENERAL MOTORS CORP.
  8. Lubricate the crankshaft position sensor O-ring with engine oil.
  9. Install the crankshaft position sensor and bolt and tighten to 10 N.m (89 lb in).
    10. Fig 3: View Of Engine Oil Pressure Sensor
    GM630350Courtesy of GENERAL MOTORS CORP.
  10. Install the oil pressure switch and tighten to 26 N.m (19 lb ft).

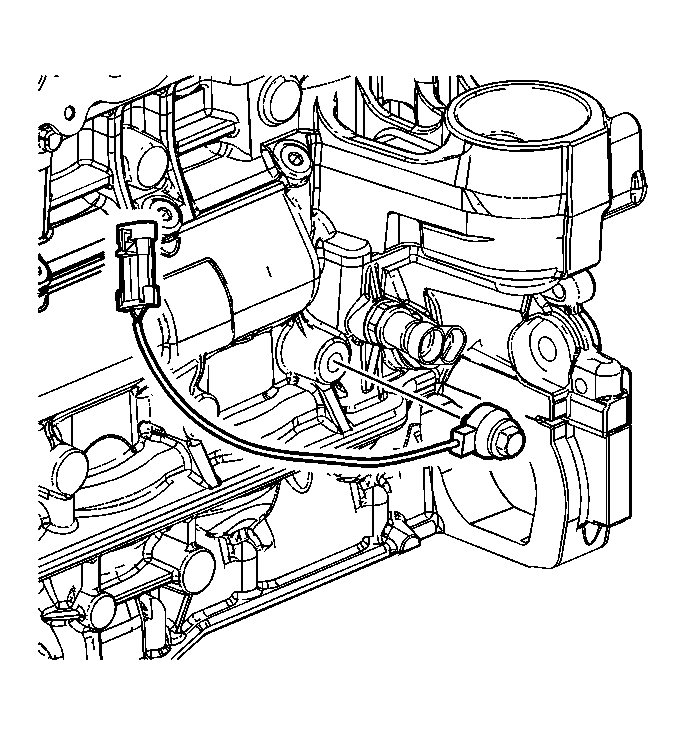

    11. Fig 4: View Of Knock Sensor & Bolt
    GM1977766Courtesy of GENERAL MOTORS CORP.
  11. Install the knock sensor and bolt and tighten to 25 N.m (18 lb ft).
    12. Fig 5: Piston Oil Squirter
    GM1594334Courtesy of GENERAL MOTORS CORP.
  12. Install the piston oil nozzle assemblies, if equipped.
  13. Install the piston oil nozzle assembly bolts and tighten to 15 N.m (11 lb ft).
