Release Systems Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

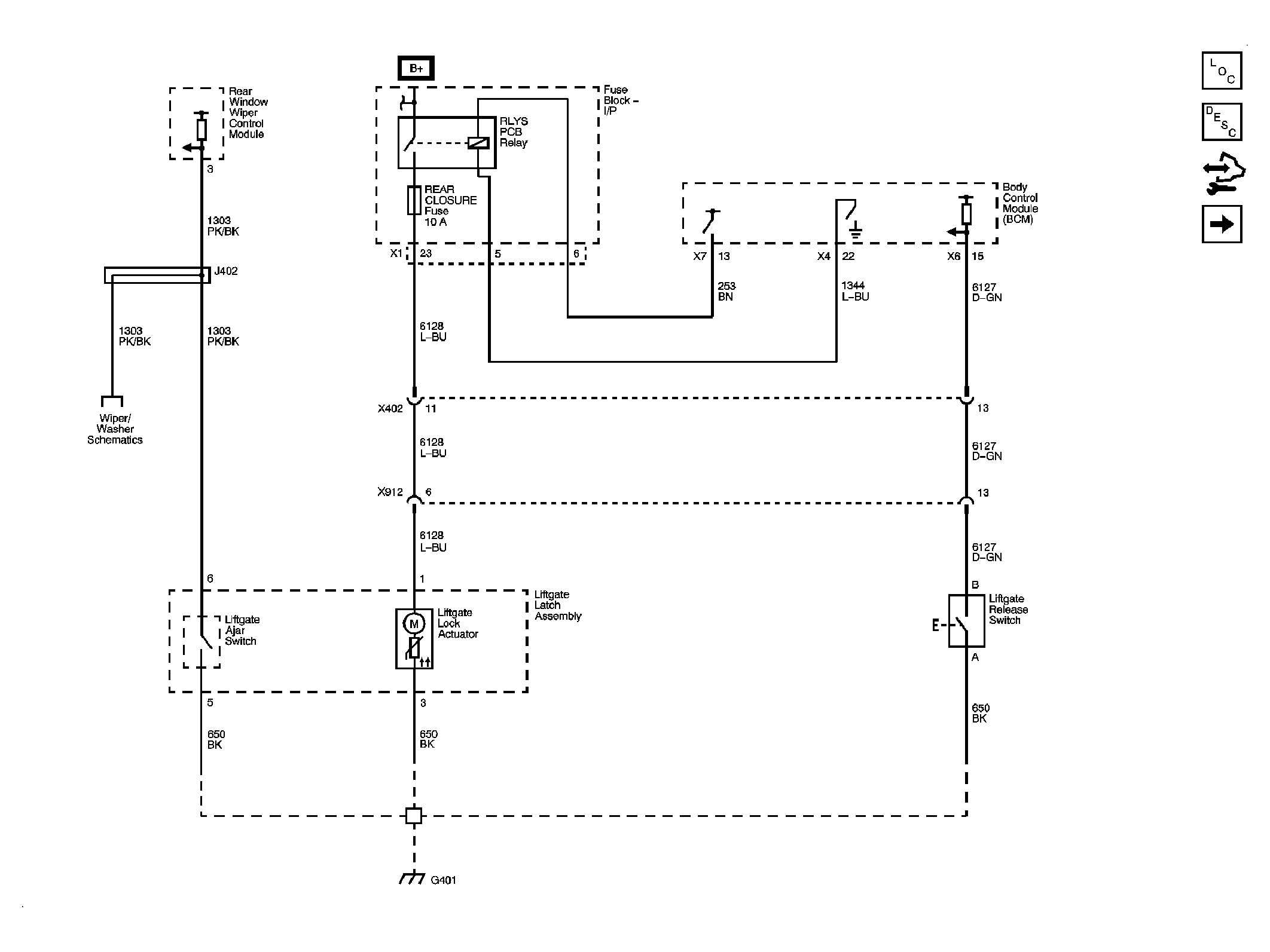

Fig 1: Liftgate Latch Actuator
GM2079498Courtesy of GENERAL MOTORS CORP.
Fig 2: Liftgate Release System
GM2079502Courtesy of GENERAL MOTORS CORP.
