Opening the Liftgate Without Electrical Power

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

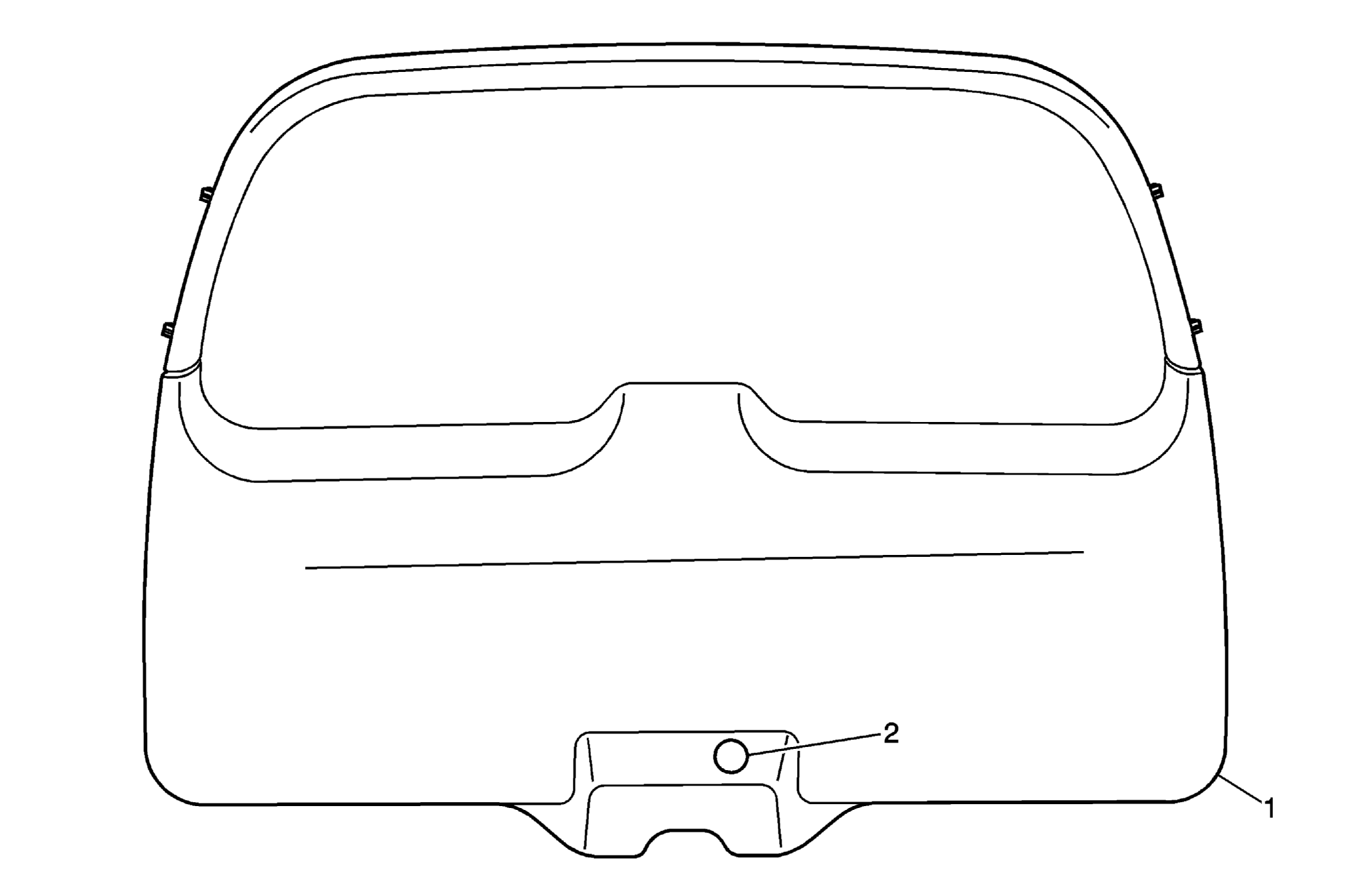

Fig 1: View Of Liftgate & Trim Panel Plug

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate
2	Liftgate Trim Panel Plug Procedure Locate dimple on trim panel. Remove the access cover. Using a flat-bladed tool push down on the black bellcrank lever, through the access hole, to unlock the liftgate. Push open the liftgate from the inside. Install the access cover.

Callout

Component Name

Liftgate

Liftgate Trim Panel Plug

Procedure

Locate dimple on trim panel.
Remove the access cover.
Using a flat-bladed tool push down on the black bellcrank lever, through the access hole, to unlock the liftgate.
Push open the liftgate from the inside.
Install the access cover.
