Ground Distribution Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

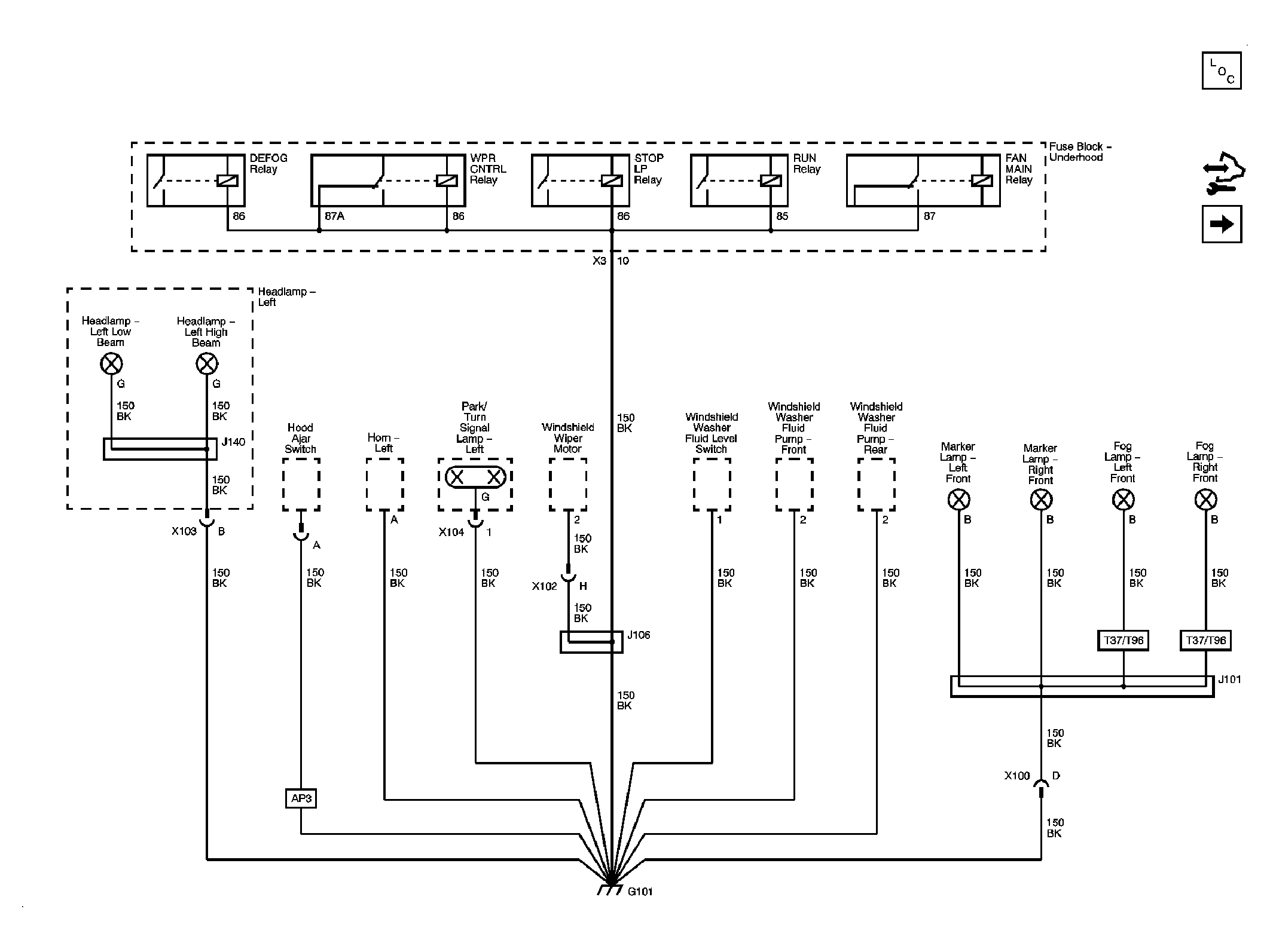

Fig 1: G101

Courtesy of GENERAL MOTORS CORP.

Fig 2: G102, G103 and G105

Courtesy of GENERAL MOTORS CORP.

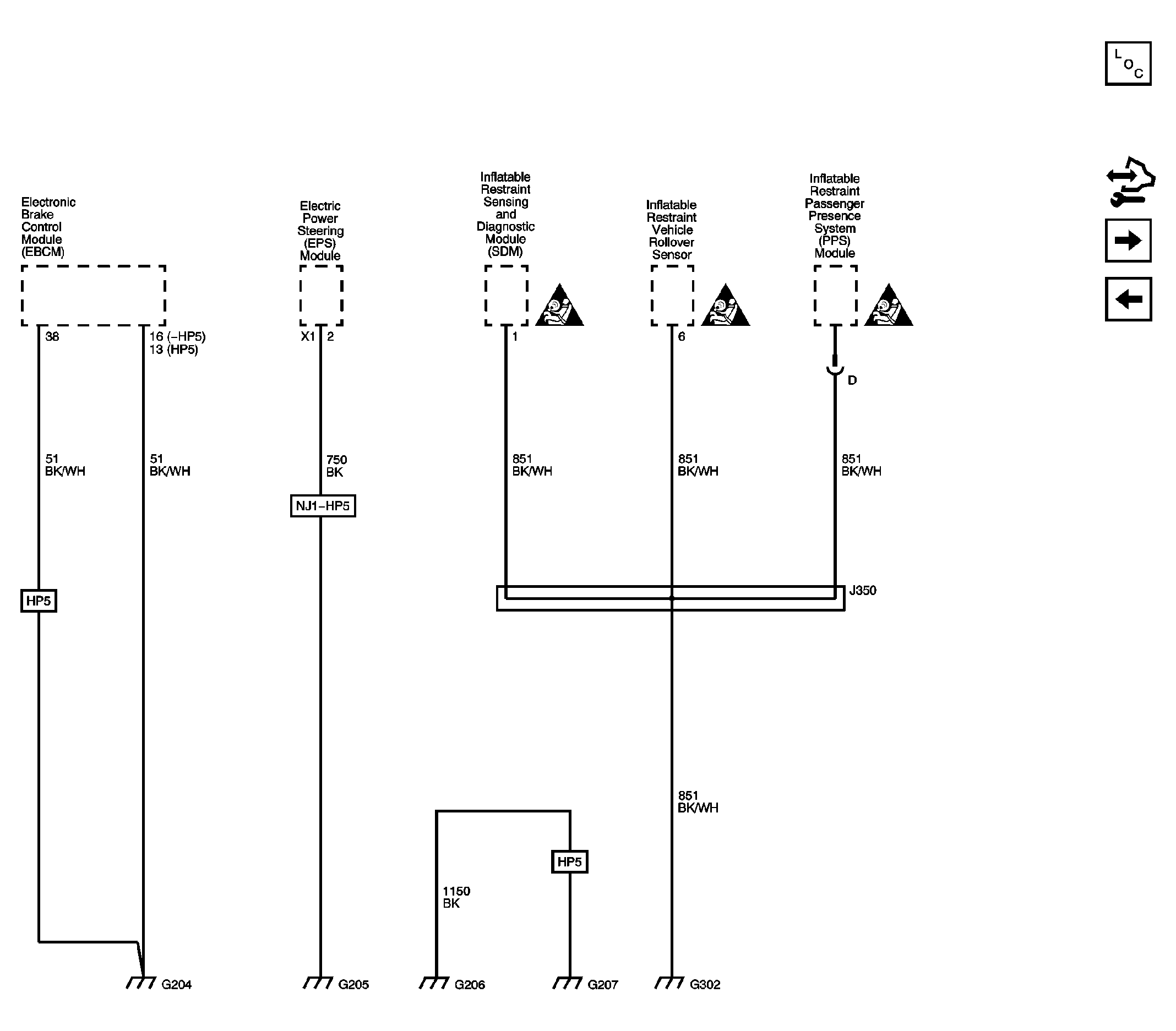

Fig 3: G106 (LAT and LE5)

Courtesy of GENERAL MOTORS CORP.

Fig 4: G106 (LY7 and LZ4)

Courtesy of GENERAL MOTORS CORP.

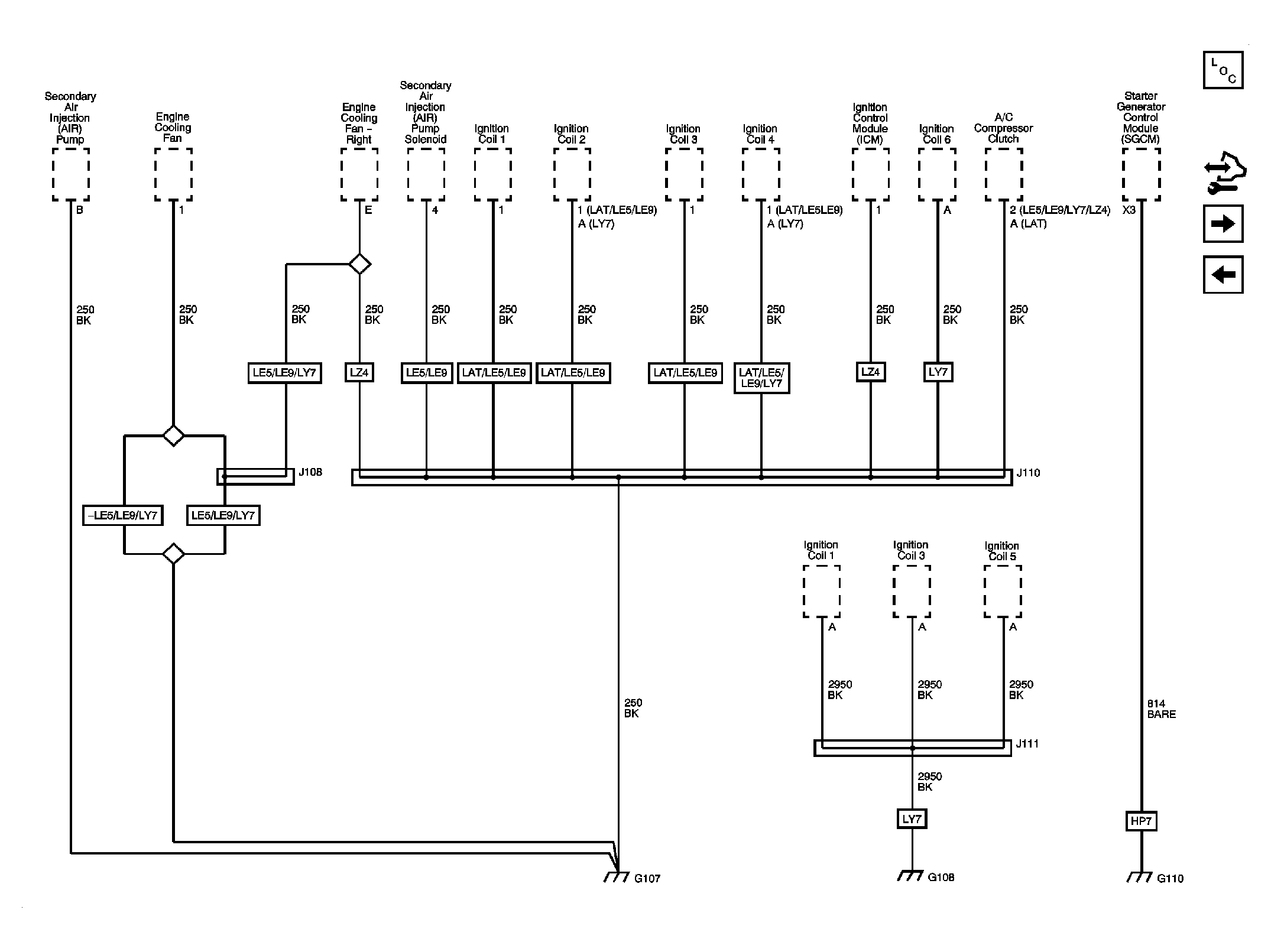

Fig 5: G107 and G108

Courtesy of GENERAL MOTORS CORP.

Fig 6: G106, G107, G108, and G110 (HP5)

Courtesy of GENERAL MOTORS CORP.

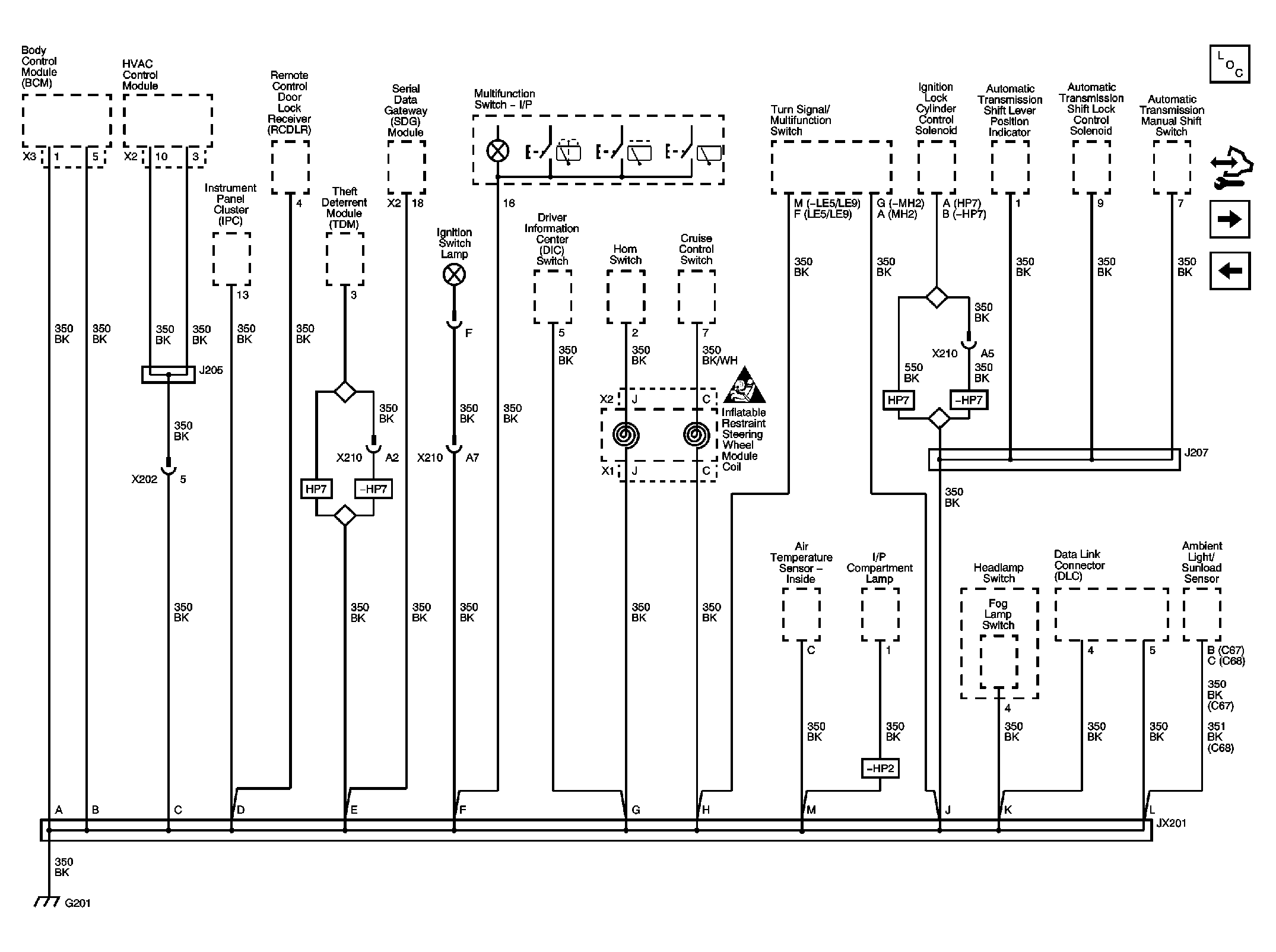

Fig 7: G201

Courtesy of GENERAL MOTORS CORP.

Fig 8: G202 and G203

Courtesy of GENERAL MOTORS CORP.

Fig 9: G204, G205, G206, G207 and G302

Courtesy of GENERAL MOTORS CORP.

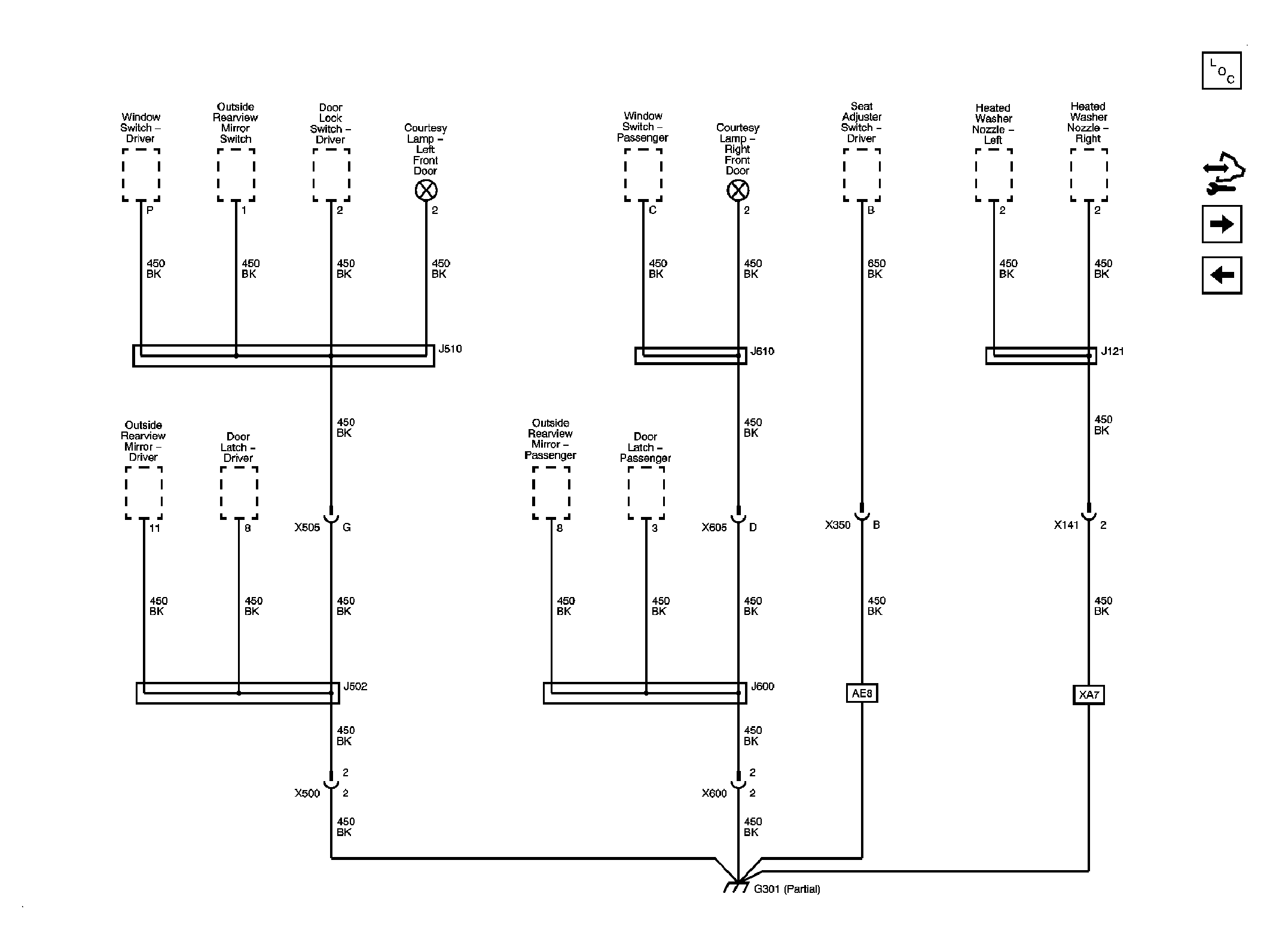

Fig 10: G301 - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 11: G301 - 2 of 2

Courtesy of GENERAL MOTORS CORP.

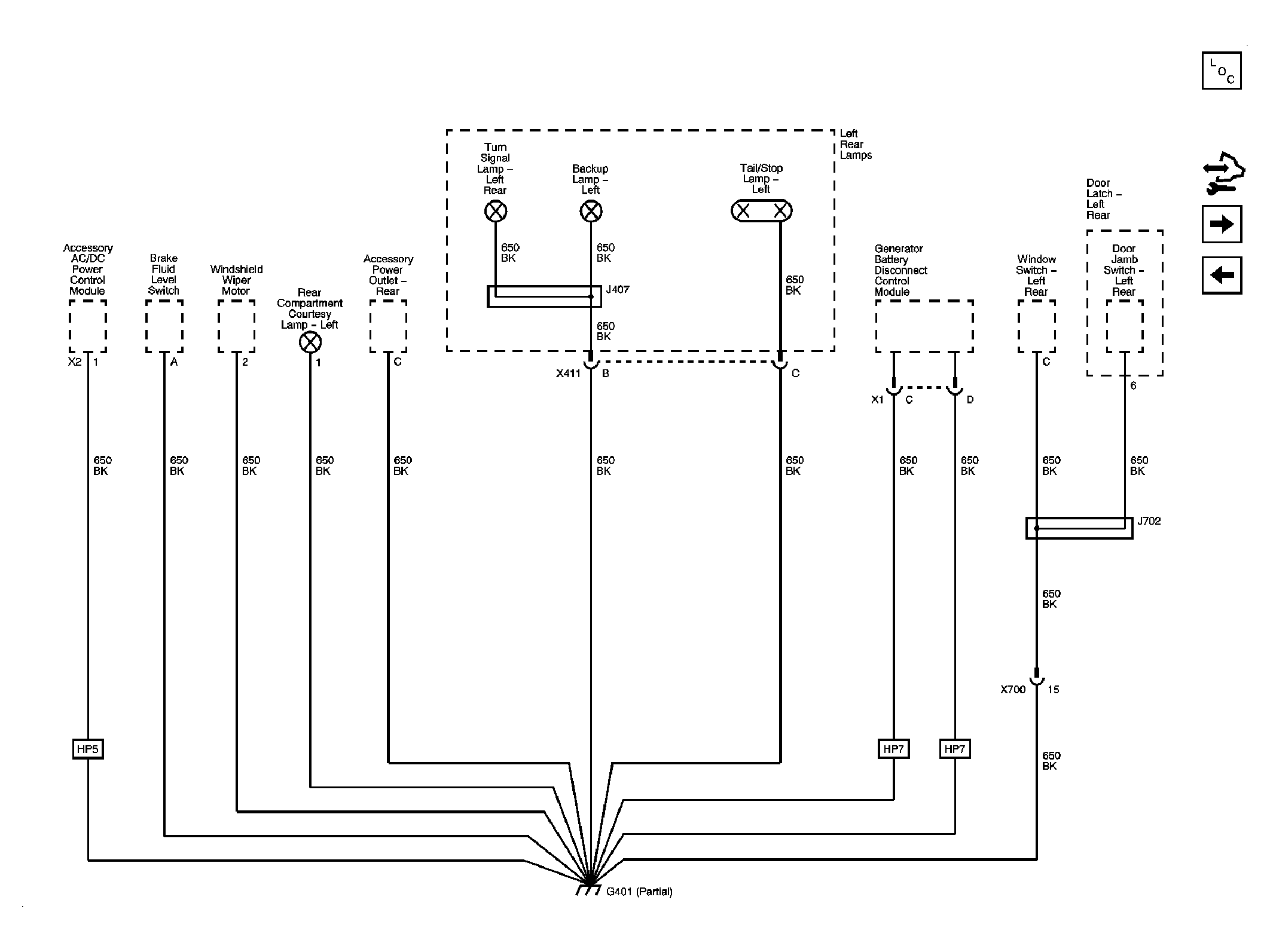

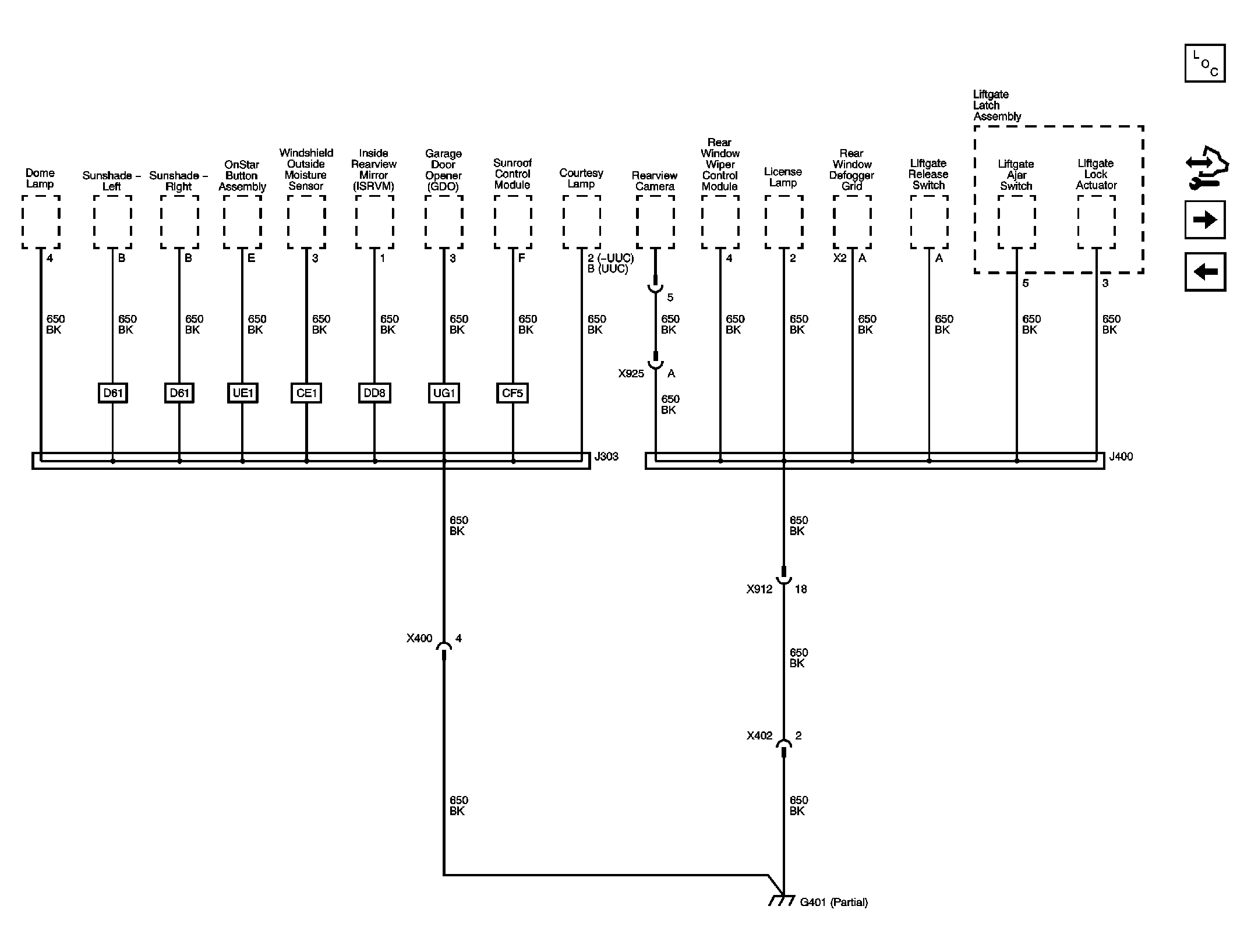

Fig 12: G401 - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 13: G401 - 2 of 2

Courtesy of GENERAL MOTORS CORP.

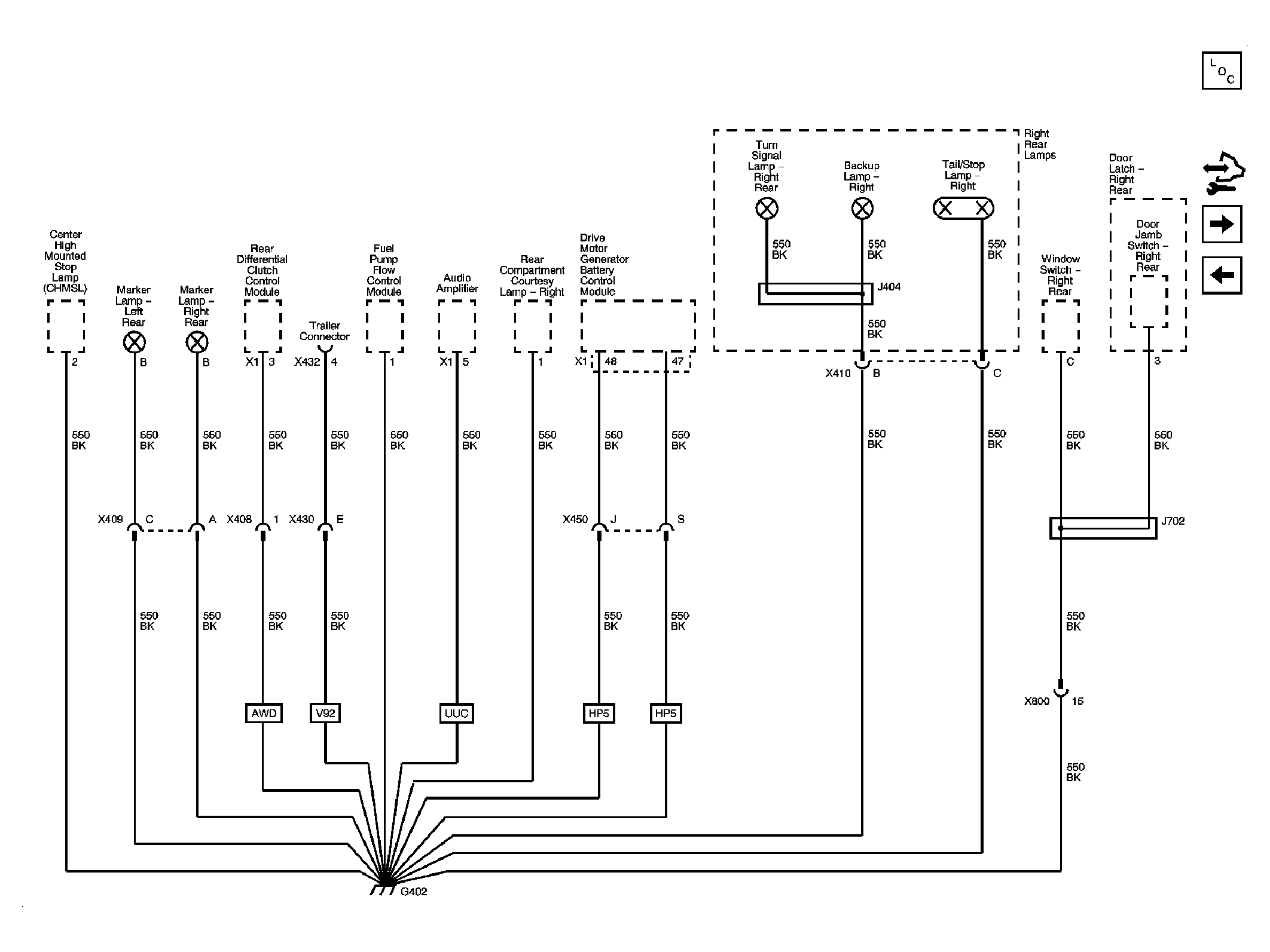

Fig 14: G402

Courtesy of GENERAL MOTORS CORP.

Fig 15: G403, G404, G405 (HP5/HP7)

Courtesy of GENERAL MOTORS CORP.
