Instrument Panel Wiring Harness Junction Block Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

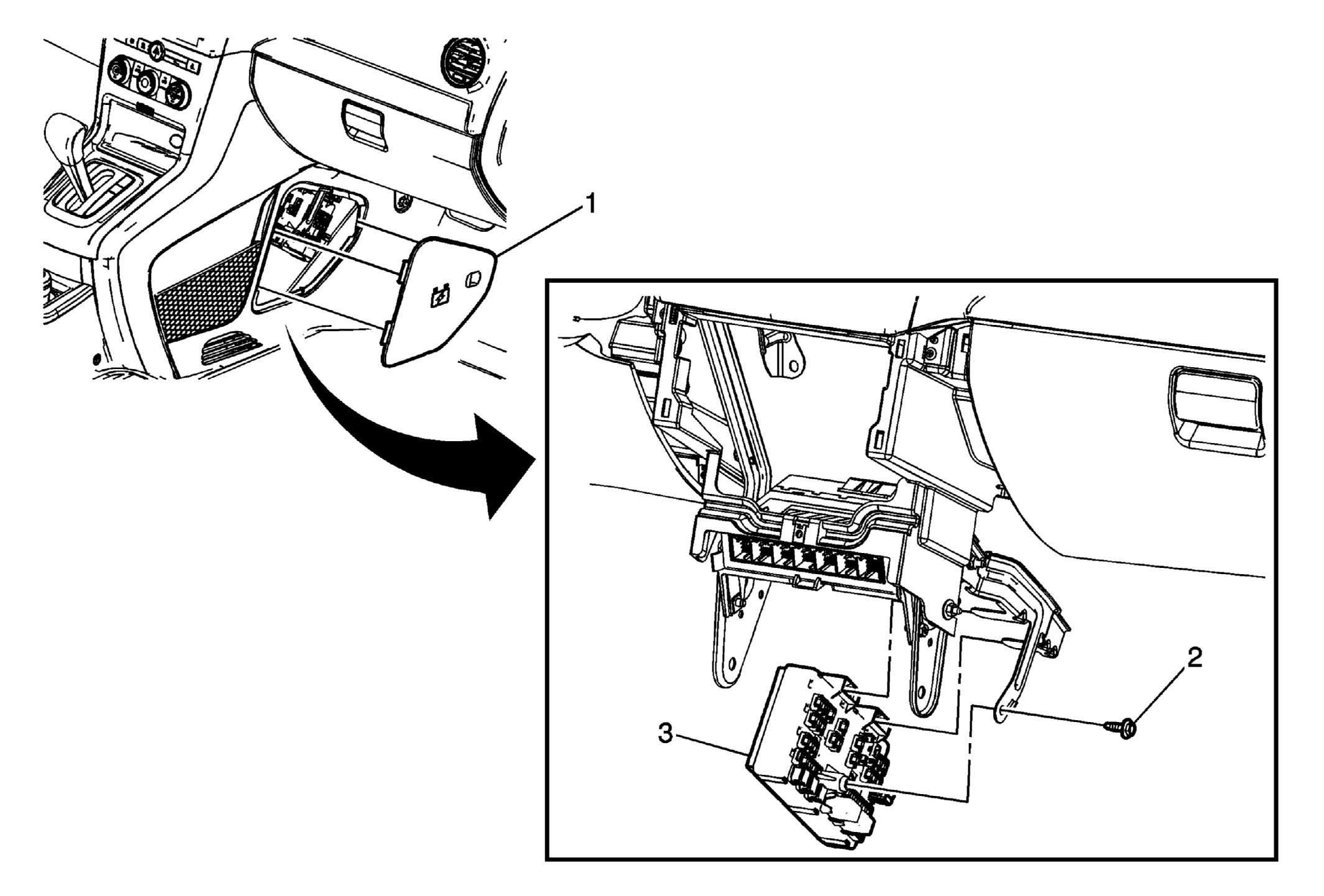

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Fuse Block Accessory Door |
| 2 | Instrument Panel Wiring Harness Junction Block Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 3 | Instrument Panel Wiring Harness Junction Block Assembly Procedure: Disconnect the electrical connector. |
