Instrument Cluster Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

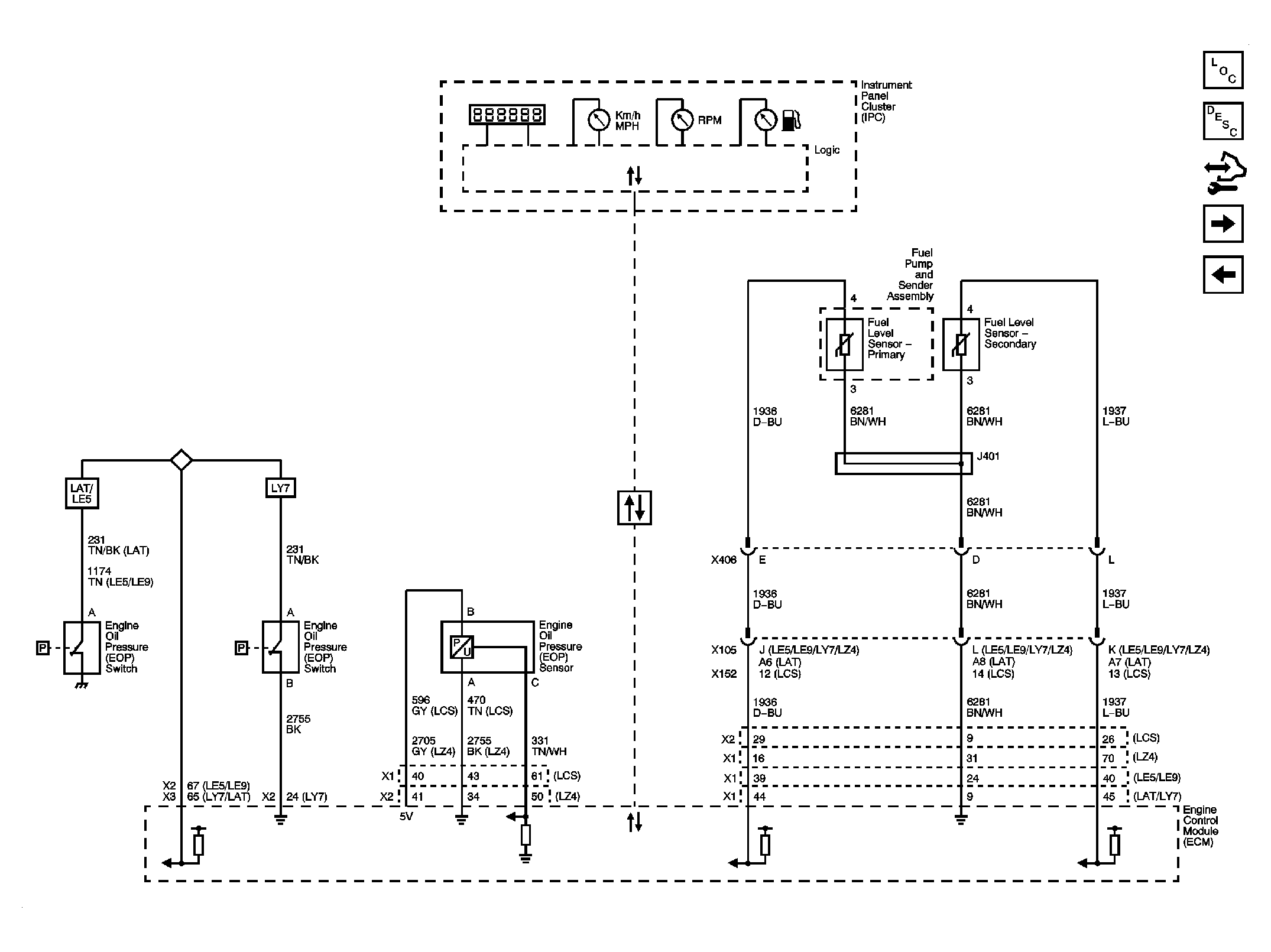

Fig 1: Instrument Panel Displays

Courtesy of GENERAL MOTORS CORP.

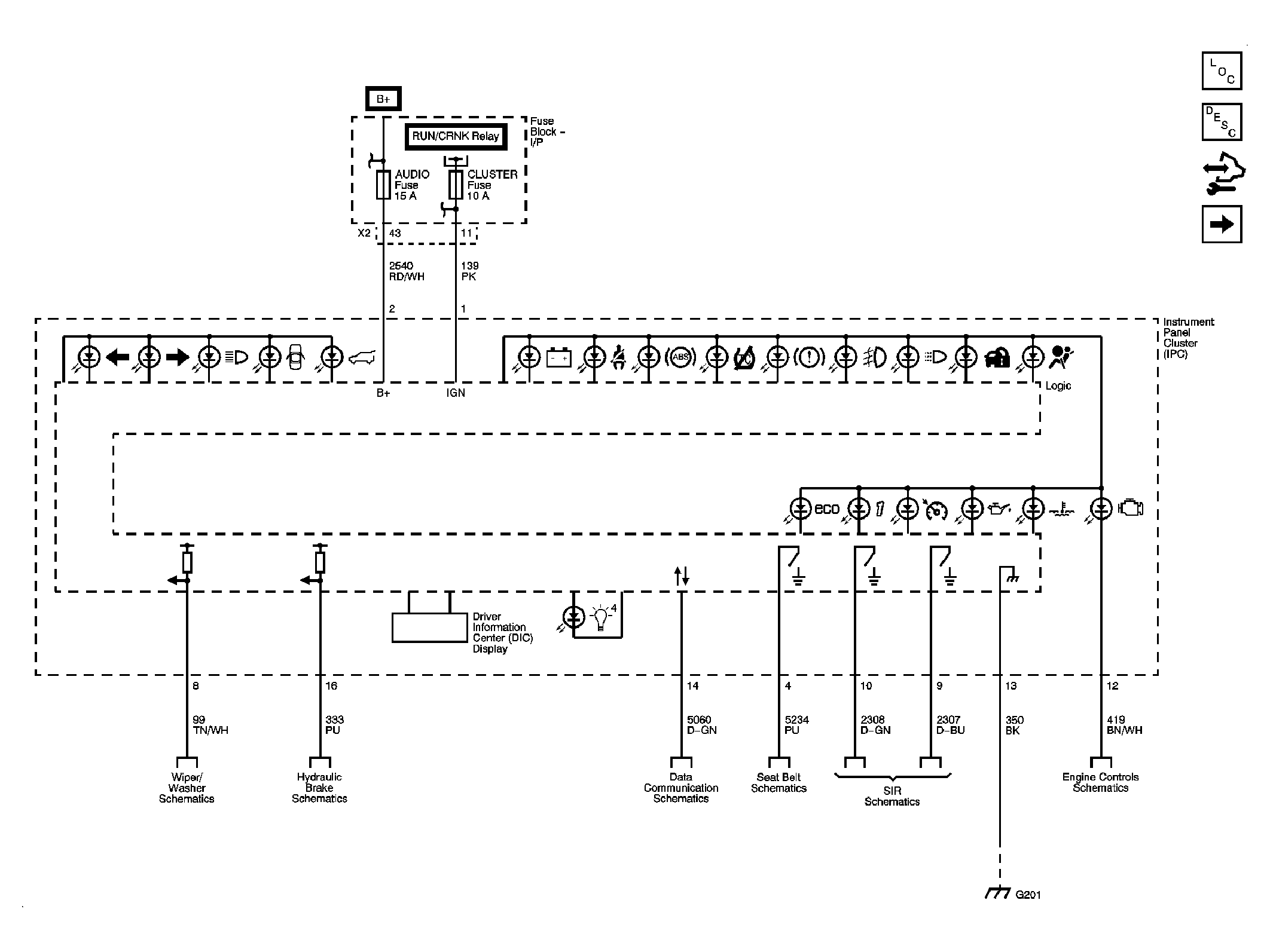

Fig 2: Instrument Panel Cluster - Gages

Courtesy of GENERAL MOTORS CORP.

Fig 3: Compass

Courtesy of GENERAL MOTORS CORP.

Fig 4: Driver Information Center (DIC) Switch

Courtesy of GENERAL MOTORS CORP.

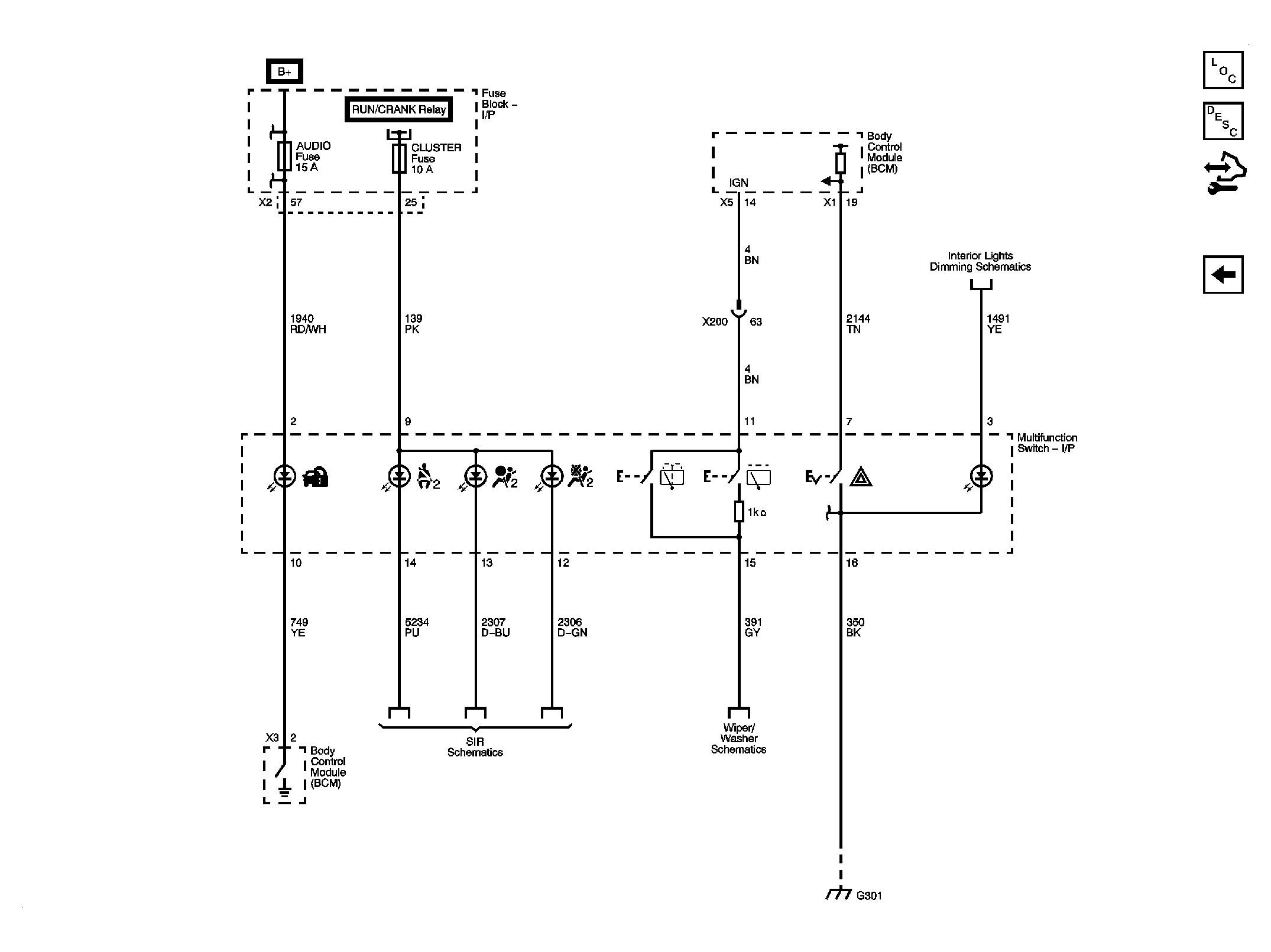

Fig 5: Multifunction Switch - I/P

Courtesy of GENERAL MOTORS CORP.
