Electronic Compass Module Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

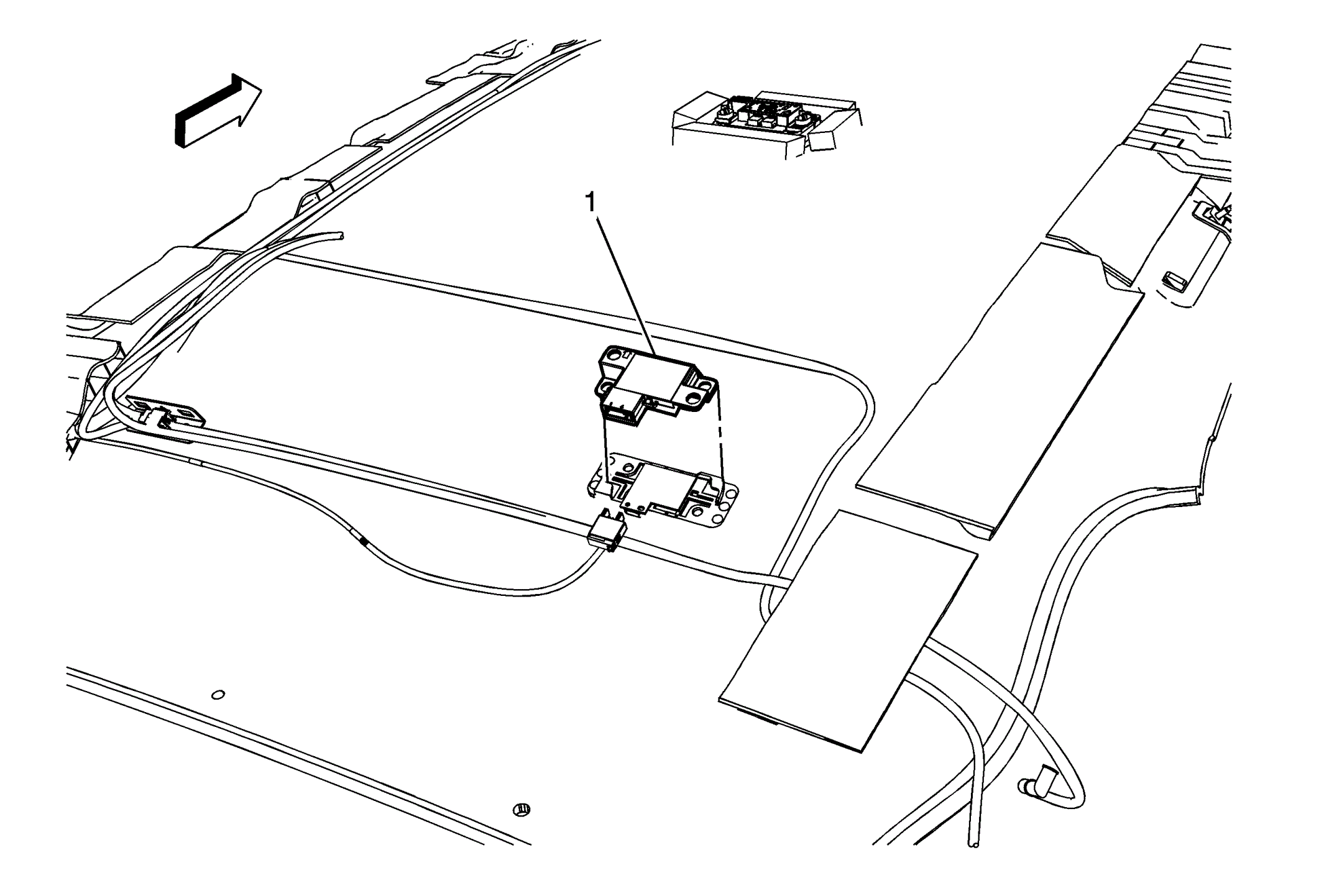

Fig 1: Electronic Compass Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lower the Headlining Trim Panel. Refer to Headlining Trim Panel Replacement .
1	Electronic Compass Module Procedure Disconnect the electrical connectors. For programming and set up information, refer to Control Module References . Unsnap the electronic compass module from the bracket.

Callout

Component Name

Preliminary Procedure:
Lower the Headlining Trim Panel. Refer to Headlining Trim Panel Replacement .

Electronic Compass Module

Procedure

Disconnect the electrical connectors.
For programming and set up information, refer to Control Module References .
Unsnap the electronic compass module from the bracket.
