Turn Signal Switch Bracket Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

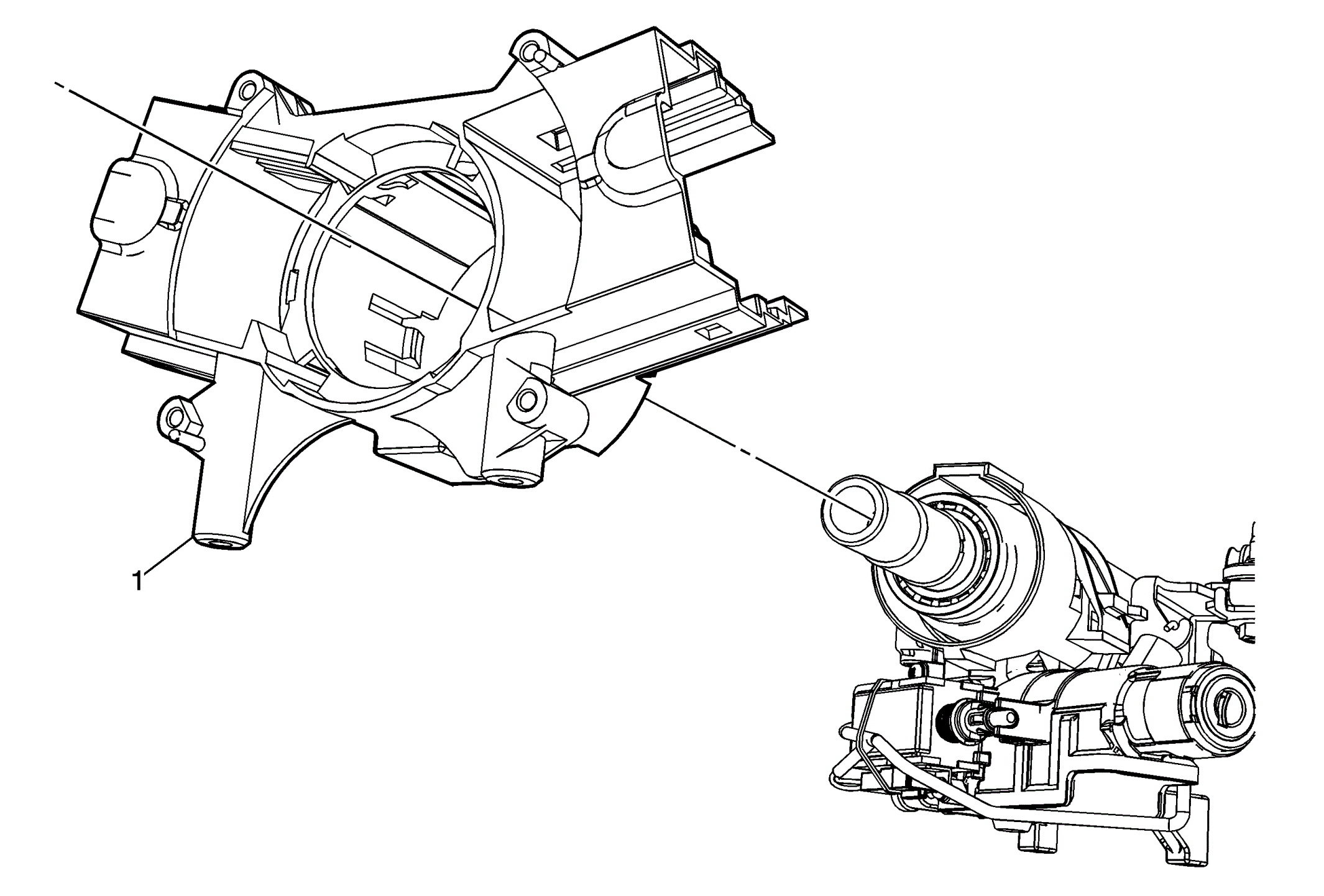

Fig 1: View Of Multifunction Turn Signal Switch Housing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the inflatable restraint steering wheel module coil. Refer to Steering Wheel Inflatable Restraint Module Coil Replacement . Remove the turn signal multifunction switch. Refer to Turn Signal Multifunction Switch Replacement . Remove the windshield wiper and washer switch. Refer to Windshield Wiper and Washer Switch Replacement .
1	Turn Signal Switch Bracket Procedure: Release the 2 plastic retaining tabs and pull on the bracket to remove the turn signal switch bracket from the steering column.

Callout

Component Name

Preliminary Procedures

Remove the inflatable restraint steering wheel module coil. Refer to Steering Wheel Inflatable Restraint Module Coil Replacement .
Remove the turn signal multifunction switch. Refer to Turn Signal Multifunction Switch Replacement .
Remove the windshield wiper and washer switch. Refer to Windshield Wiper and Washer Switch Replacement .

Turn Signal Switch Bracket
Procedure:
Release the 2 plastic retaining tabs and pull on the bracket to remove the turn signal switch bracket from the steering column.
