Steering Column Jacket Replacement (With Electronic Power Steering)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

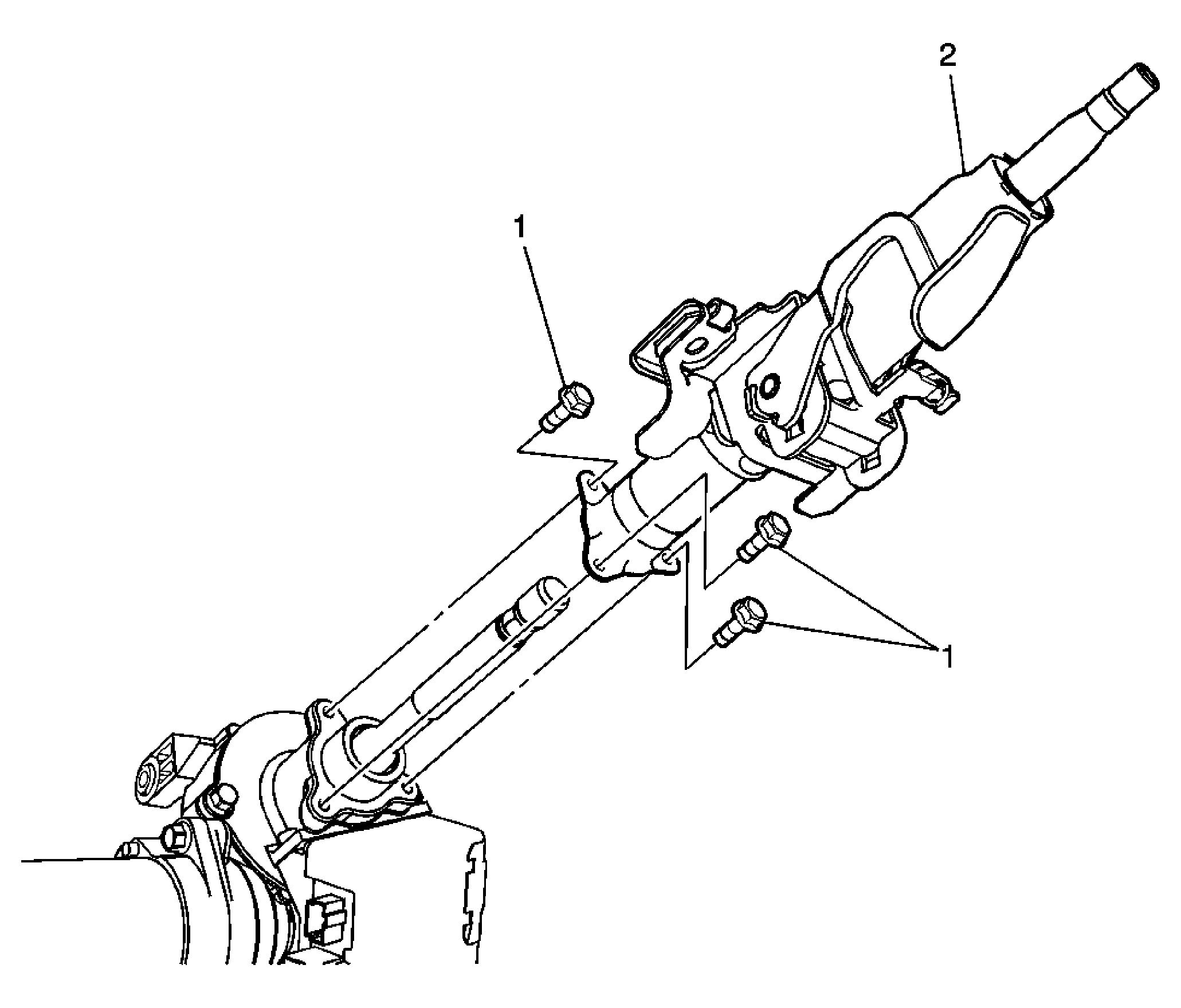

Fig 1: Steering Column Jacket
GM1867523Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the ignition and start switch housing. Refer to Ignition and Start Switch Housing Replacement (With Electronic Power Steering) or Ignition and Start Switch Housing Replacement (With Hydraulic Power Steering) .
1 Steering Column Jacket Bolt (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  11 N.m (97 lb in)
2 Steering Column Jacket

Procedure

  1. Remove the steering column upper and lower support bracket bolts and support the steering column while in the vehicle. Refer to Steering Column Replacement .
  2. Slide the steering column jacket over the steering column shaft.
  3. Transfer any parts as needed.
