Steering Angle Sensor Replacement (HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

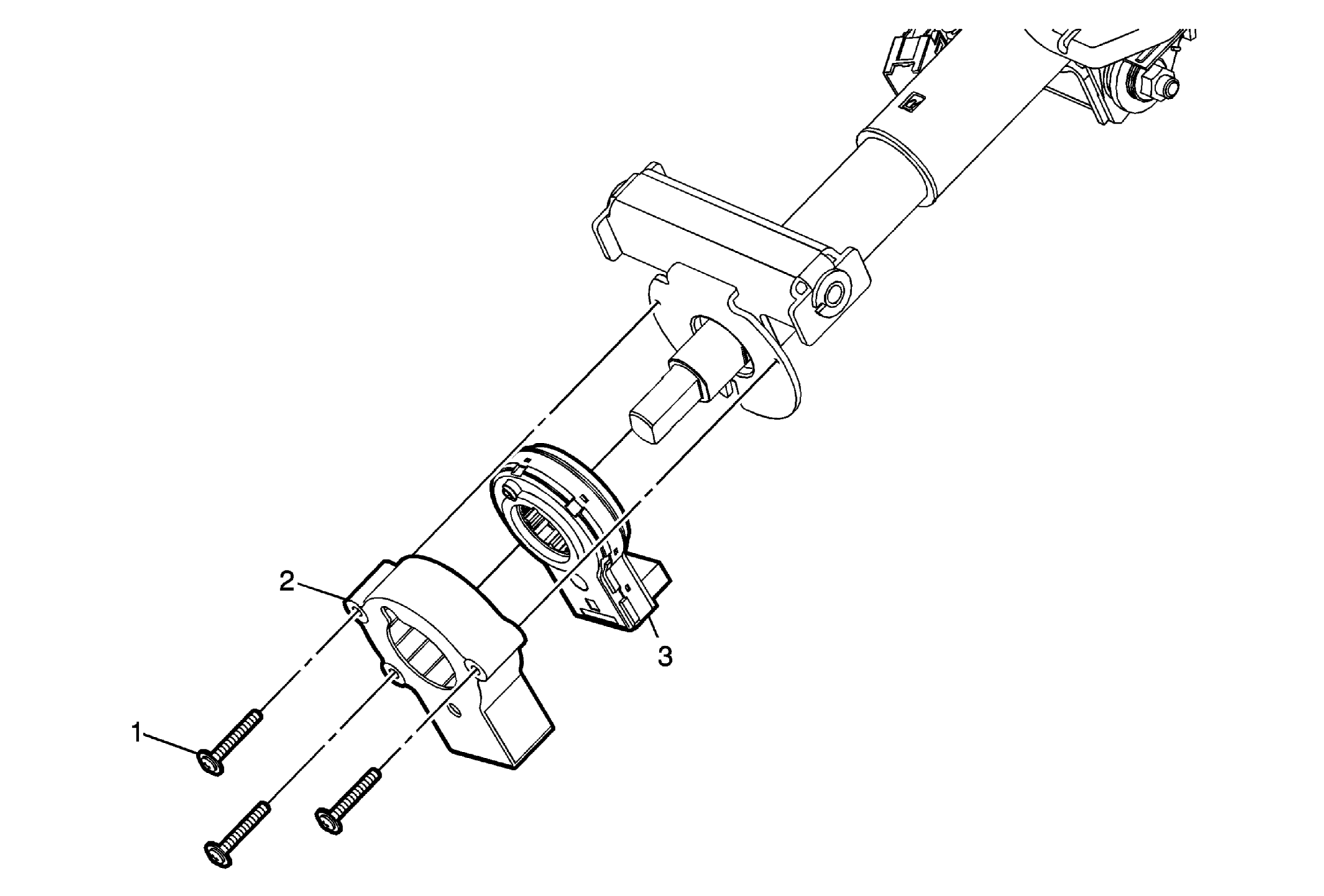

Fig 1: Steering Angle Sensor Replacement (HP5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the steering column. Refer to Steering Column Replacement .
1	Steering Angle Sensor Cover Bolt (Qty: 3)
2	Steering Angle Sensor Cover
3	Steering Angle Sensor Procedure Disconnect any electrical connectors as needed. A new steering angle sensor will come with a pin installed in the sensor and will not need to be centered. DO NOT remove the pin until the steering angle sensor is properly seated. If re-centering of the steering angle sensor is needed for any reason, refer to Steering Angle Sensor Centering .
