Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

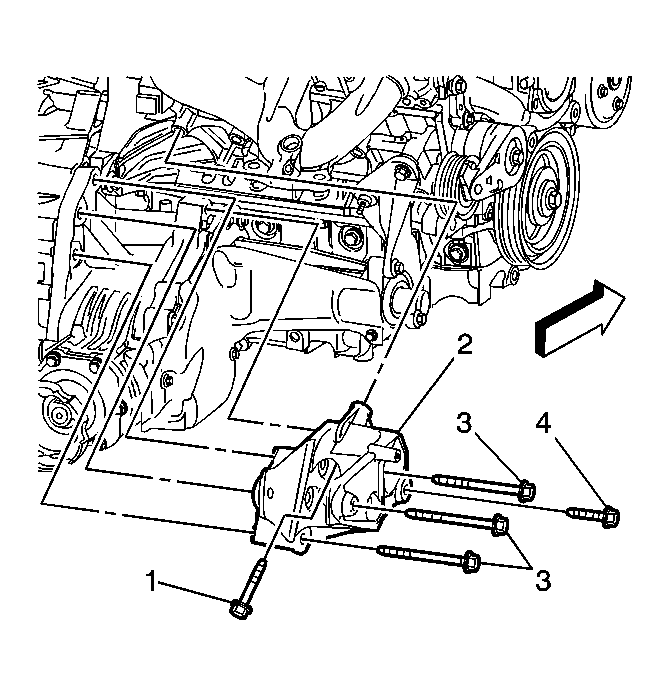

    Fig 1: Rear Transmission Mount Bracket Bolts
    GM1875667Courtesy of GENERAL MOTORS CORP.
  1. Install the rear transmission mount bracket (2).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the rear transmission mount bracket bolts (1 and 4) and tighten to 50 N.m (37 lb ft).
  3. Install the rear transmission mount bracket bolts (3) and tighten to 100 N.m (74 lb ft).

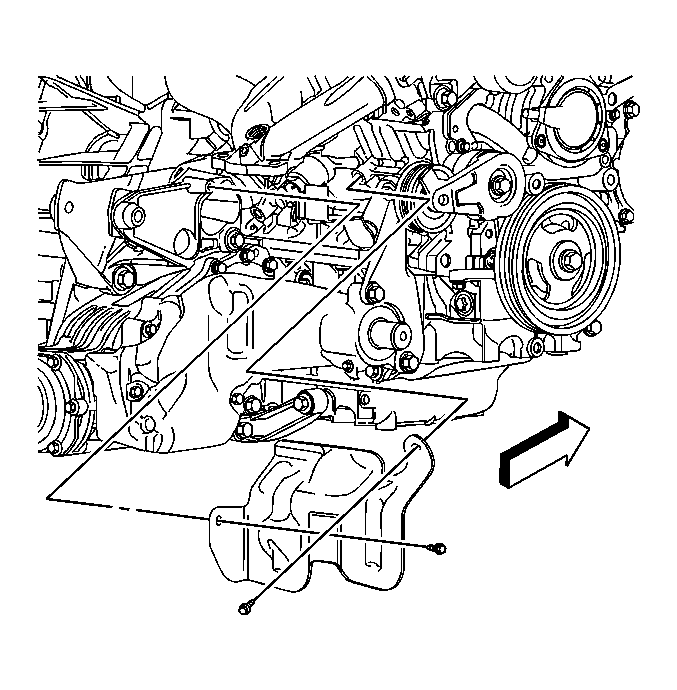

    4. Fig 2: Heat Shield Bolts And Shield
    GM1875669Courtesy of GENERAL MOTORS CORP.
  4. Install the heat shield bolts and shield and tighten the bolts to 10 N.m (89 lb in).
  5. Install the rear transmission mount. Refer to Transmission Rear Mount Replacement (FWD)  or Transmission Rear Mount Replacement (AWD) .
