Transmission Control Lever Knob Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

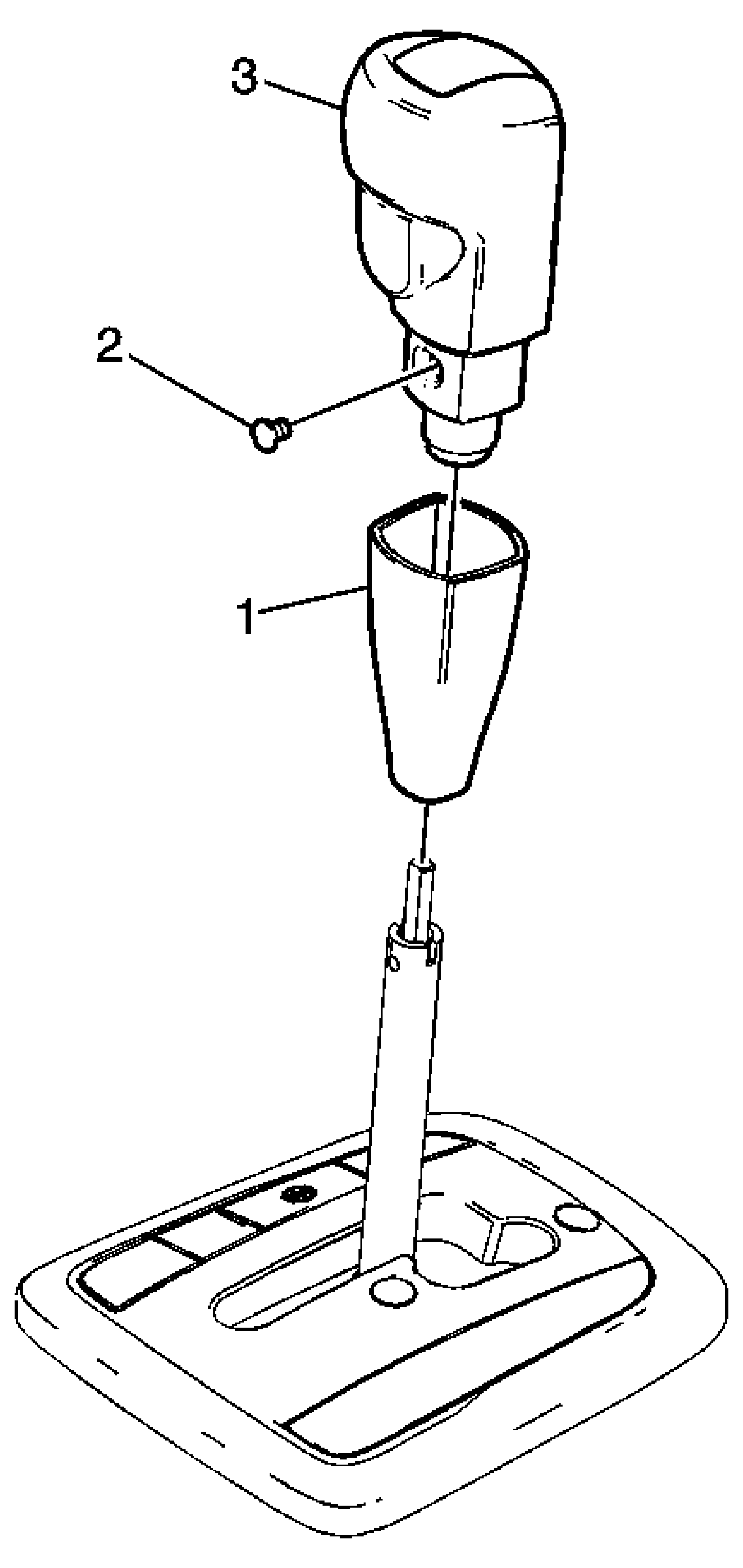

Fig 1: Transmission Control Lever Knob

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Control Lever Knob Bezel Tip: Removal: carefully insert a small flat-bladed tool between the bezel (1) and the shift knob. Apply careful downward pressure to the bezel to separate the bezel from the shift knob. The bezel will drop down approximately 13.0 mm (0.5 in) exposing the shift knob screws (2). Installation: Lift the bezel (1) up to the shift knob until a click sound is heard indicating the bezel is secured to the shift knob.
2	Automatic Transmission Control Lever Knob Screw CAUTION: Refer to Fastener Caution . Tip: Loosen the shift control knob screw approximately 4-5 turns. It is not necessary to fully remove the screws from the shift control knob. Tighten: 1.5 N.m (13 lb in).
3	Automatic Transmission Control Lever Knob
