Torque Converter and Differential Housing Assembly Disassemble
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

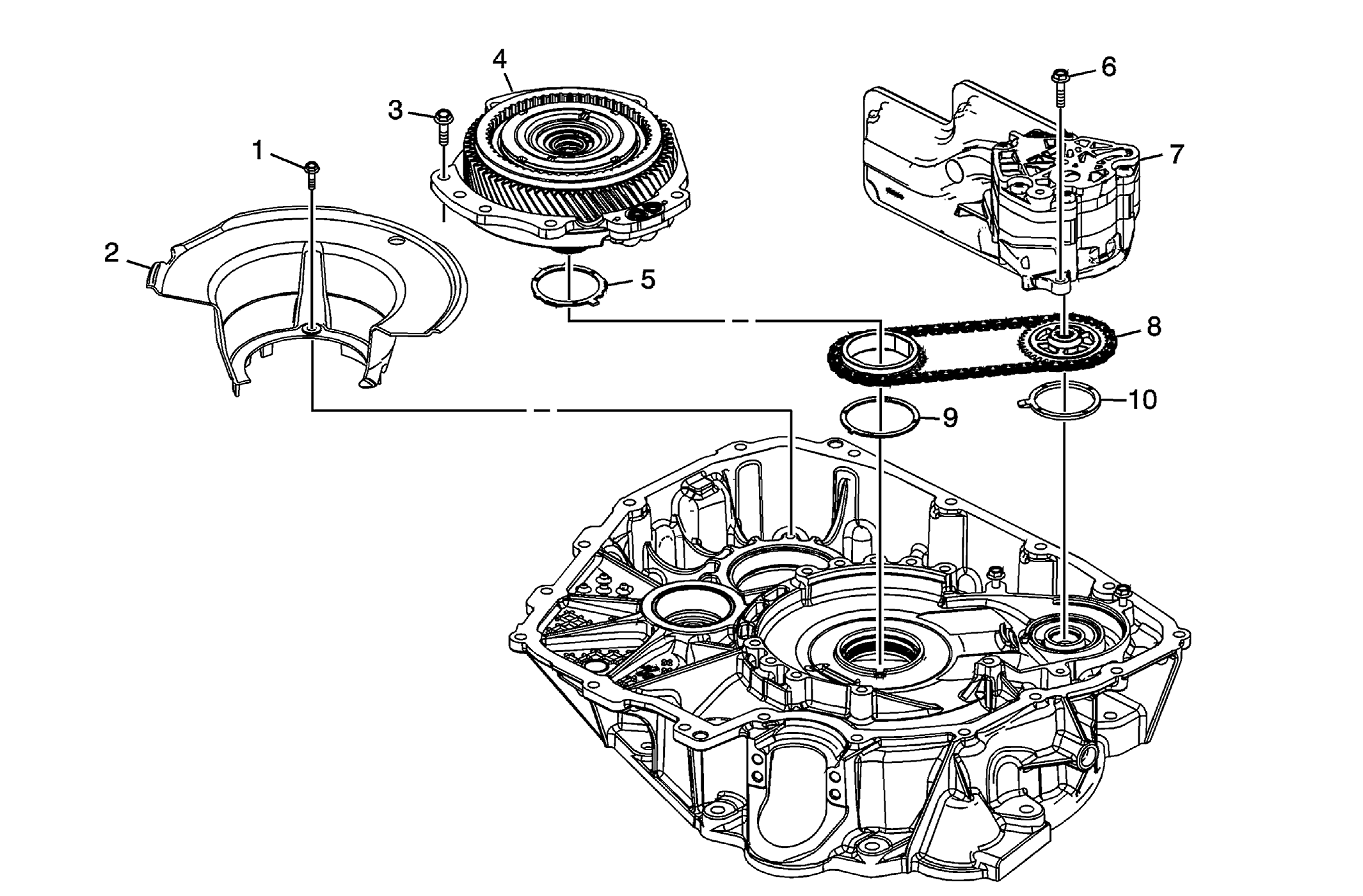

| Callout | Component Name |
|---|---|
| 1 | Front Differential Carrier Baffle Bolt M6 x 25 |
| 2 | Front Differential Carrier Baffle |
| 3 | Front Differential Transfer Drive Gear Support Bolt M8 x 25 (Qty: 9) |
| 4 | Front Differential Transfer Drive Gear Support Assembly |
| 5 | Drive Sprocket Thrust Washer |
| 6 | A/Trans Fluid Pump Bolt M6 x 25 (Qty: 3) |
| 7 | A/Trans Fluid Pump Assembly |
| 8 | Drive Link Assembly Tip: Link and sprockets will be removed as an assembly. |
| 9 | Drive Sprocket Thrust Washer Tip: Drive sprocket thrust washer may be stuck to the torque converter housing. |
| 10 | Driven Sprocket Thrust Washer |
