Lift Plate and Holding Fixture Removal

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

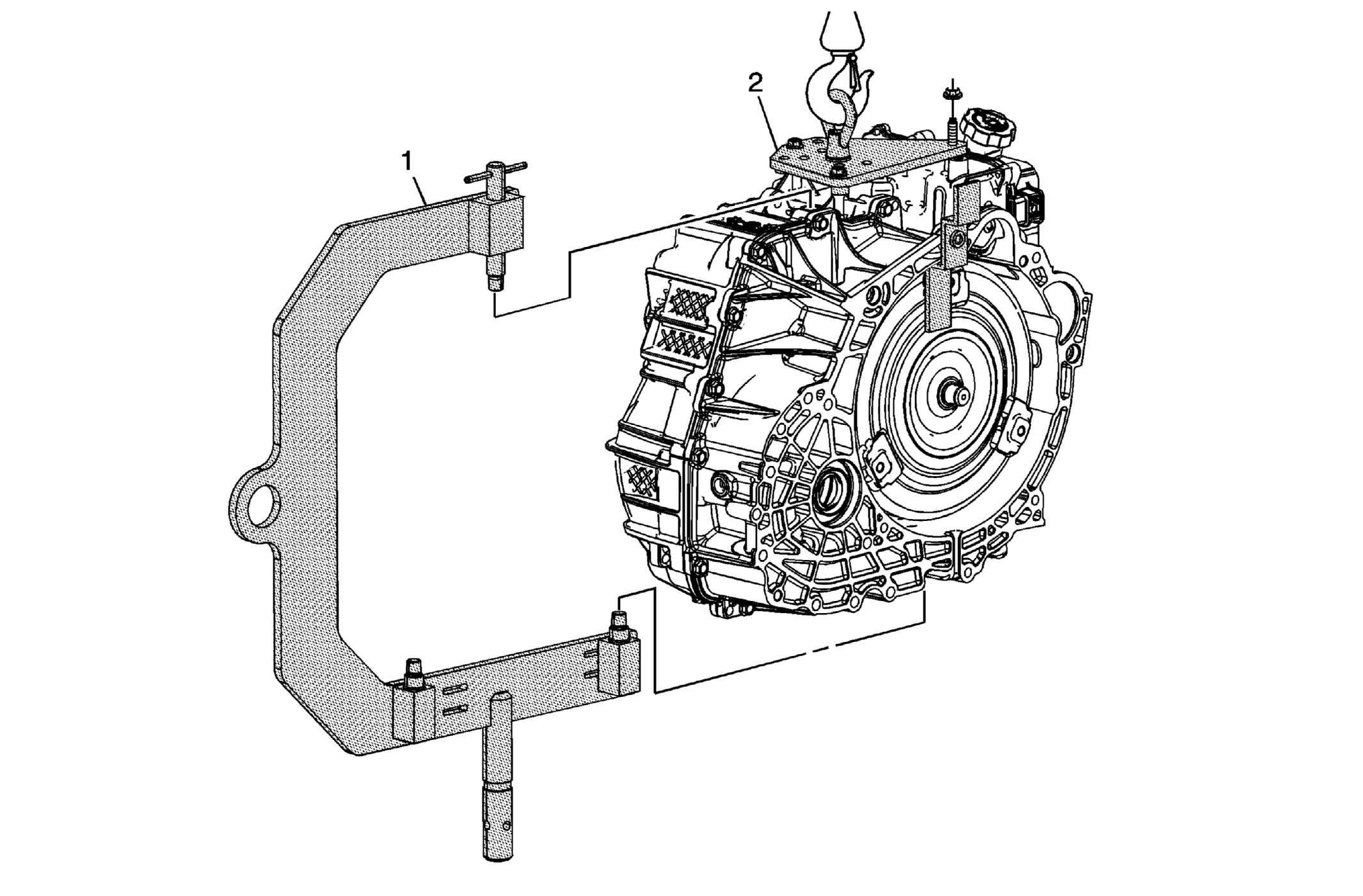

Fig 1: Identifying Lift Plate & Holding Fixture

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J 46625: Transmission Holding Fixture Tip: Raise the transmission in order to remove the holding fixture. For equivalent regional tools, refer to Special Tools .
2	DT-47811-A: Lift Plate Tip: Lower the transmission assembly onto the transmission jack in order to remove the lift plate. For equivalent regional tools, refer to Special Tools .
