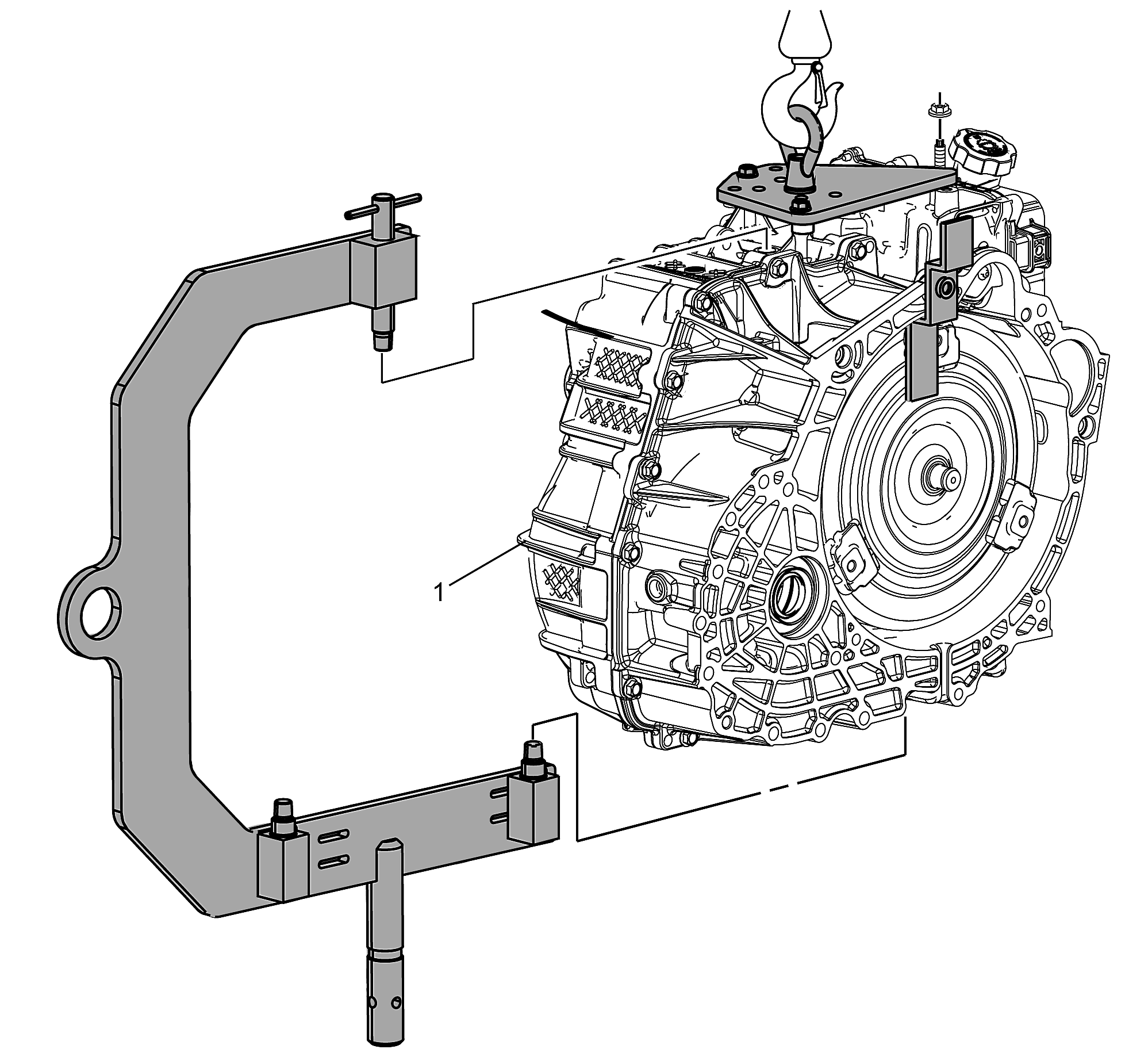

Lift Plate and Holding Fixture Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | DT-47811-A:
Transmission Lift Plate
WARNING:
Handle with care, the transmission assembly weighs over 200 lbs. Bodily injury could occur if not handled properly. Tip: After Installation of lift plate, raise the transmission with an overhead hoist. Tighten: 12 N.m (9 lb ft) Special Tools: DT-47811-A: Transmission Lift Plate For equivalent regional tools, refer to Special Tools . |
| 2 | J-46625:
Transmission Holding Fixture
CAUTION:
Refer to Fastener Caution
. Tip: Adjust mounting block on fixture to match bosses on case, then tighten bolts to: Tighten: 13 N.m (10 lb ft) Special Tools: J-46625: Transmission Holding Fixture For equivalent regional tools, refer to Special Tools . |
