Input, Reaction, and Output Carrier Removal
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

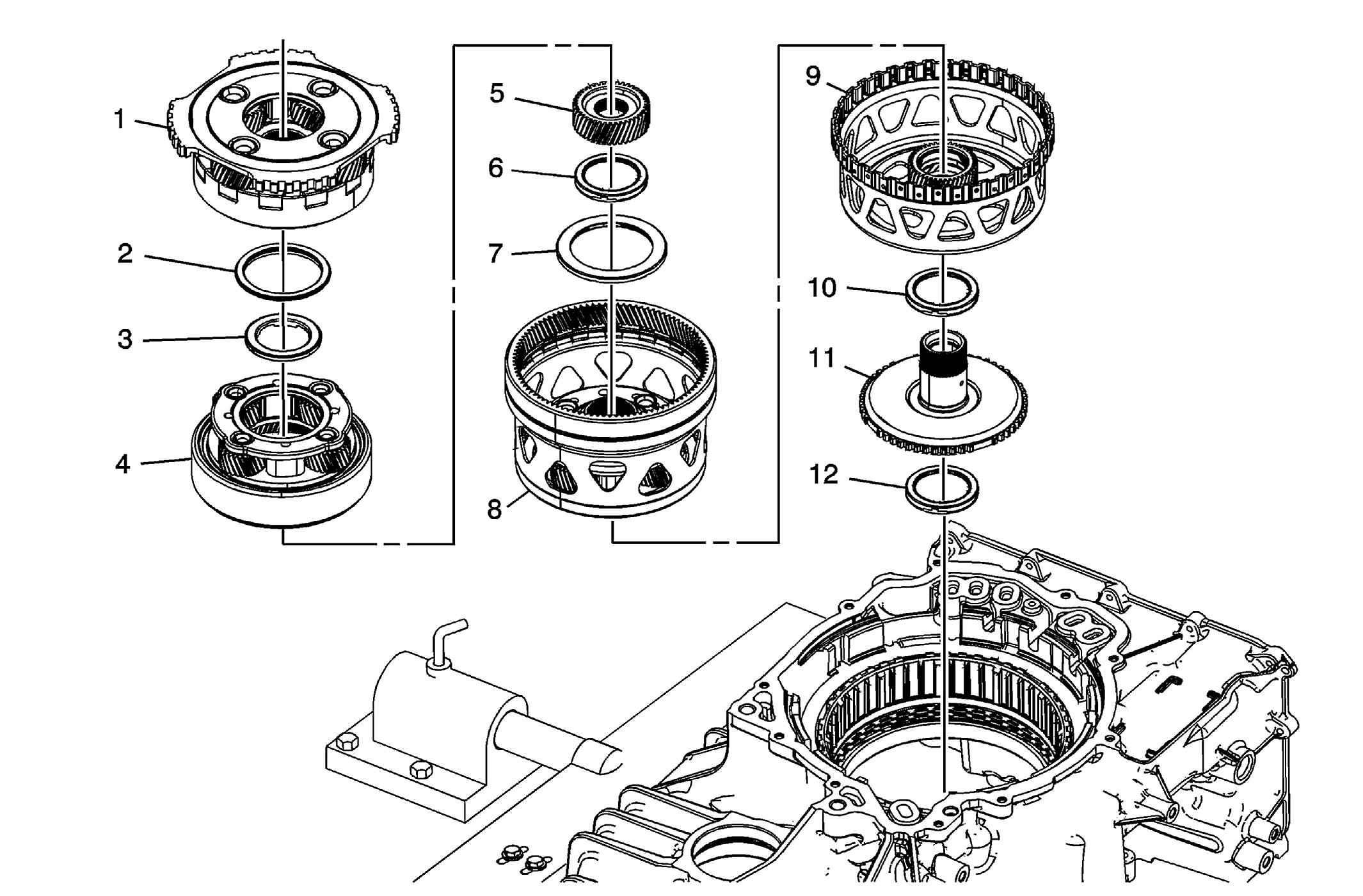

| Callout | Component Name |
|---|---|
| 1 | Reaction (w/Input Internal Gear) Carrier Assembly |
| 2 | Input Carrier Thrust Bearing Assembly |
| 3 | Input Sun Gear Thrust Bearing Assembly |
| 4 | Input (w/Output Internal Gear) Carrier Assembly |
| 5 | Input Sun Gear |
| 6 | Output Carrier Thrust Bearing Assembly |
| 7 | Output Carrier Thrust Bearing Assembly |
| 8 | Output Carrier Assembly |
| 9 | Output Sun Gear Assembly |
| 10 | Front Differential Transfer Drive Gear Input Hub Bearing Assembly |
| 11 | Output Carrier Transfer Drive Gear Hub Assembly |
| 12 | Output Carrier Transfer Drive Gear Hub Bearing Assembly Tip: The bearing may be stuck to the support assembly. |
