Fluid Passage Tube Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Fluid Passage Tube Installation

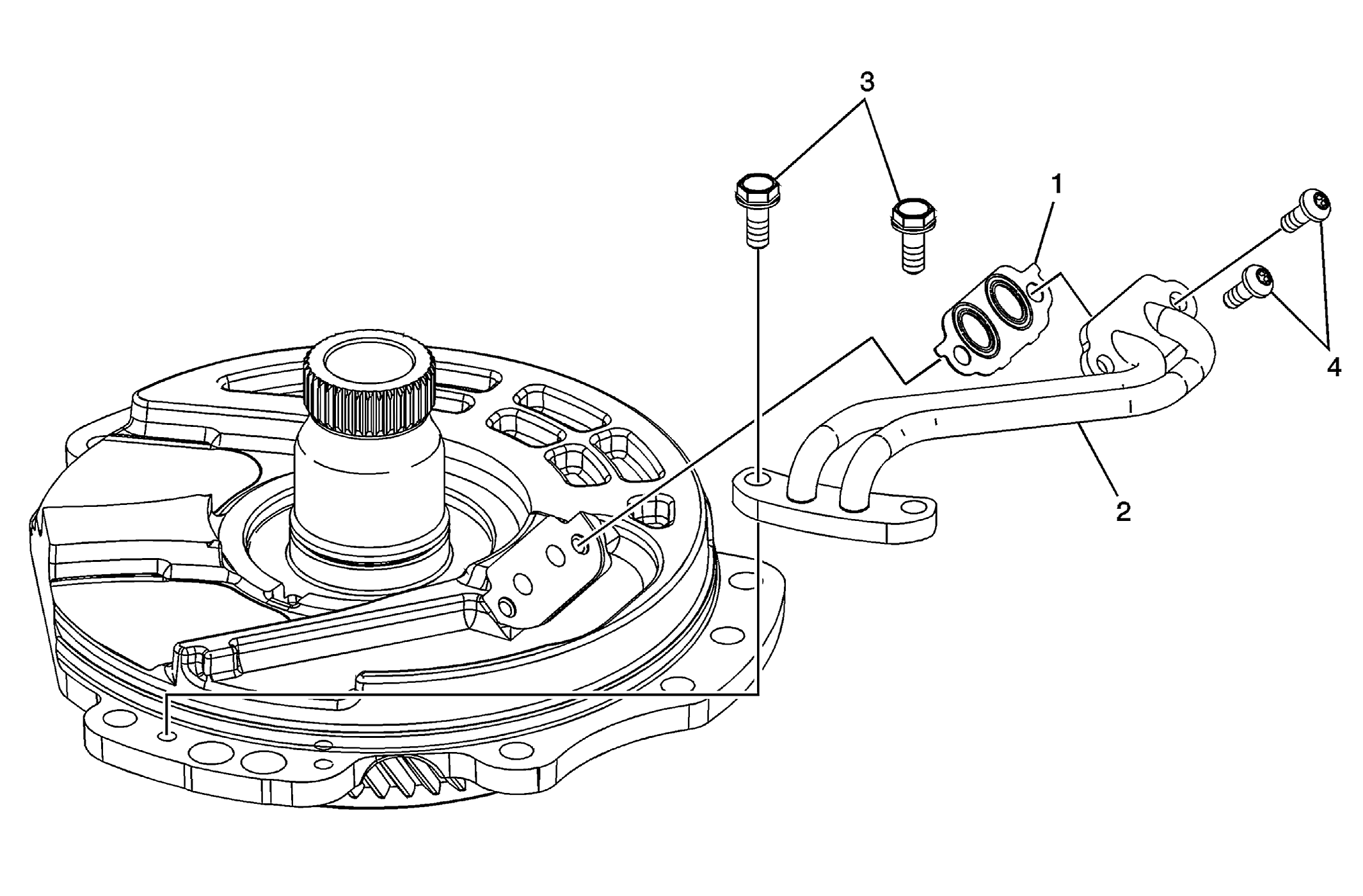

| Callout | Component Name |
|---|---|
| 1 | Front Differential Transfer Drive Gear Support Fluid Passage Tube Gasket |
| 2 | Fluid Passage Tube Assembly |
| 3 | Front Differential Transfer Drive Gear Fluid Passage Tube Bolt M6 x 15 (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten: 12 N.m (106 lb in) |
| 4 | Front Differential Transfer Drive Gear Fluid Passage Tube Bolt M5 x 12 (Qty: 2) Tighten: 7 N.m (62 lb in) |
