Front Differential Carrier Bearing Replacement: Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

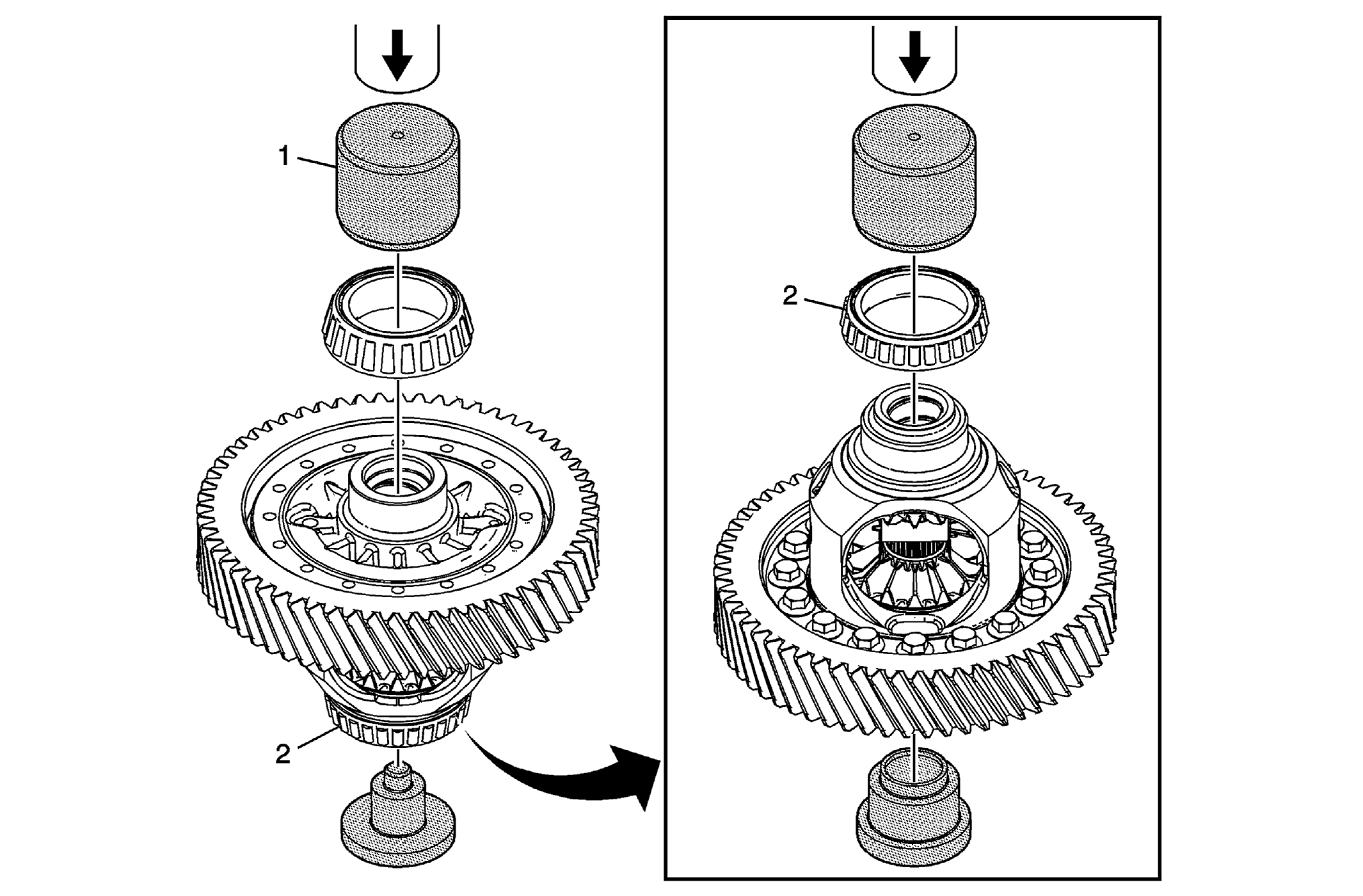

Fig 1: View Of Front Differential Carrier Bearing

Courtesy of GENERAL MOTORS CORP.

Installation

Callout	Component Name
1	Front Differential Carrier Bearing Assembly CAUTION: Pressing against the bearing assembly can damage the bearing and cause premature bearing failure. Special Tools: DT-47928: Bearing Installer For equivalent regional tools, refer to Special Tools .
2	Front Differential Carrier Bearing Assembly CAUTION: Pressing against the bearing assembly can damage the bearing and cause premature bearing failure. Special Tools: DT-47928: Bearing Installer For equivalent regional tools, refer to Special Tools .
