Control Solenoid (w/Body and TCM) Valve Assembly Removal
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Control Solenoid (w/Body and TCM) Valve Assembly Removal

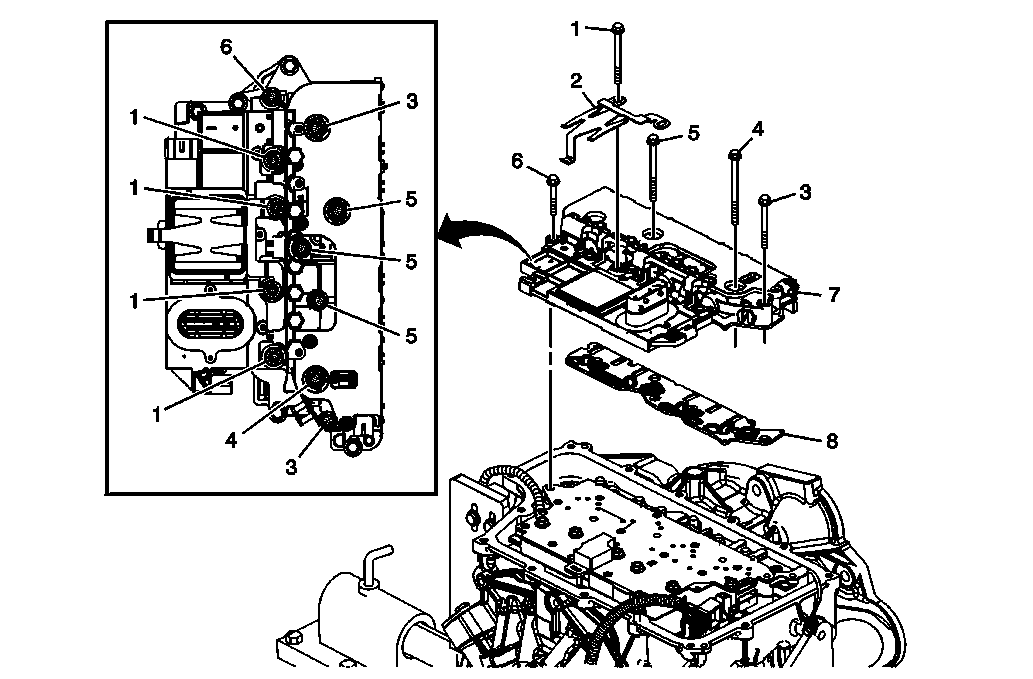

| Callout | Component Name |
|---|---|
| 1 | Control Valve Body Bolt M6 x 80 (Qty: 4) |
| 2 | Control Solenoid Valve Spring |
| 3 | Control Valve Body Bolt M6 x 65 (Qty: 2) |
| 4 | Control Valve Body Bolt M6 x 42 (Qty: 1) |
| 5 | Control Valve Body Bolt M6 x 95 (Qty: 3) |
| 6 | Control Valve Body Bolt M6 x 55 (Qty: 1) |
| 7 | Control Solenoid (w/Body and TCM) Valve Assembly |
| 8 | Control Solenoid Valve Assembly Filter Plate
CAUTION:
Use care when removing or installing the filter plate assembly. A broken or missing retaining tab may not adequately secure the filter plate to the control solenoid valve assembly, resulting in possible damage or contamination. Tip:
|
